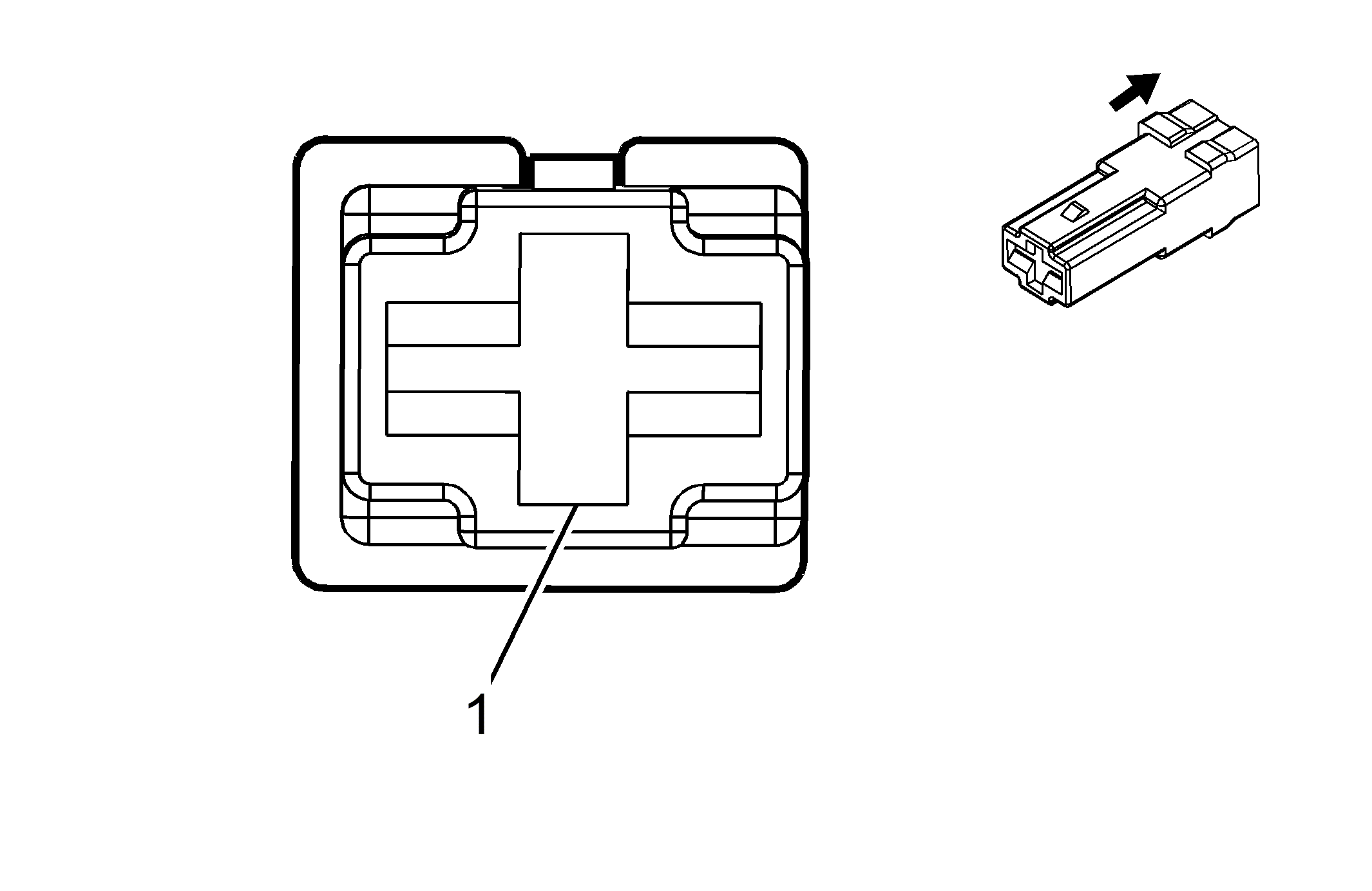

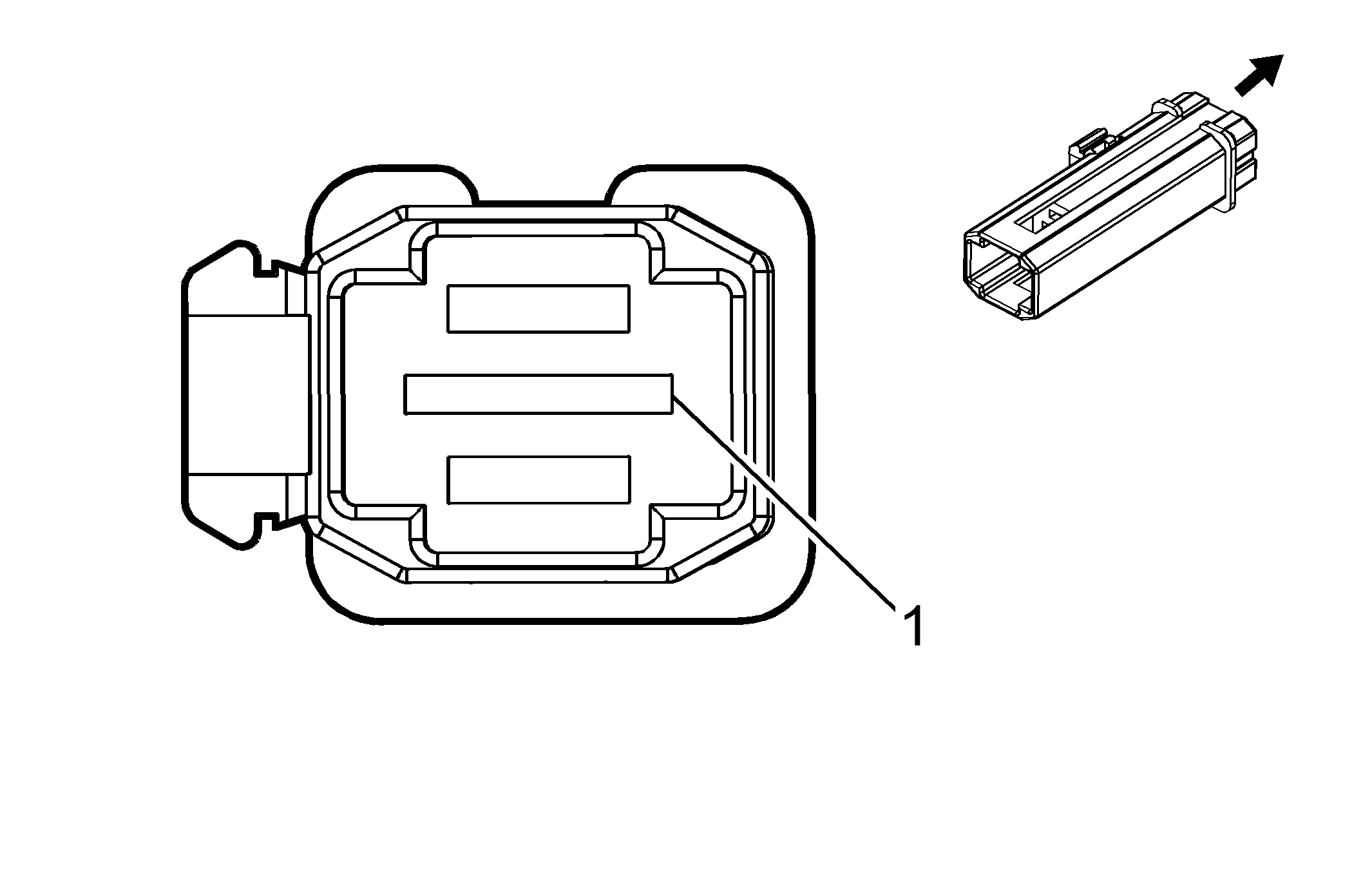

X902 Liftgate Harness to Liftgate Harness
|
|
|
Connector Part Information
- Harness Type: Liftgate Extension
- OEM Connector: 929029-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F (BK)
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 929030-1
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 1-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2 |
BK |
1150 |
I |
- |
Ground |
1 |
2 |
BK |
1150 |
II |
- |
