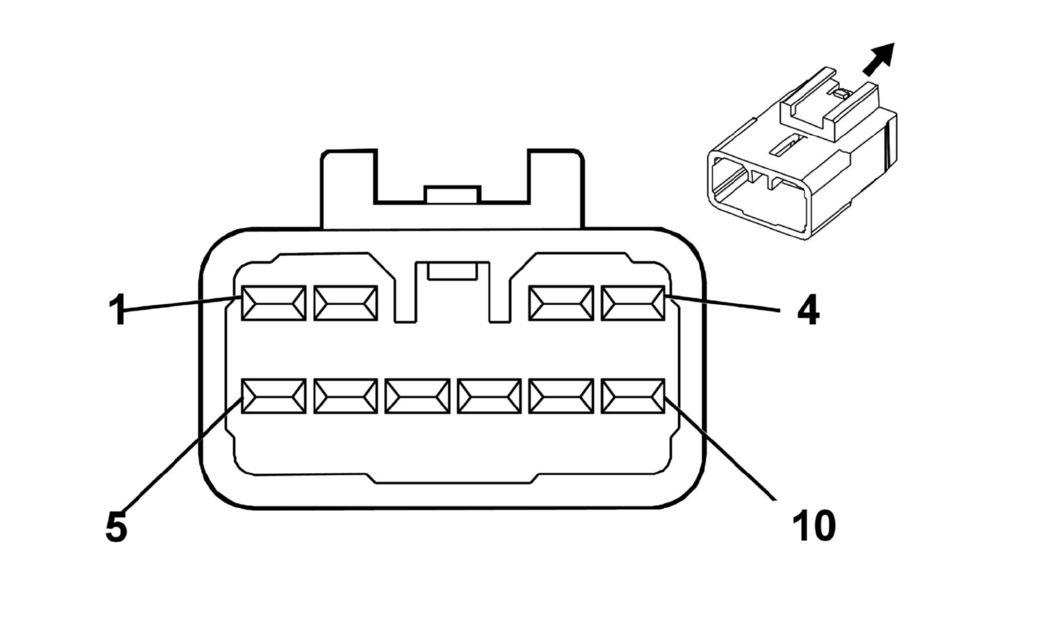

X900 Liftgate Harness to Body Harness
|
|
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: MG651056
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 10-Way F 090 II Series (NA)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: MG641059
- Service Connector: 13584404
- Description: 10-Way M 090 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| IV |
13575606 |
J-35616-19 (BK) |
J-38125-553 |
7114-4020 |
22 |
E |
C |
| V |
13575606 |
J-35616-19 (BK) |
J-38125-553 |
7114-4021 |
23 |
2 |
A |
| VI |
13584575 |
J-35616-19 (BK) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2 |
BN/VT |
293 |
III |
- |
Rear Defog Element Control |
1 |
2 |
BN/VT |
293 |
VI |
- |
| 2 |
0.5 |
VT/WH |
5065 |
I |
TT9 |
Stop Lamp Relay Coil Control |
2 |
0.5 |
VT/WH |
5065 |
IV |
- |
| 3 |
0.5 |
GN/YE |
6846 |
I |
EF7/Z49 |
Rear License Lamp Control |
3 |
0.5 |
GN/YE |
6846 |
IV |
- |
| 4 |
0.5 |
VT/GY |
1303 |
I |
- |
Lift Gate Ajar Switch Signal (1) |
4 |
0.35 |
VT/GY |
1303 |
IV |
- |
| 5 |
0.5 |
GY |
295 |
I |
A91 |
Door Lock Actuator Lock Control |
5 |
0.5 |
GY |
295 |
IV |
- |
| 6 |
0.5 |
BN/YE |
294 |
I |
A91 |
Door Lock Actuator Unlock Control |
6 |
0.5 |
BN/YE |
294 |
IV |
- |
| 7 |
1 |
BU |
393 |
II |
CD6 |
Rear Window Wiper Motor Control |
7 |
1 |
BU |
393 |
V |
CD6 |
| 8 |
1 |
RD/VT |
1640 |
II |
CD6 |
Battery Positive Voltage |
8 |
1 |
RD/VT |
1640 |
V |
CD6 |
| 9 |
0.5 |
BK |
1250 |
I |
UVC |
Ground |
9 |
0.5 |
BK |
1250 |
IV |
- |
| 10 |
2 |
BK |
1150 |
III |
- |
Ground |
10 |
2 |
BK |
1150 |
VI |
- |
