Front Seat Belt Retractor Replacement

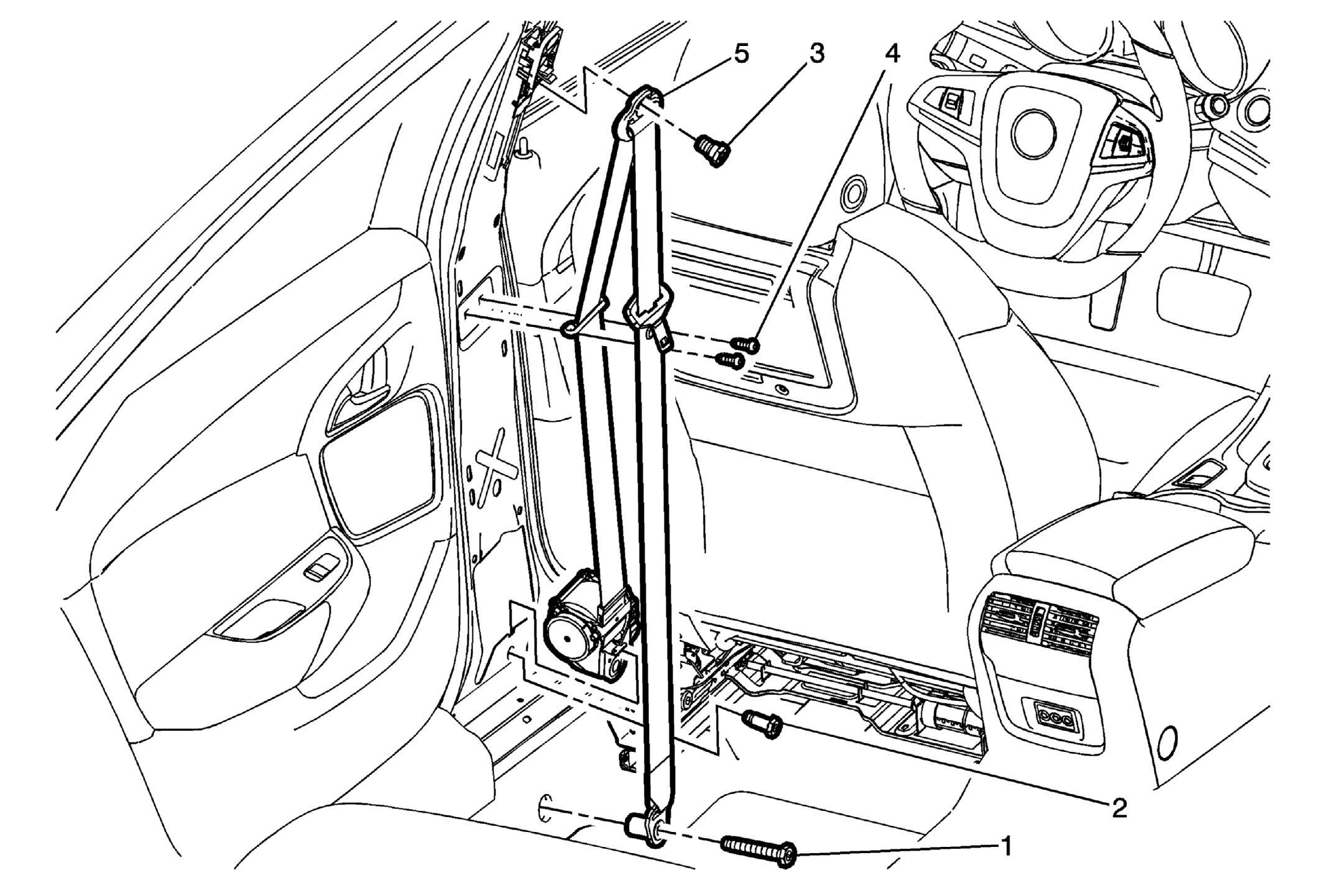

Fig 1: Front Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement . Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
1	Front Seat Belt Retractor Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Retractor Bolt - Lower Tighten 45 N.m (33 lb ft)
3	Front Seat Belt Retractor Bolt - Upper Tighten 45 N.m (33 lb ft)
4	Front Seat Belt Retractor Fastener (Qty: 2)
5	Front Seat Belt Retractor
