Center Pillar Lower Trim Panel Replacement

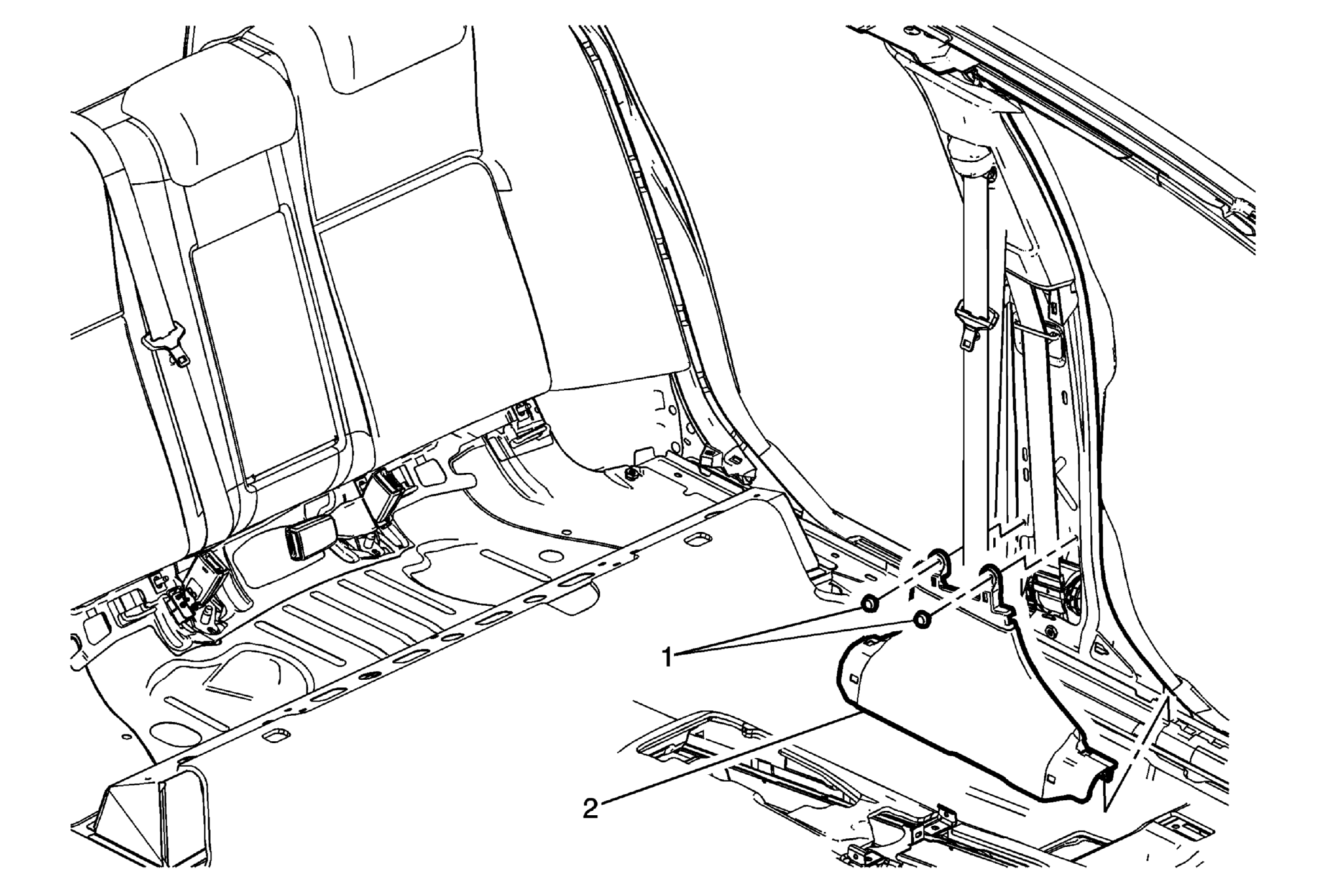

Fig 1: Center Pillar Lower Trim Panel

GM3243462

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the center pillar center trim panel assembly. Refer to Center Pillar Center Trim Panel Replacement .
Remove the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement .

1

Center Pillar Lower Trim Panel Retainer (Qty: 2)

2

Center Pillar Lower Trim Panel Assembly
