Front Seat Cushion Outer Finish Cover Replacement

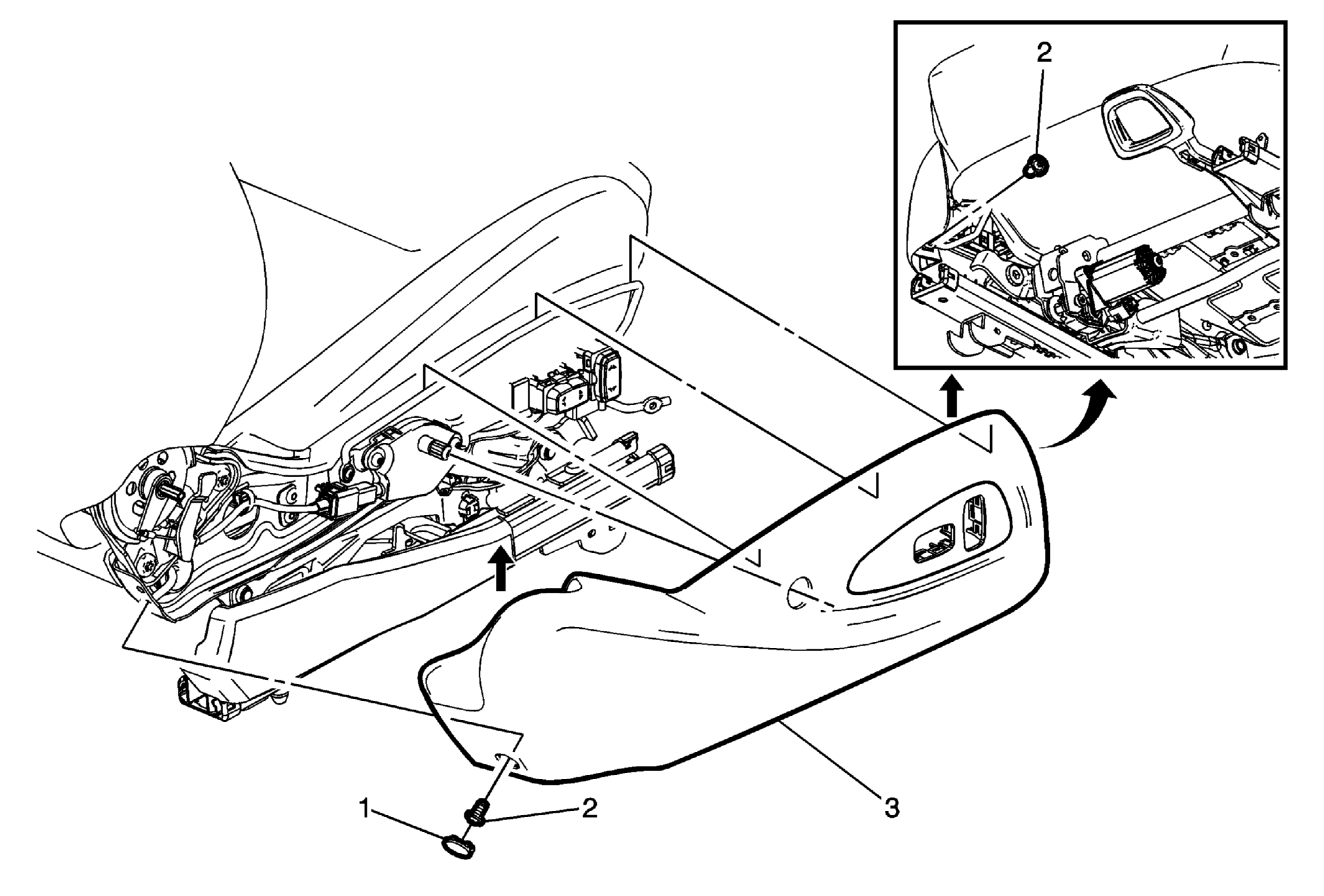

Fig 1: Front Seat Cushion Outer Finish Cover
GM3137361Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front seat back recliner handle. Refer to Front Seat Back Recliner Handle Replacement (2-Way Manual and 4-Way Hybrid) .
  2. Remove the front seat adjuster switch knobs, if equipped. Refer to Driver or Passenger Seat Adjuster Switch Replacement (8-Way Power) .
1 Front Seat Cushion Outer Finish Cover Cap
2 Front Seat Cushion Outer Finish Cover Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 Driver or Passenger Seat Cushion Outer Finish Panel

Procedure

  1. Pull back the toe kick cover to gain access to the rear fastener.
  2. Remove the outer finish panel by pulling upward near the retainer clip locations.
  3. Disconnect the electrical connectors.
  4. If replacing the finish panel, transfer components as necessary.
