Front Seat Back Recliner Handle Replacement (2-Way Manual and 4-Way Hybrid)

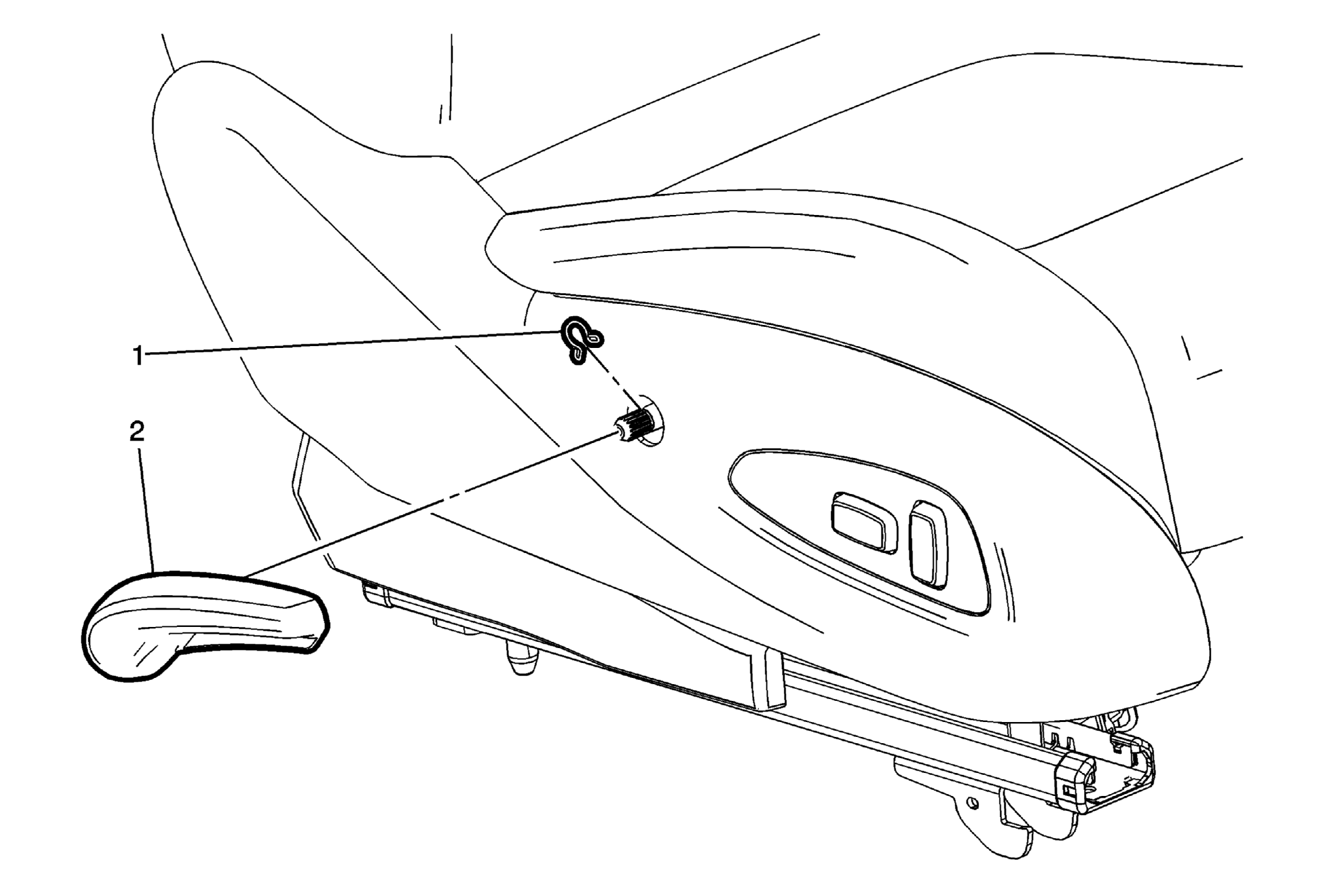

Fig 1: Front Seat Back Recliner Handle (2-Way Manual and 4-Way Hybrid)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver or Passenger Seat Recliner Handle Clip
2	Driver or Passenger Seat Recliner Handle Procedure  Use a flat-bladed tool to release the recliner handle from the front seat cushion outer finish cover.
