Driver or Passenger Seat Adjuster Switch Replacement (8-Way Power)

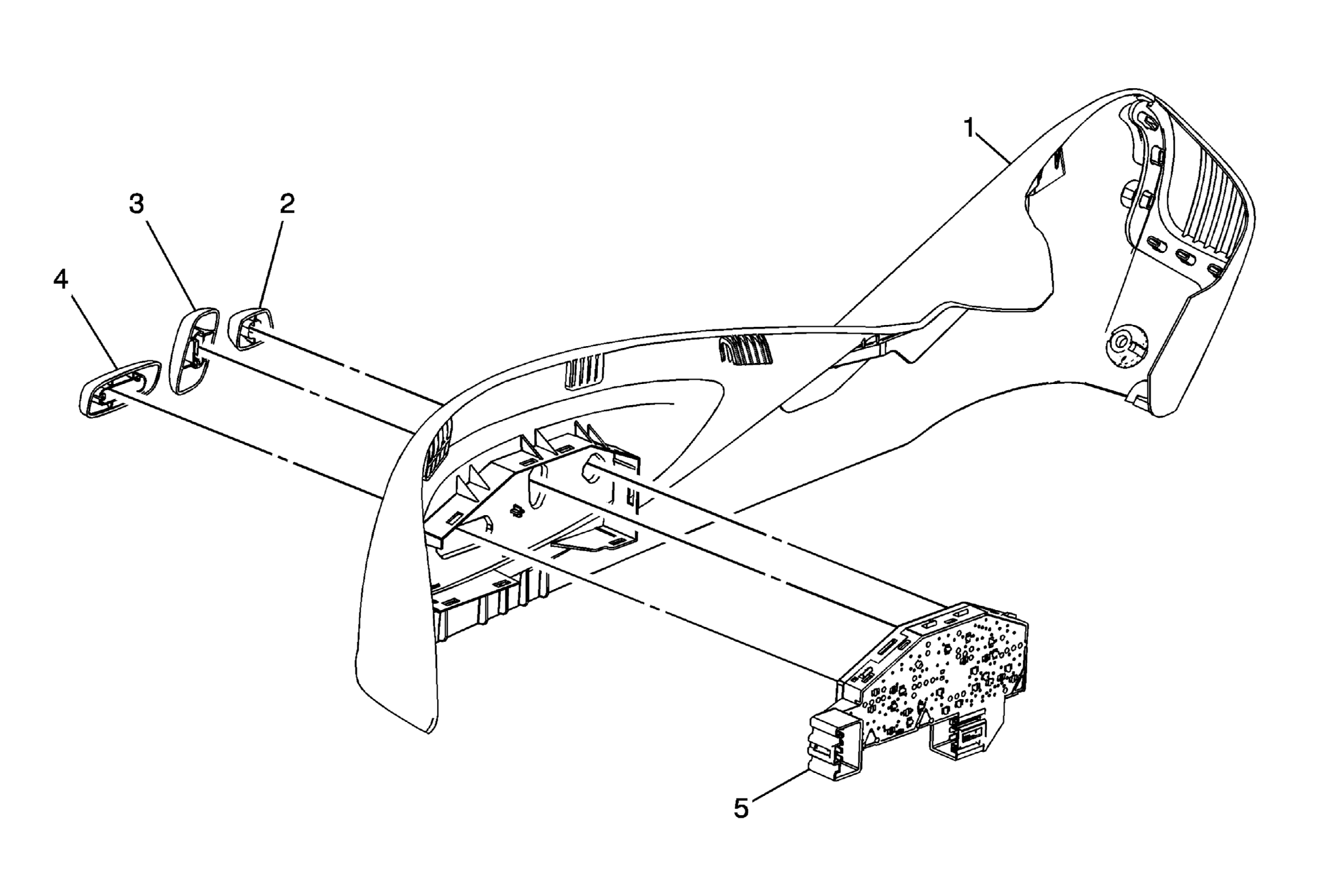

Fig 1: Driver or Passenger Seat Adjuster Switch (8-Way Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat cushion outer finish panel. Refer to Front Seat Cushion Outer Finish Cover Replacement .
1	Front Seat Cushion Outer Finish Cover
2	Front Seat Lumbar Switch Knob
3	Front Seat Recliner Knob
4	Front Seat Adjuster Knob
5	Driver or Passenger Seat Adjuster Switch Procedure  Use a flat-bladed tool to release the switch from the finish cover.
