Rocker Panel Molding Replacement

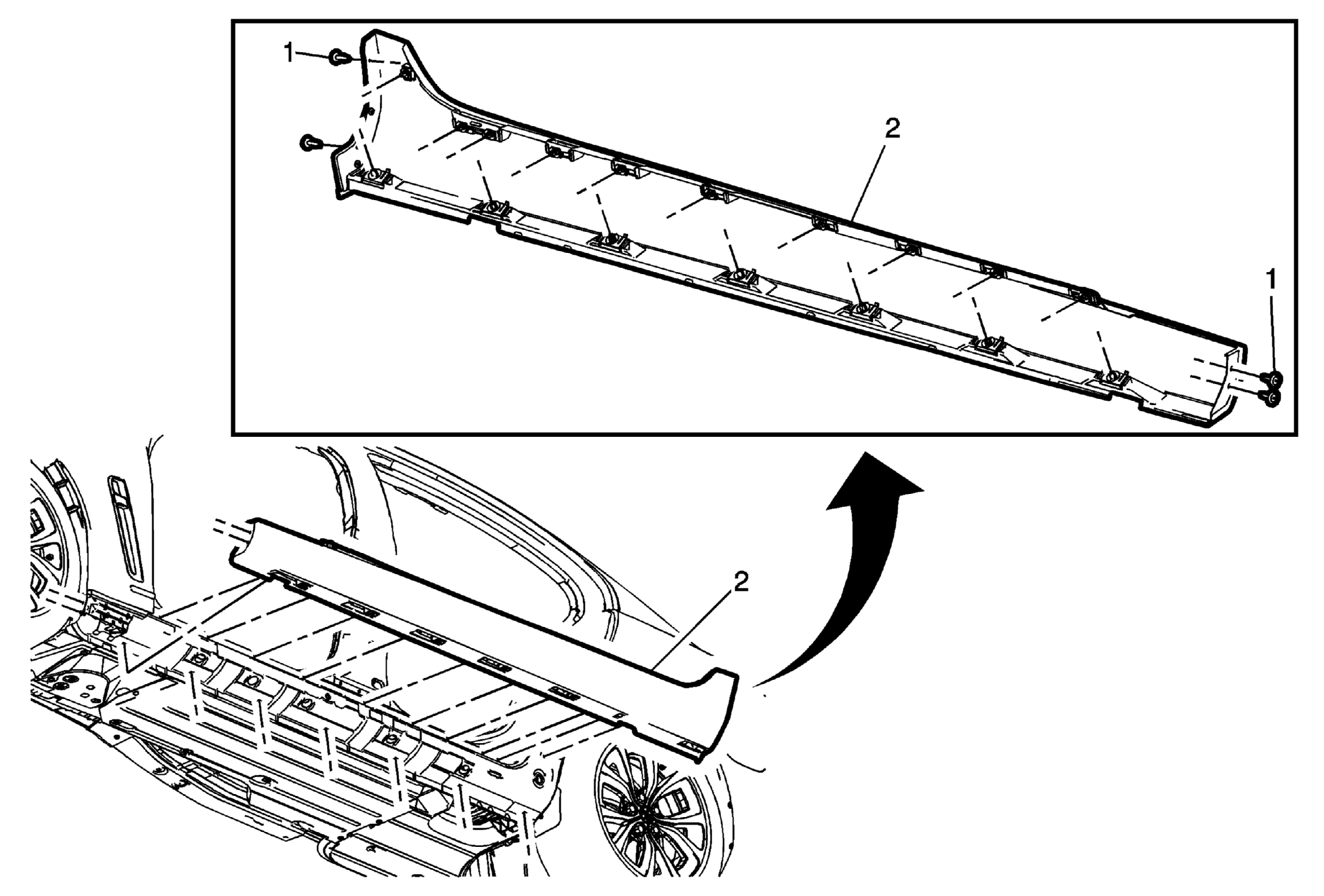

Fig 1: Rocker Panel Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front and rear side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement , and Rear Side Door Sill Trim Plate Replacement .
1	Rocker Panel Molding Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rocker Panel Molding Procedure From the bottom edge firmly pull down the rocker panel molding (7 retainers) from the body side outer panel. From the top edge firmly pull out the rocker panel molding (10 retainers) from the body side outer panel and remove from the vehicle.

Callout

Component Name

Preliminary Procedure
Remove the front and rear side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement , and Rear Side Door Sill Trim Plate Replacement .

Rocker Panel Molding Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rocker Panel Molding

Procedure

From the bottom edge firmly pull down the rocker panel molding (7 retainers) from the body side outer panel.
From the top edge firmly pull out the rocker panel molding (10 retainers) from the body side outer panel and remove from the vehicle.
