Rear Side Door Sill Trim Plate Replacement

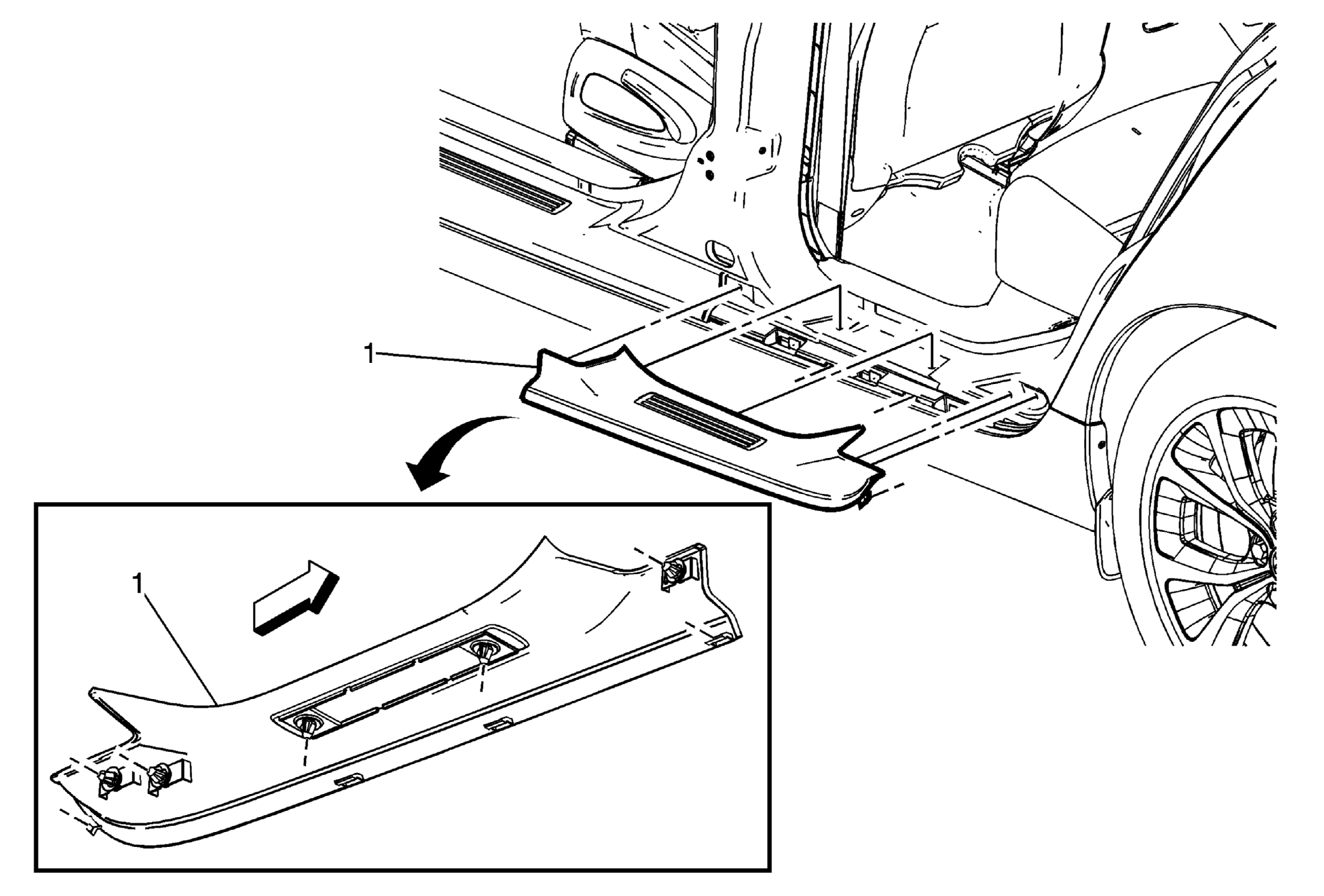

Fig 1: Rear Side Door Sill Trim Plate

GM3287219

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Open rear side door.

1

Rear Side Door Sill Trim Plate

Procedure

With a trim type release tool release the top 2 retainers first.
Then release the most forward retainer and then the 2 rearward retainers.
Grasp the rear side door sill trim plate at both ends and pull up and out to release the 4 bottom locator tabs.
