Front Side Door Window Frame Cover Replacement

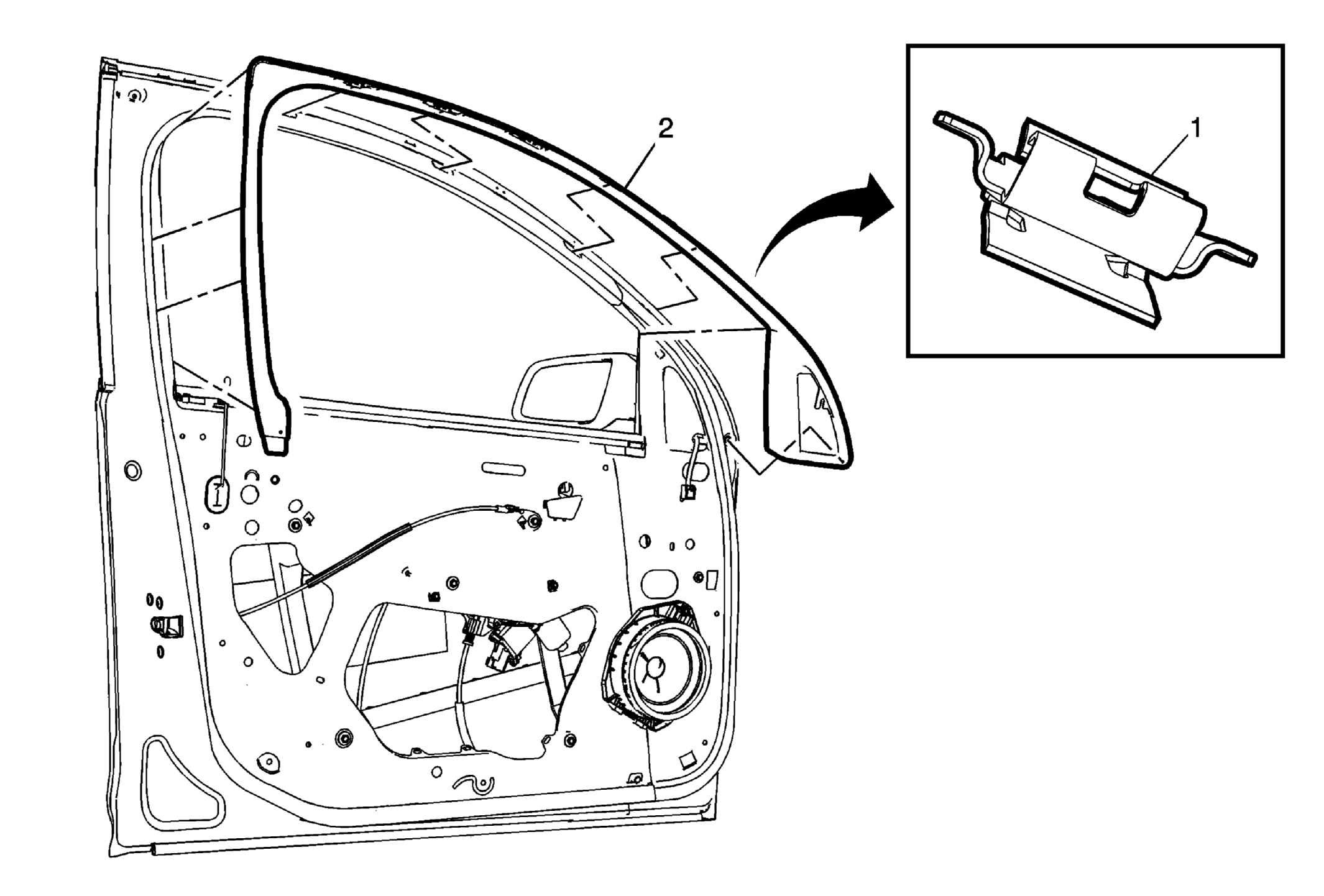

Fig 1: Front Side Door Window Frame Cover
GM3239040Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door weatherstrip. Refer to Front Side Door Weatherstrip Replacement - Door Side .
  2. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1 Front Side Door Window Frame Cover Clip (Qty: 8)

Procedure

  1. Open the front side door.
  2. Using a suitable tool, remove the front side door window frame cover clips from around the door.
2 Front Side Door Window Frame Cover
NOTE:

Inspect the door for proper operation before installing the door trim.
