Front Side Door Trim Replacement

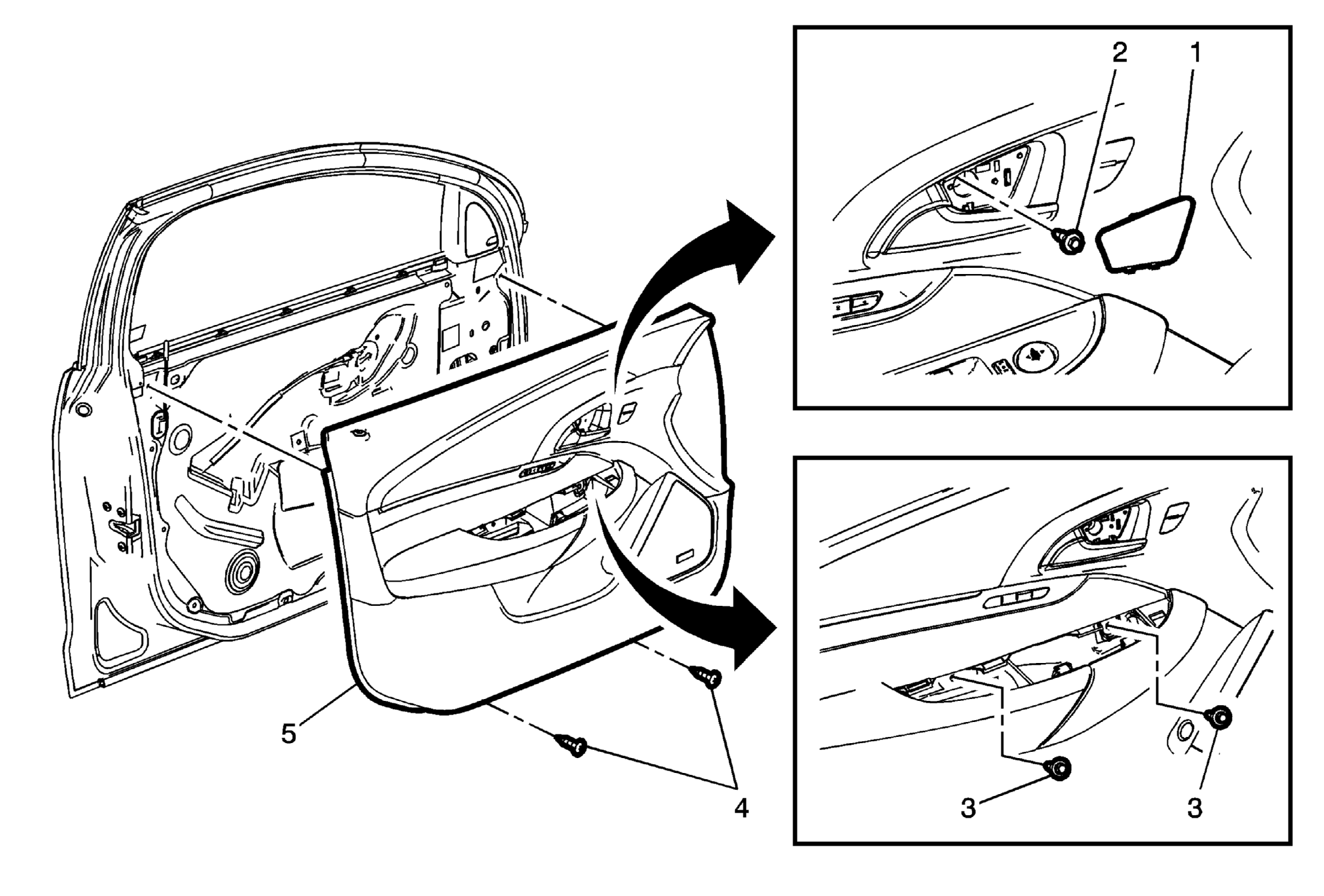

Fig 1: Front Side Door Trim & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate - driver side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side .
1	Front Side Door Inside Handle Bolt Cap Procedure Use a suitable tool to remove front side door inside handle bolt cap.
2	Front Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Side Door Armrest Pull Cup Fastener (Qty: 2) Tighten 2.5 N.m (22 lb in)
4	Front Side Door Trim Panel Fastener (Qty: 2) Tighten 2.5 N.m (22 lb in)
5	Front Side Door Trim Assembly Procedure Use the appropriate plastic trim tool to disengage clips from bottom to top of door trim panel in cross car direction. Plastic clips on the back of door trim panel must be replaced each time door trim panel is removed and put back on. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector, if equipped.
