Front Fender Replacement

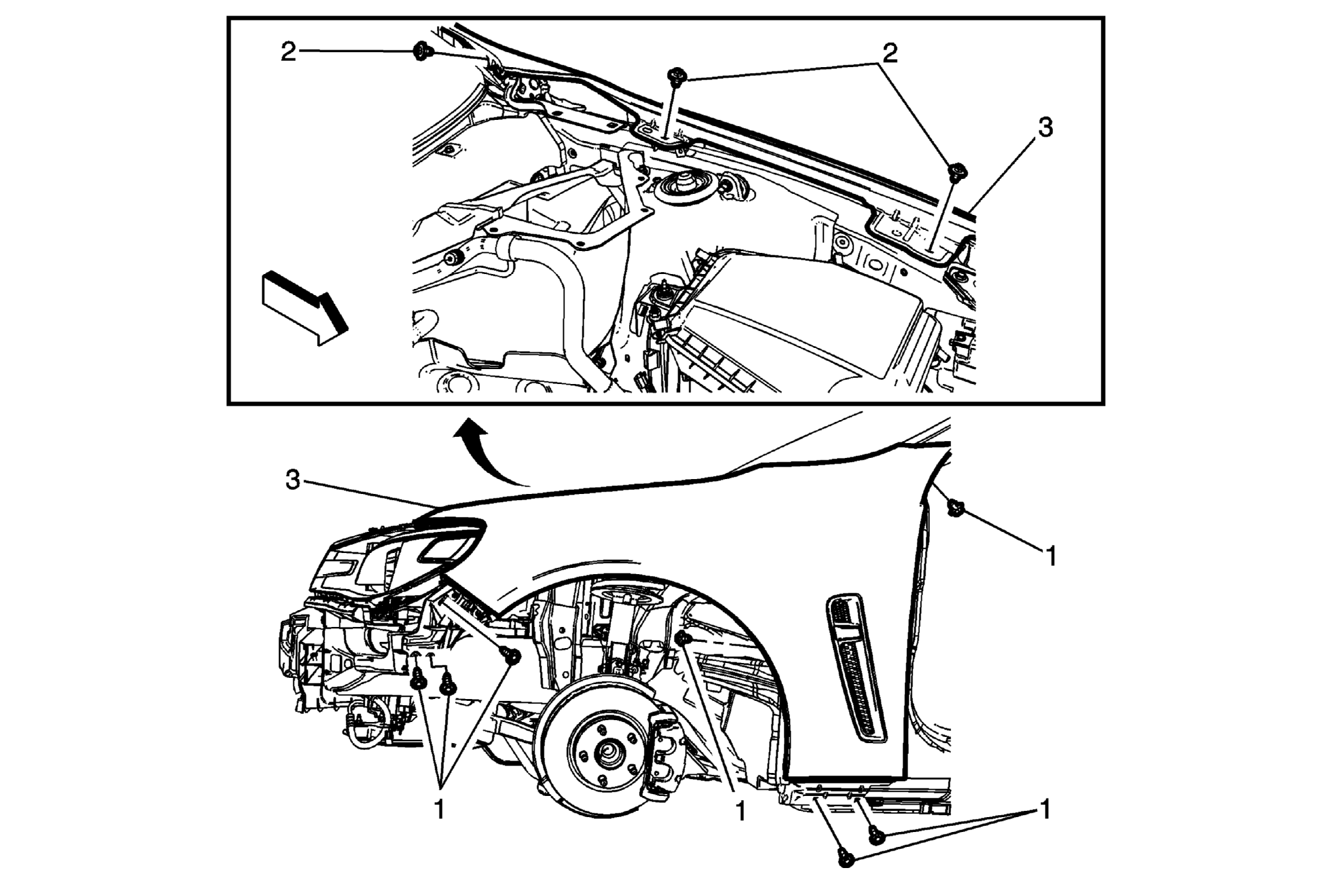

Fig 1: Front Fender

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the rocker panel. Refer to Rocker Panel Molding Replacement . Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Passenger Side)Air Inlet Grille Panel Replacement (Driver Side) .
1	Front Fender Bolt (Qty 7) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Upper Bolt (Qty 3) Tighten 9 N.m (80 lb in)
3	Front Fender Procedure Transfer parts as needed. NOTE: When reusing the fender, you need to apply touch up paint the location of the old baffle seal to prevent corrosion from developing on the fender.
