Rear Side Door Replacement

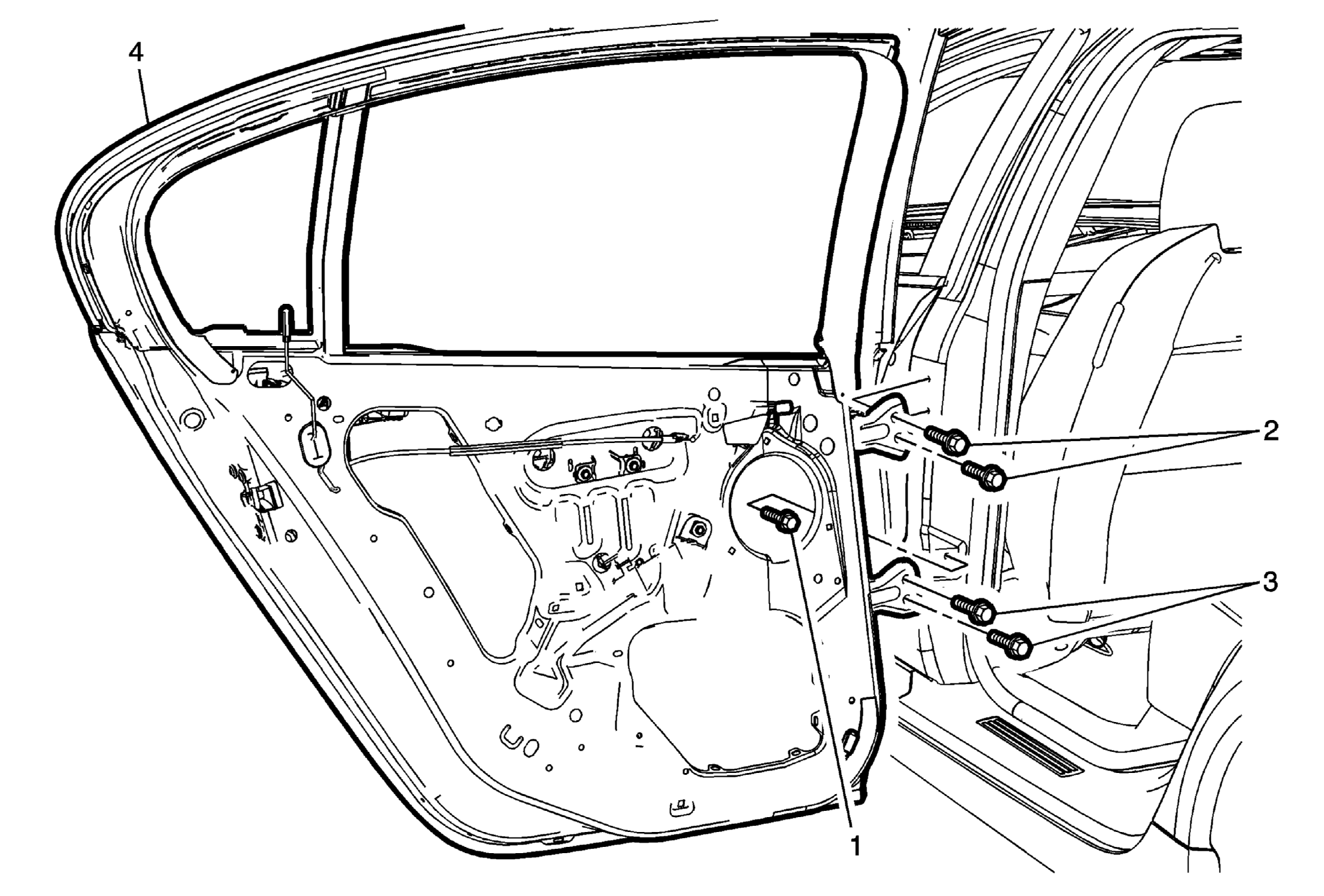

Fig 1: Rear Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Mark the location of the hinge before removing the bolts with a grease pencil. Remove the rear door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Check Link Body Side Bolt CAUTION: Refer to Fastener Caution . Procedure Apply a double layer of masking tape around the perimeter of the painted surfaces. Remove the water deflector. Disconnect the door electrical connector. Support the door before removing the hinge bolts. With an assistant, remove the door. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Upper Hinge Bolt to Body (Qty: 2) Tighten 28 N.m (21 lb ft)
3	Rear Side Door Lower Hinge Bolt to Body (Qty: 2) Tighten 28 N.m (21 lb ft)
4	Rear Side Door Procedure Transfer all components as necessary. If the door striker needs adjust. Refer to Rear Side Door Lock Striker Adjustment . Rear door adjustment. Refer to Rear Side Door Adjustment . NOTE: Inspect the door for proper operation before installing the door trim.
