Rear Compartment Lid Hinge Replacement

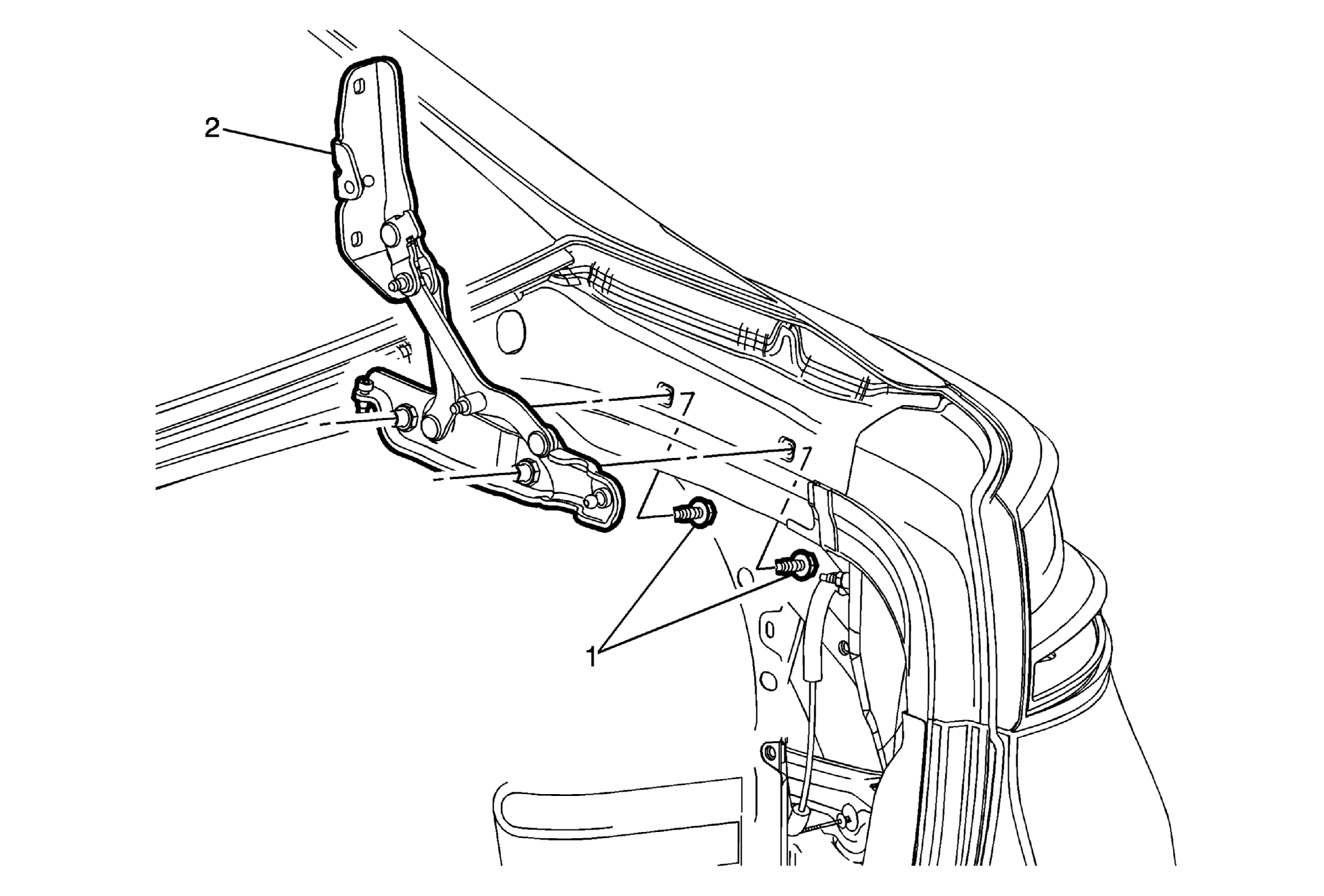

Fig 1: Rear Compartment Lid Hinge
GM3219014Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
  2. Remove the rear compartment lid hinge spring. Refer to Rear Compartment Lid Hinge Spring Replacement .
  3. Remove the rear compartment lid strut. Refer to Rear Compartment Lid Strut Replacement
1 Rear Compartment Lid Hinge Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Rear Compartment Lid Hinge

Procedure

  1. Remove the rear compartment lid with the aid of an assistant.
  2. Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment
