Rear Compartment Lid Hinge Spring Replacement

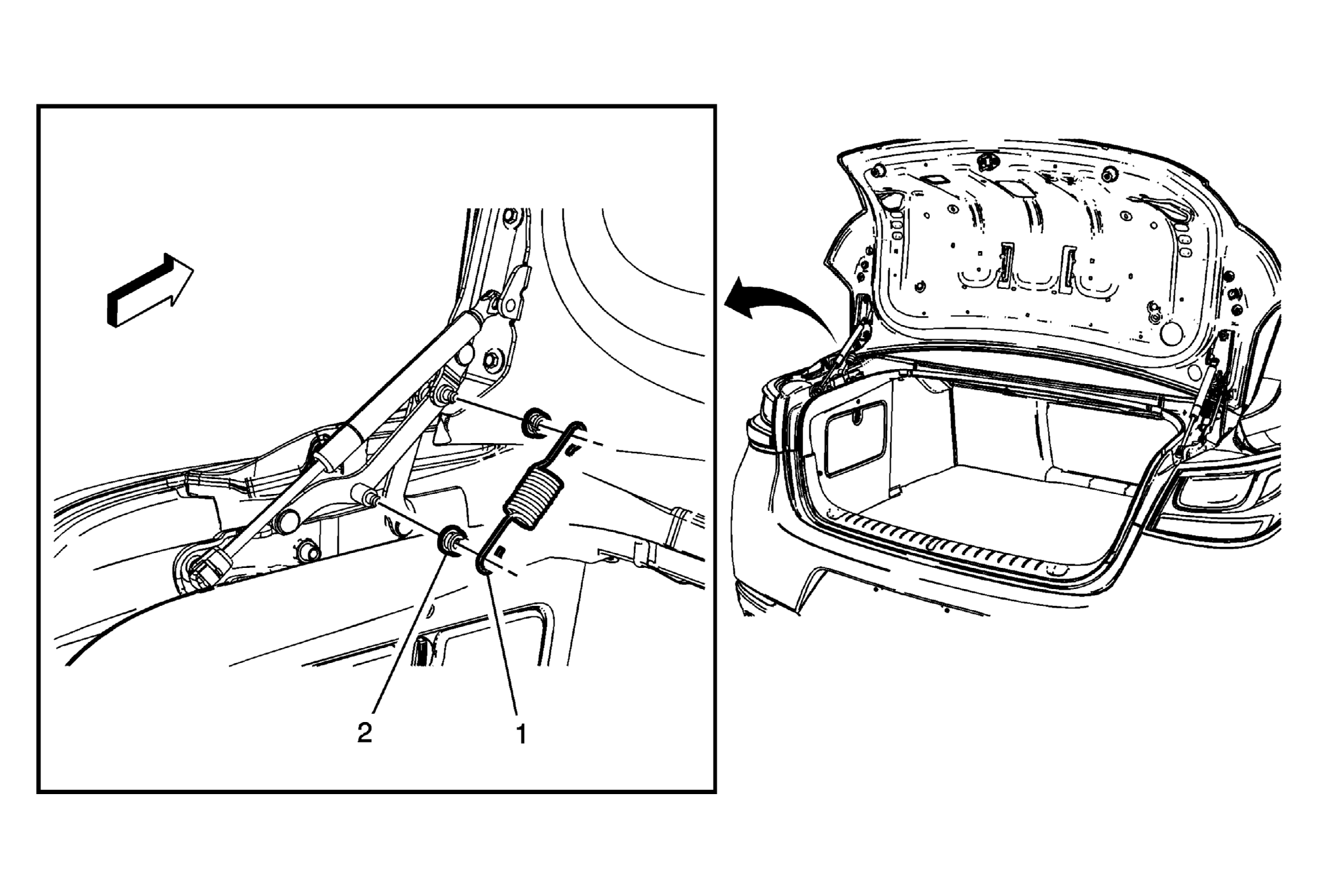

Fig 1: Rear Compartment Lid Hinge Spring

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. WARNING: Refer to Eye Protection Warning . Preliminary Procedures Remove the rear compartment lid strut. Refer to Rear Compartment Lid Strut Replacement
1	Rear Compartment Lid Hinge Spring Procedure Pull the rear compartment lid spring downwards and unhook the rear compartment lid spring from the rear compartment lid hinge stud.
2	Rear Compartment Lid Hinge Spring Retainer

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

WARNING:

Refer to Eye Protection Warning .

Preliminary Procedures

Remove the rear compartment lid strut. Refer to Rear Compartment Lid Strut Replacement

Rear Compartment Lid Hinge Spring

Procedure

Pull the rear compartment lid spring downwards and unhook the rear compartment lid spring from the rear compartment lid hinge stud.

Rear Compartment Lid Hinge Spring Retainer
