Hood Replacement

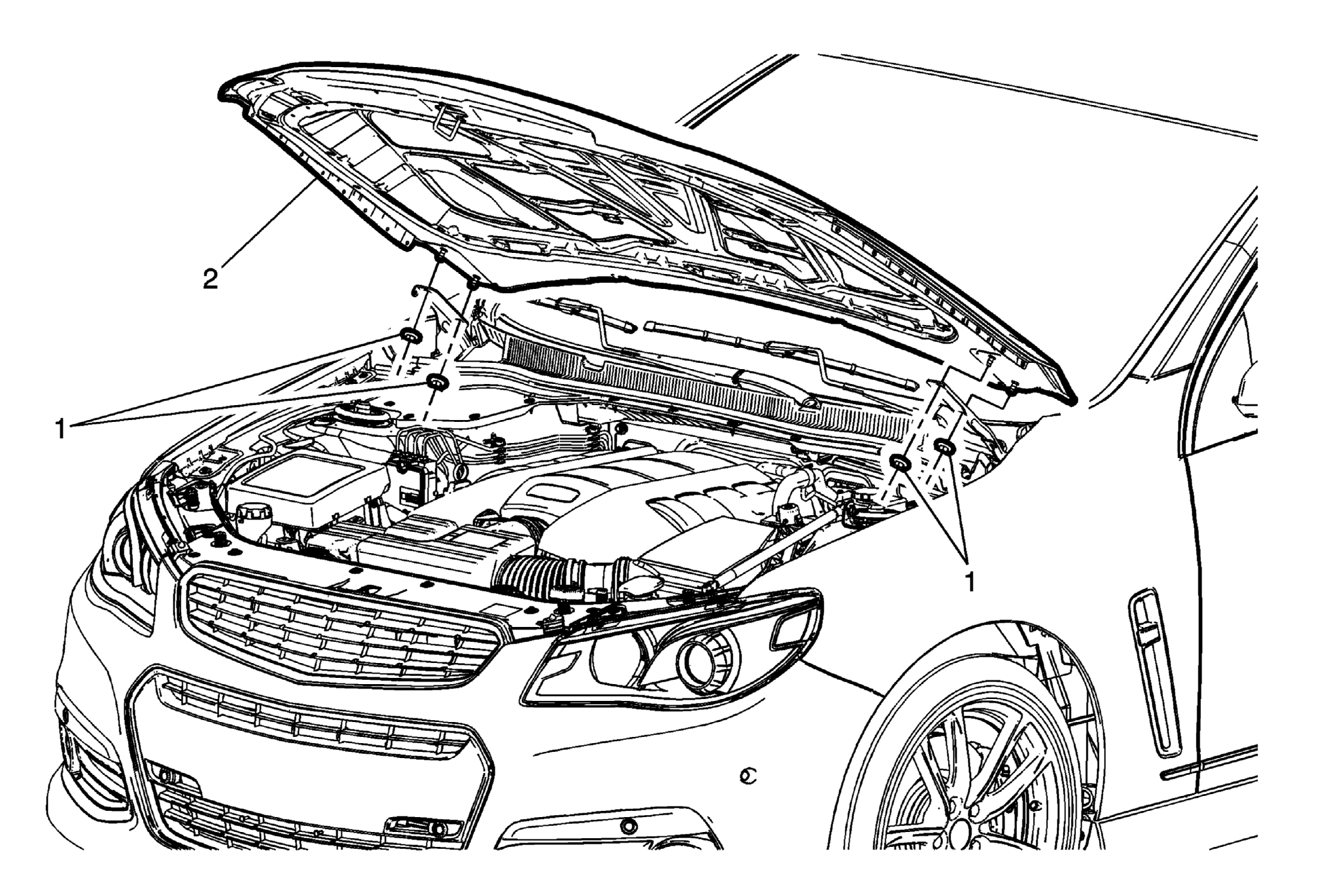

Fig 1: Hood
GM3461455Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the windshield washer nozzle hose. Refer to Windshield Washer Nozzle Hose Replacement .
  2. Disconnect the hood strut. Refer to Hood Strut Replacement

1 Hood Hinge Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Procedure
Mark the hood or hinge position in order to aid in hood reinstallation.
Tighten
22 N.m (16 lb ft)
2 Hood

Procedure

  1. With the aid of an assistant remove the hood.
  2. Transfer parts as needed.
  3. Adjust the hood if needed. Refer to Hood Adjustment .
