Windshield Washer Nozzle Hose Replacement

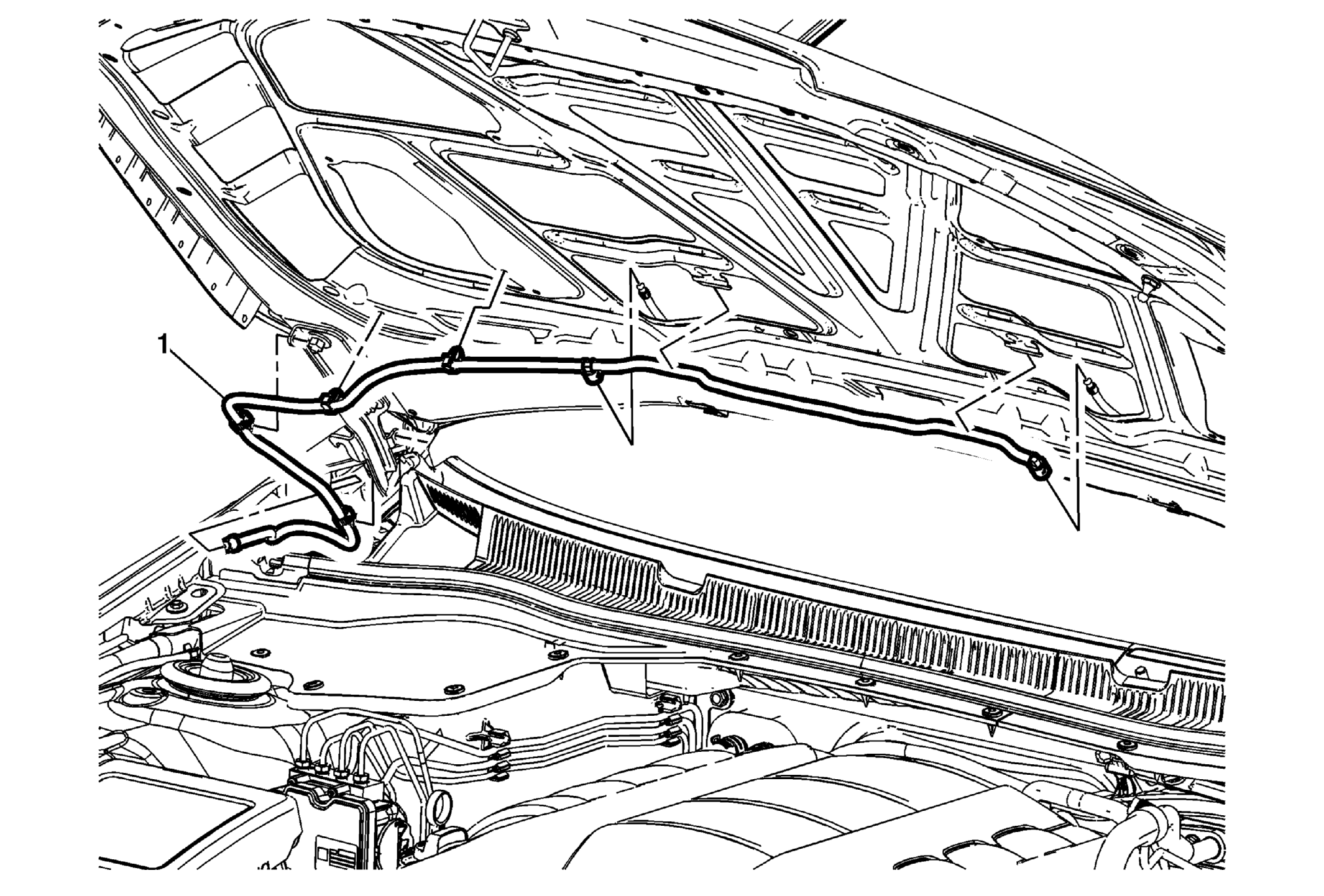

Fig 1: Windshield Washer Nozzle Hose
GM3601492Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Open and support the hood assembly.
  2. Remove the hood insulator. Refer to Hood Insulator Replacement .
1 Windshield Washer Nozzle Hose

Procedure

  1. Disconnect the windshield washer nozzle hose at the windshield washer nozzle.
  2. Disconnect the windshield washer nozzle hose at the windshield washer pump hose and pull up from behind the air inlet panel extension.
