Steering Wheel Airbag Coil Replacement

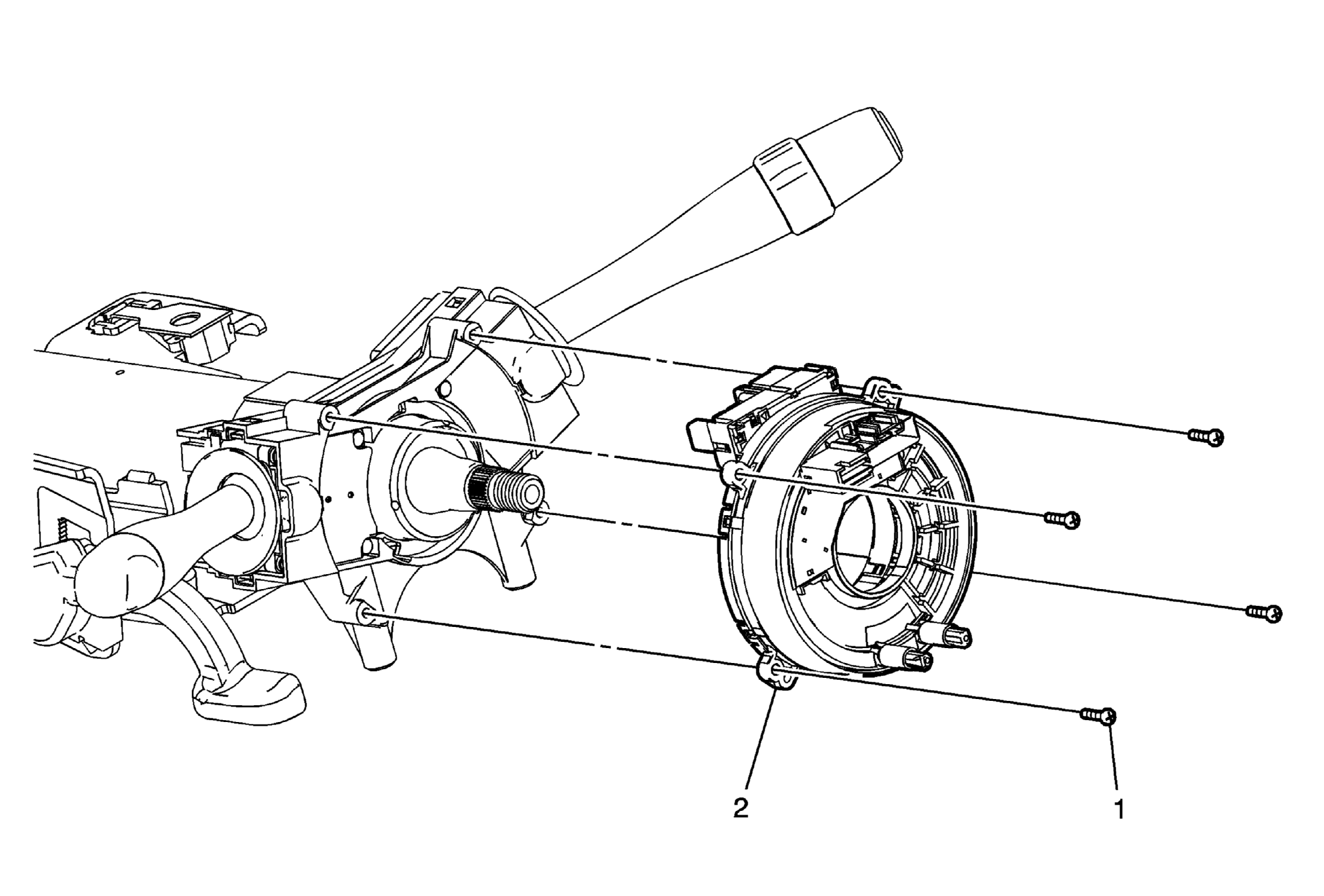

Fig 1: View Of Inflatable Restraint Steering Wheel Module Coil

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement . Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . Remove the steering wheel. Refer to Steering Wheel Replacement .
1	Steering Wheel Inflatable Restraint Module Coil Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Steering Wheel Inflatable Restraint Module Coil Procedure Disconnect any electrical connectors as needed. Do not remove the centering tab from a new steering wheel inflatable restraint module coil until it has been installed or re-centering will be required. If re-centering of the steering wheel inflatable restraint module coil is needed then refer to Airbag Steering Wheel Module Coil Centering .

Callout

Component Name

Preliminary Procedures

Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
Remove the steering wheel. Refer to Steering Wheel Replacement .

Steering Wheel Inflatable Restraint Module Coil Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Steering Wheel Inflatable Restraint Module Coil
Procedure
Disconnect any electrical connectors as needed.

Do not remove the centering tab from a new steering wheel inflatable restraint module coil until it has been installed or re-centering will be required.
If re-centering of the steering wheel inflatable restraint module coil is needed then refer to Airbag Steering Wheel Module Coil Centering .
