Steering Column Lower Trim Cover Replacement

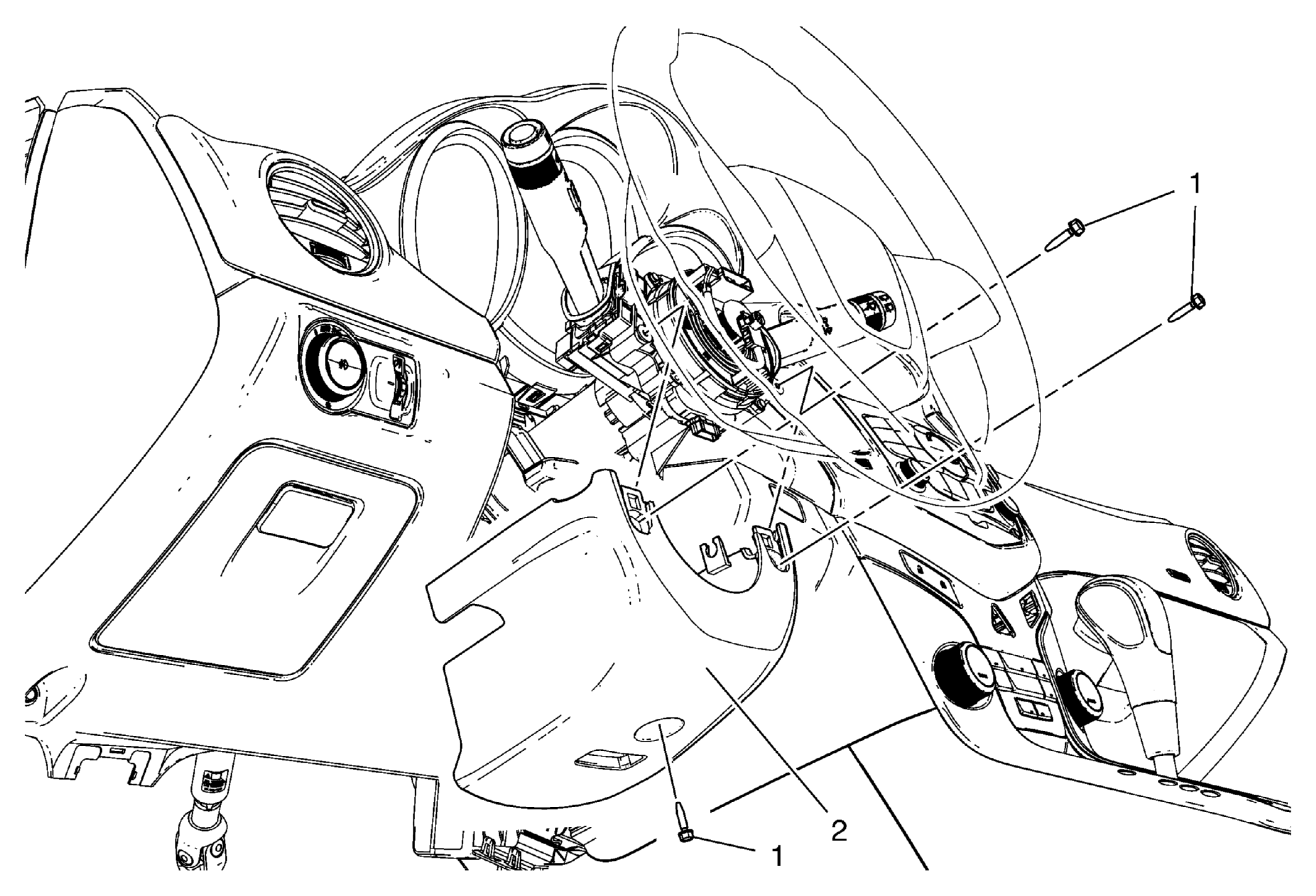

Fig 1: View Of Steering Column Lower Trim Cover And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1	Steering Column Lower Trim Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Steering Column Lower Trim Cover Procedure  Turn the steering wheel until the bolts are reachable.
