Steering Column Upper Trim Cover Replacement

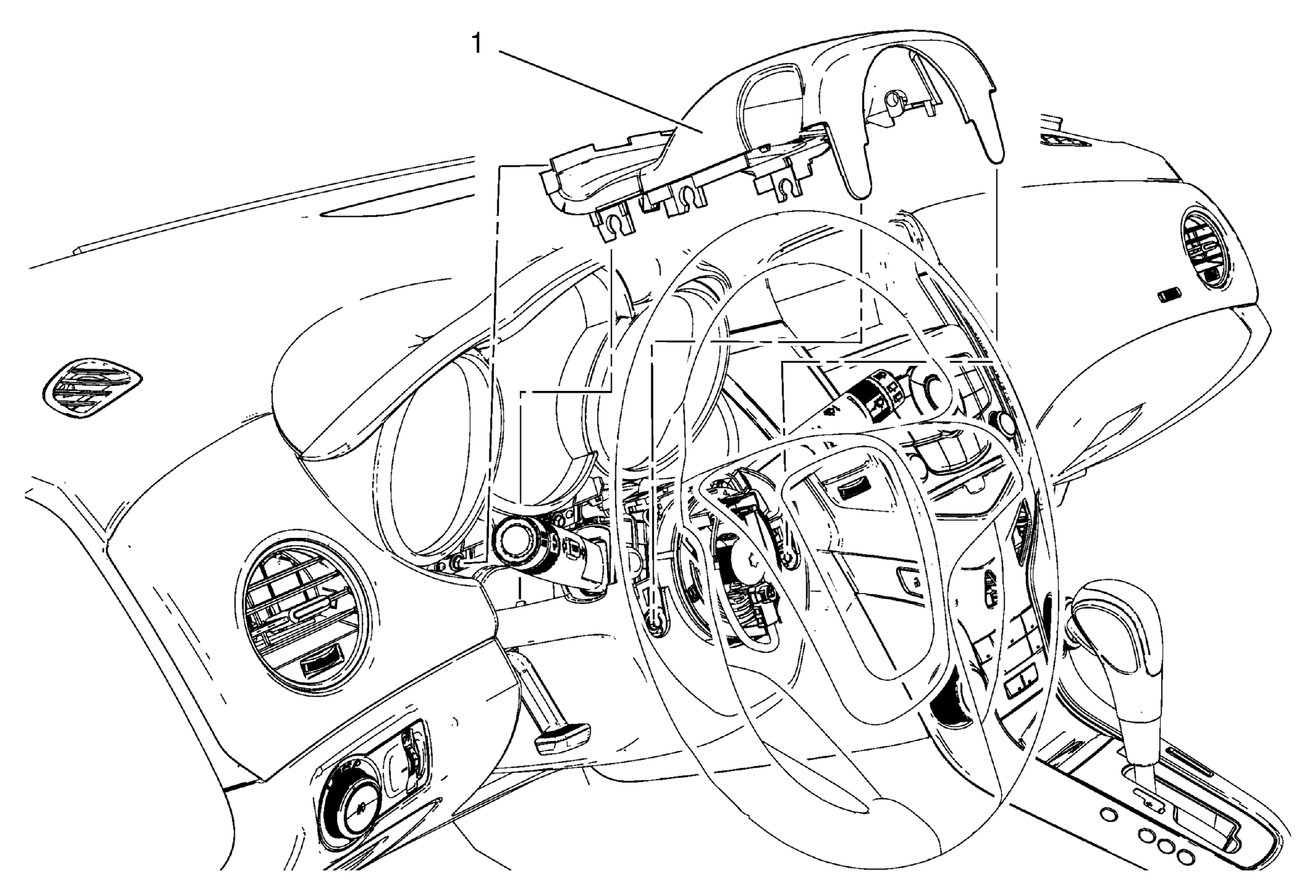

Fig 1: View Of Steering Column Upper Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Steering Column Upper Trim Cover Procedure Unclip the steering column upper trim cover from the steering column lower trim cover. Disengage the steering column upper trim cover flexible part from instrument cluster. Carefully pull plastic part rearward from instrument cluster.

Callout

Component Name

Preliminary Procedures
Disable the SIR system. Refer to SIR Disabling and Enabling .

Steering Column Upper Trim Cover

Procedure

Unclip the steering column upper trim cover from the steering column lower trim cover.
Disengage the steering column upper trim cover flexible part from instrument cluster.
Carefully pull plastic part rearward from instrument cluster.
