Air Conditioning Compressor Bracket Replacement

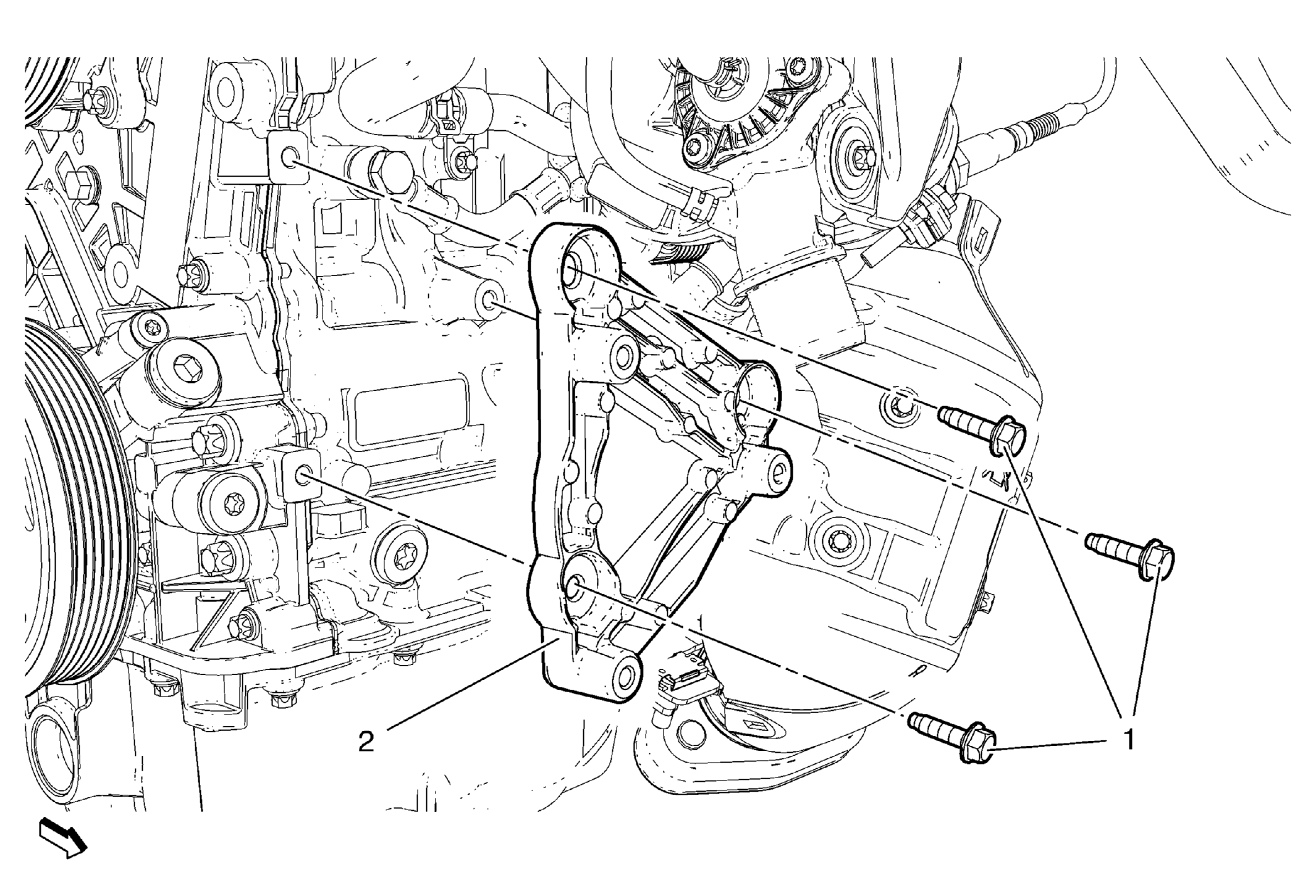

Fig 1: Air Conditioning Compressor Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove air conditioning compressor. Refer to Air Conditioning Compressor Replacement (2.0L Diesel LUZ) , Air Conditioning Compressor Replacement (1.4L LUV)  and Air Conditioning Compressor Replacement (1.8L LUW and LWE) .
1	Air Conditioning Compressor Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Air Conditioning Compressor Bracket
