Installation Procedure

  1. Install heater and blower and air conditioning control module (3).

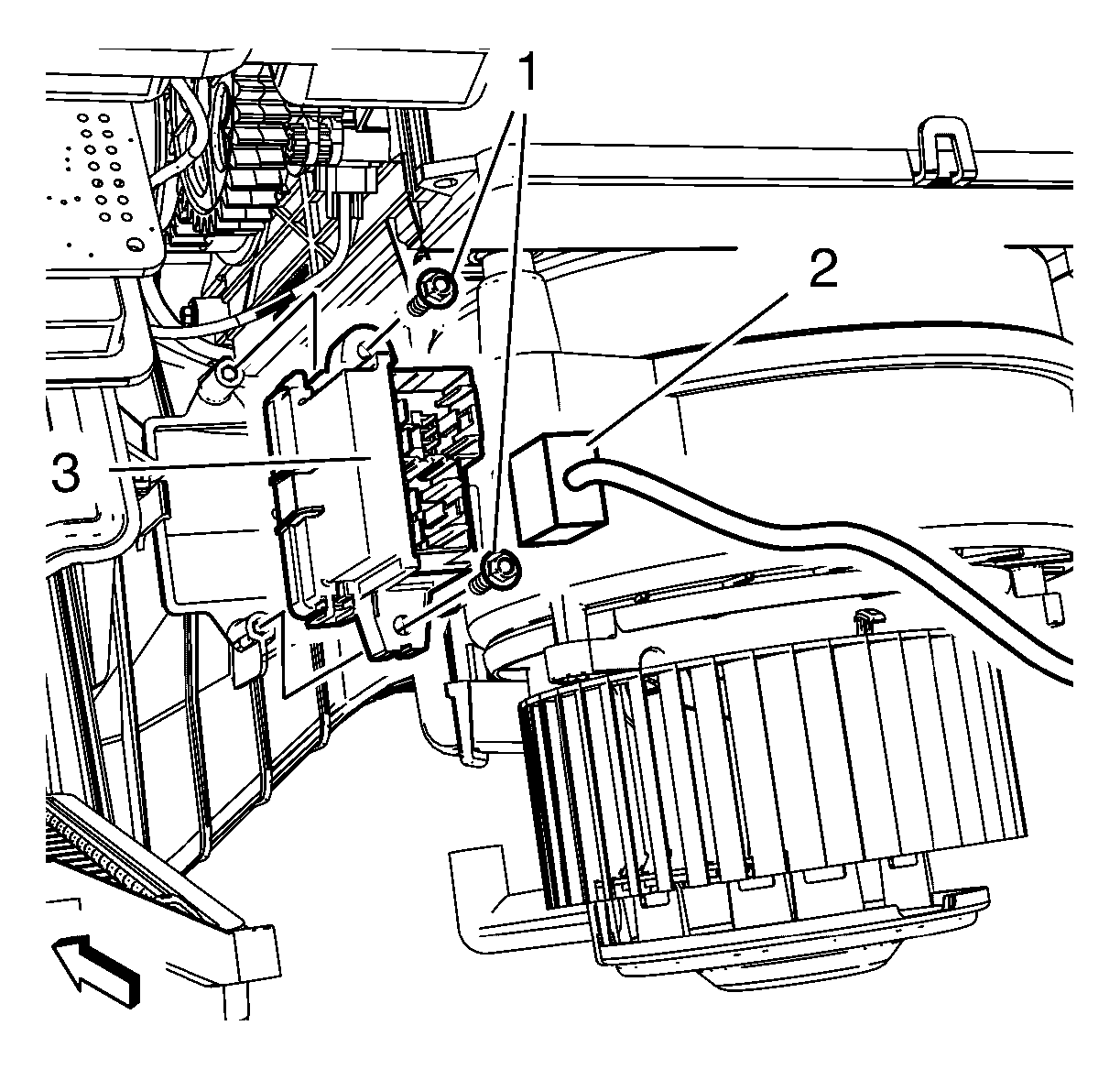

    Fig 1: Heater And Blower Control Module, Wiring Harness Plug And Bolts
    GM2027280Courtesy of GENERAL MOTORS COMPANY
  2. Install the heater and blower and air conditioning control module wiring harness plug (2) and the 2 heater and blower and air conditioning control module bolts (1). Tighten to 2.5 N.m (23 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .
  4. Install instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
