Floor Air Outlet Duct Replacement - Right Side

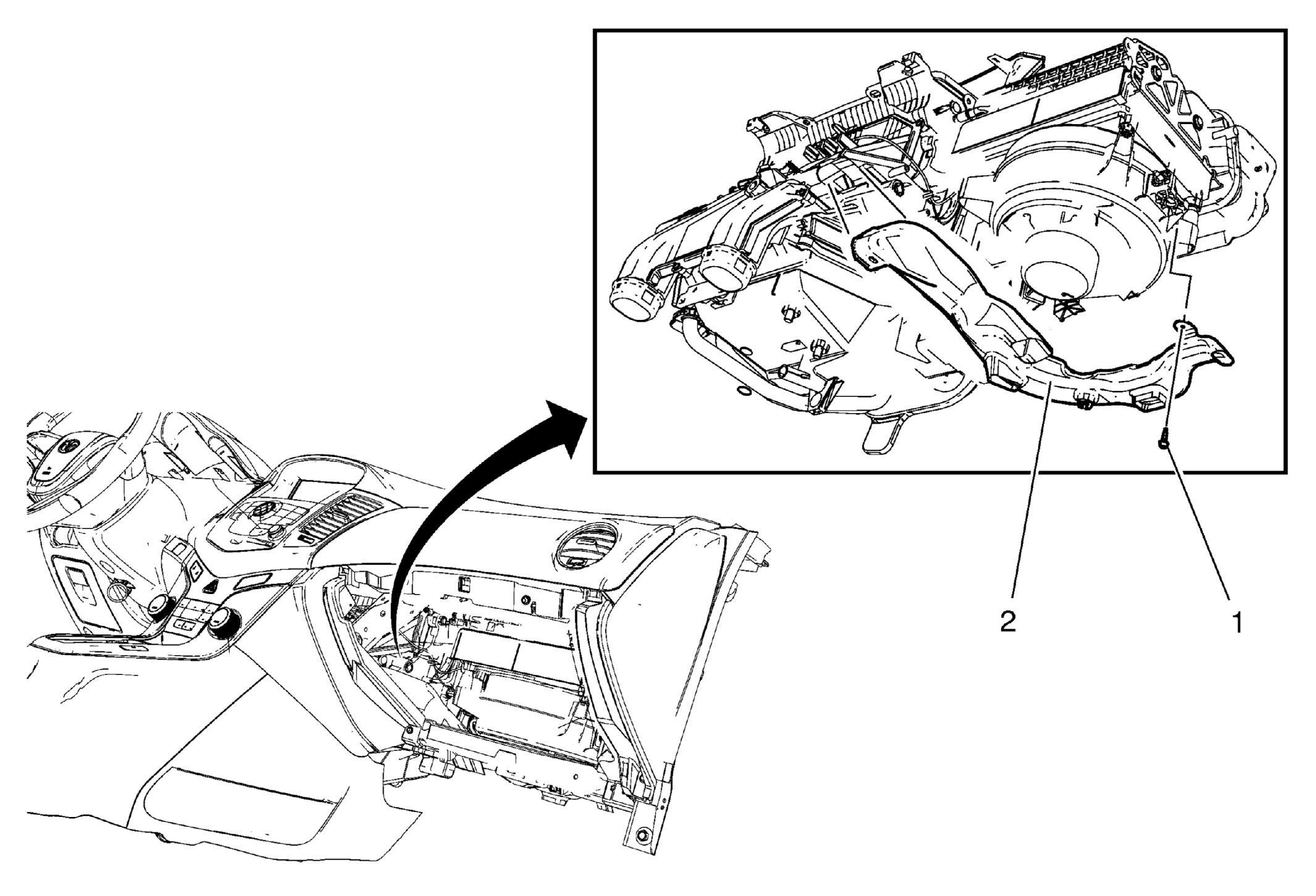

Fig 1: Floor Front Air Outlet Duct
GM2028218Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Floor Air Outlet Duct Bolt
CAUTION: Refer to Fastener Caution .

Tighten
1.6 N.m (14 lb in)
2 Floor Air Outlet Duct
