Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the mass airflow sensor / intake air temperature sensor wiring harness plug (2).

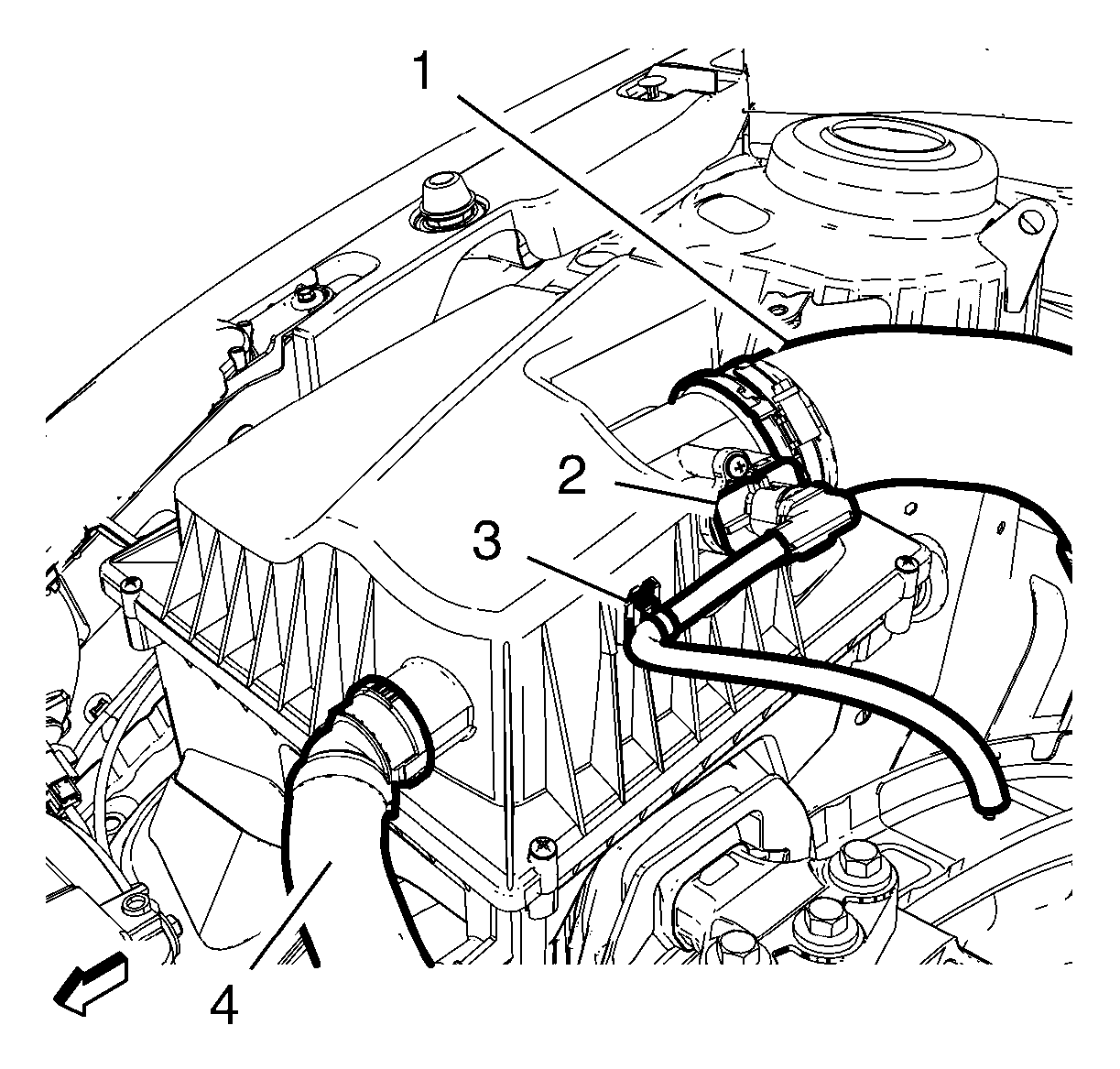

    Fig 1: Air Cleaner Outlet Duct (LWE)
    GM2756408Courtesy of GENERAL MOTORS COMPANY
  2. Unclip the engine control module (ECM) wiring harness (3) from the air cleaner housing.
  3. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  4. Remove the secondary air injection pump inlet hose (4) from the air cleaner upper housing. Refer to Secondary Air Injection Pump Inlet Hose Replacement .
  5. Unclip the water drain hose (2) from the air cleaner lower housing (1).

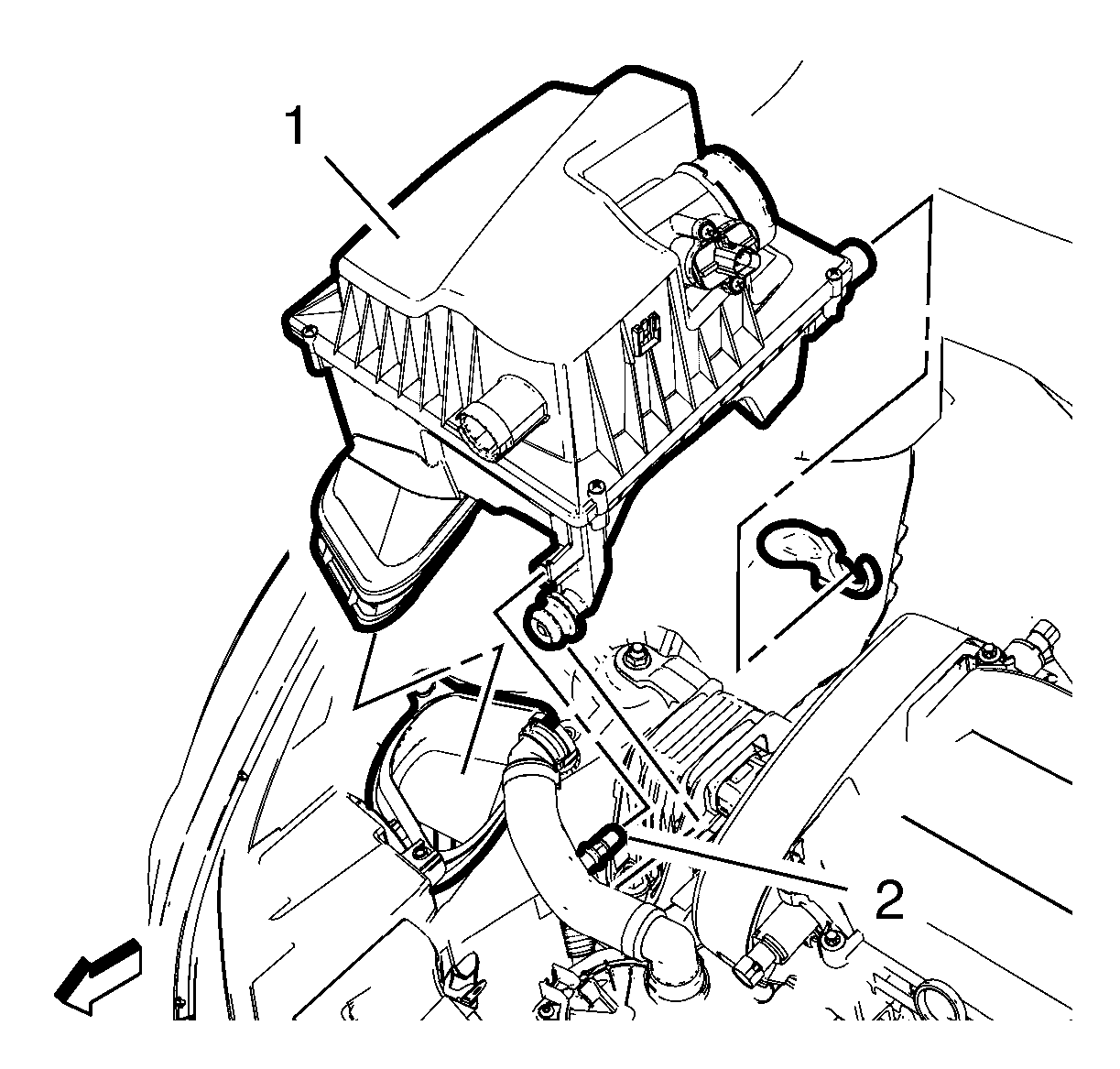

    Fig 2: Water Drain Hose (LWE)
    GM2834299Courtesy of GENERAL MOTORS COMPANY
  6. Remove the air cleaner assembly (1).
