Secondary Air Injection Pump Inlet Hose Replacement

WARNING: This page is about a different variant/trim than selected.

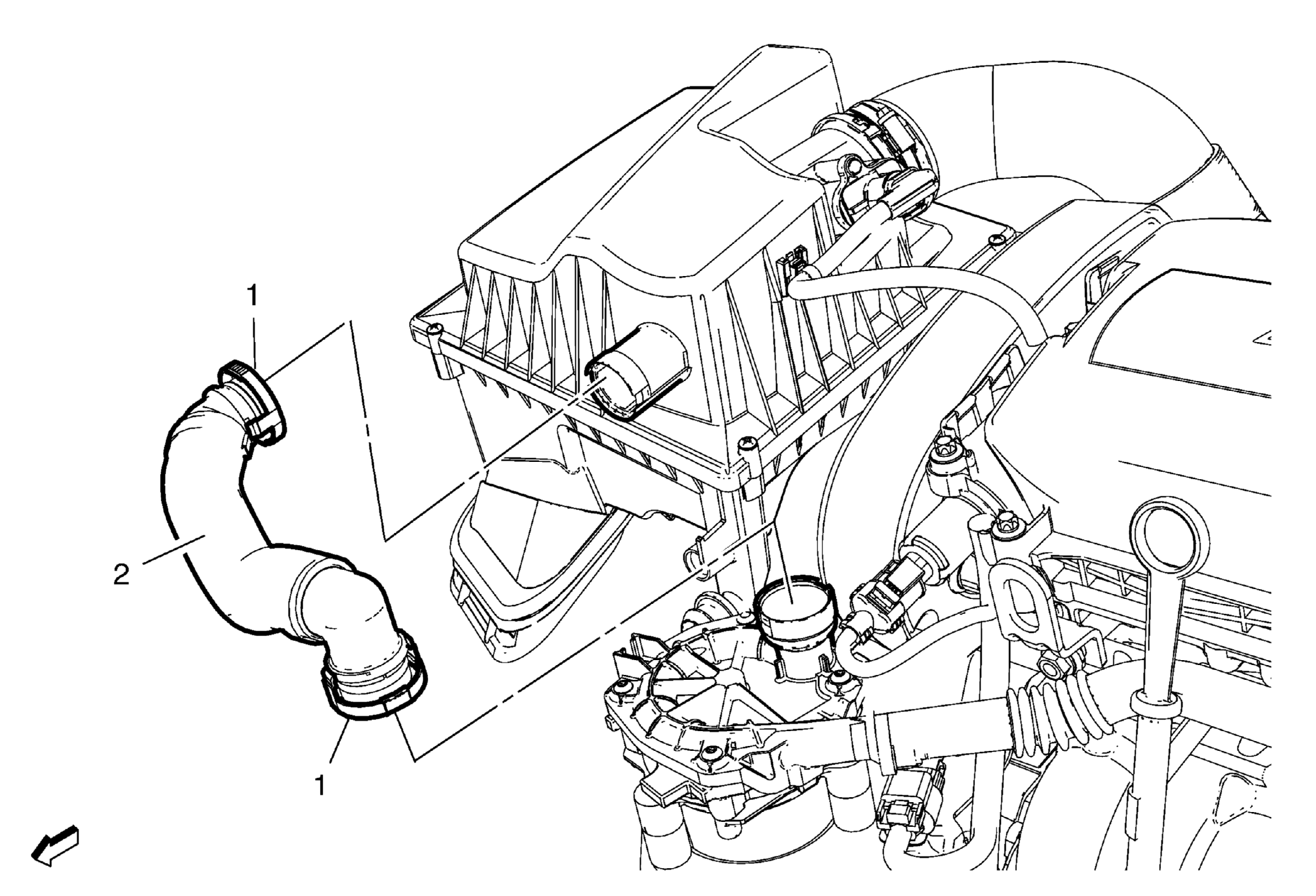

Fig 1: Secondary Air Injection Pump Inlet Hose
GM2834315Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hose Retainer (Qty: 2)
Refer to Plastic Collar Quick Connect Fitting Service .
2 Secondary Air Injection Pump Inlet Hose
Procedure
Disconnect the hose from the secondary air injection pump and the air cleaner assembly.
