Air Cleaner Outlet Duct Replacement

WARNING: This page is about a different variant/trim than selected.

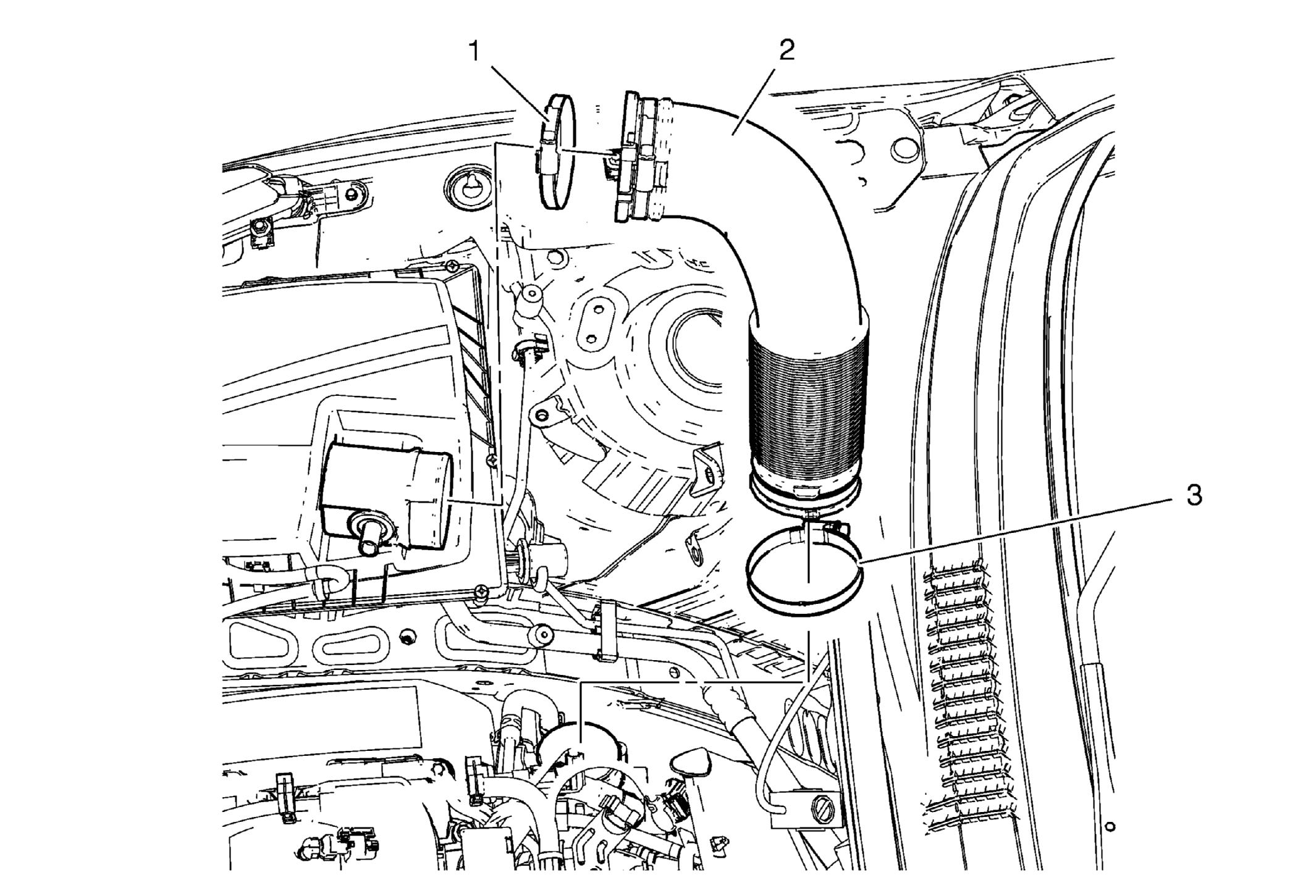

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Duct to Air Cleaner Housing Cover Clamp CAUTION: Any time service is being performed which requires removal of the air cleaner assembly, always cover the throttle body opening. This will prevent any foreign material from entering the engine. CAUTION: Refer to Fastener Caution . NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 3.5 N.m (31 lb in)
2	Air Cleaner Outlet Duct
3	Air Cleaner Outlet Duct to Intake Manifold Clamp NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 3.5 N.m (31 lb in)
