Engine Oil Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

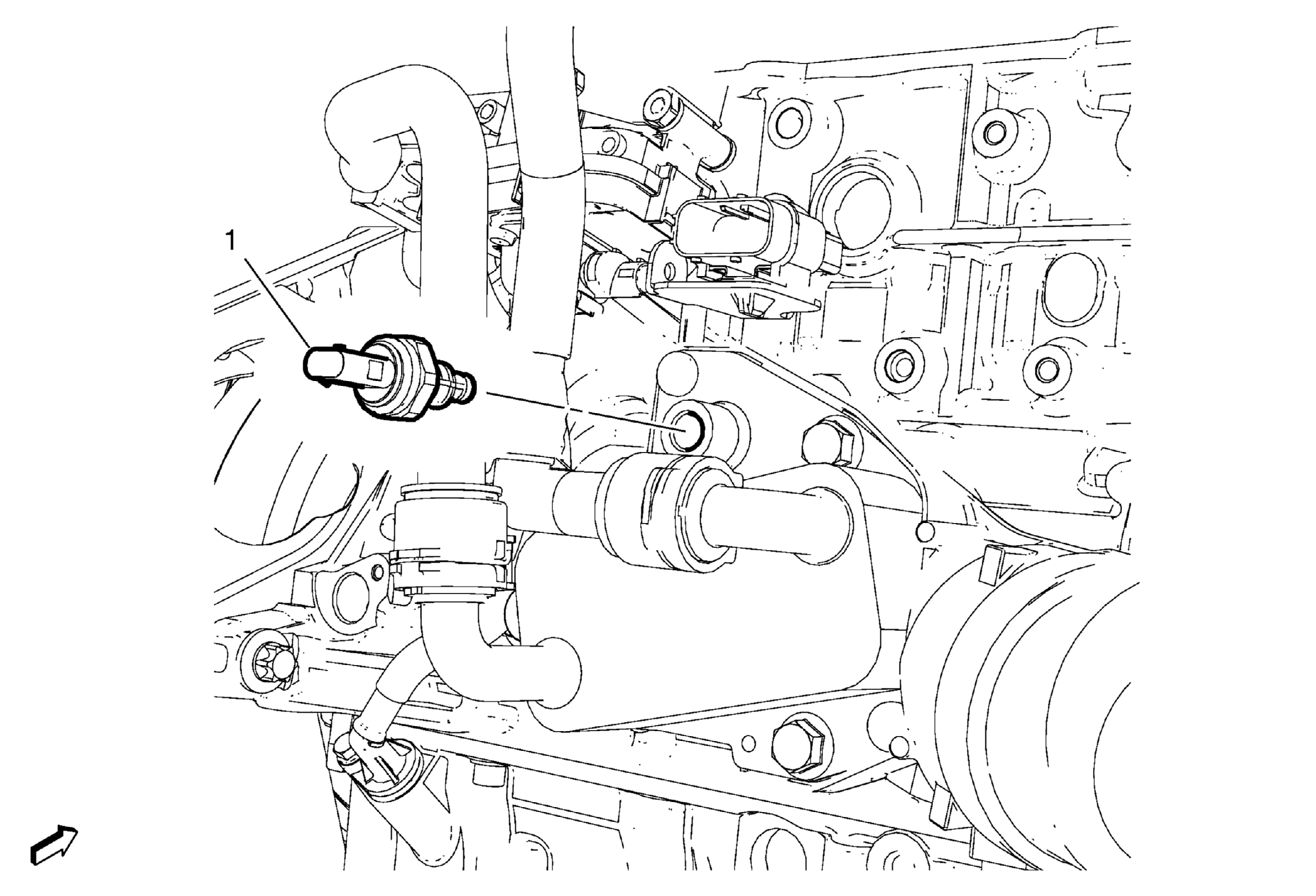

Fig 1: Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement . Remove the engine oil cooler outlet hose. Refer to Engine Oil Cooler Outlet Hose Replacement (2.0L Diesel LUZ) . Disconnect the engine oil pressure sensor wiring harness plug.
1	Engine Oil Pressure Sensor CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .
Remove the engine oil cooler outlet hose. Refer to Engine Oil Cooler Outlet Hose Replacement (2.0L Diesel LUZ) .
Disconnect the engine oil pressure sensor wiring harness plug.

Engine Oil Pressure Sensor

CAUTION: Refer to Fastener Caution .

Tighten
35 N.m (26 lb ft)
