Engine Oil Cooler Outlet Hose Replacement (2.0L Diesel LUZ)

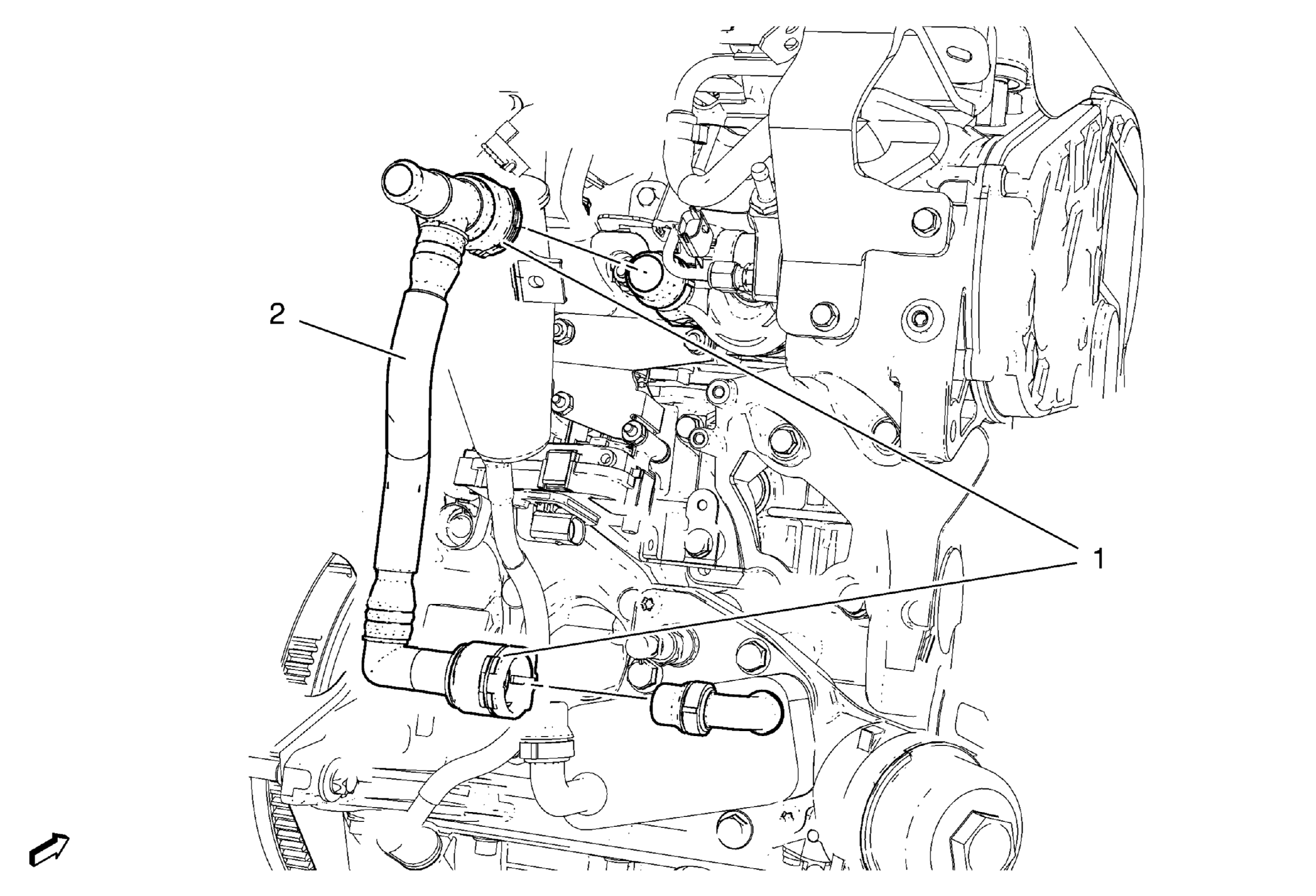

Fig 1: Engine Oil Cooler Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) . Disconnect the heater outlet hose from the oil cooler outlet hose. Refer to Heater Outlet Hose Replacement (2.0L Diesel LUZ) .
1	Engine Oil Cooler Coolant Outlet Hose Quick Connect (Qty: 2) Procedure Put a collecting basin underneath and Release the oil cooler coolant outlet hose quick connects.
2	Engine Oil Cooler Coolant Outlet Hose

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
Disconnect the heater outlet hose from the oil cooler outlet hose. Refer to Heater Outlet Hose Replacement (2.0L Diesel LUZ) .

Engine Oil Cooler Coolant Outlet Hose Quick Connect (Qty: 2)
Procedure
Put a collecting basin underneath and Release the oil cooler coolant outlet hose quick connects.

Engine Oil Cooler Coolant Outlet Hose
