Camshaft Rear Cover Replacement

WARNING: This page is about a different variant/trim than selected.

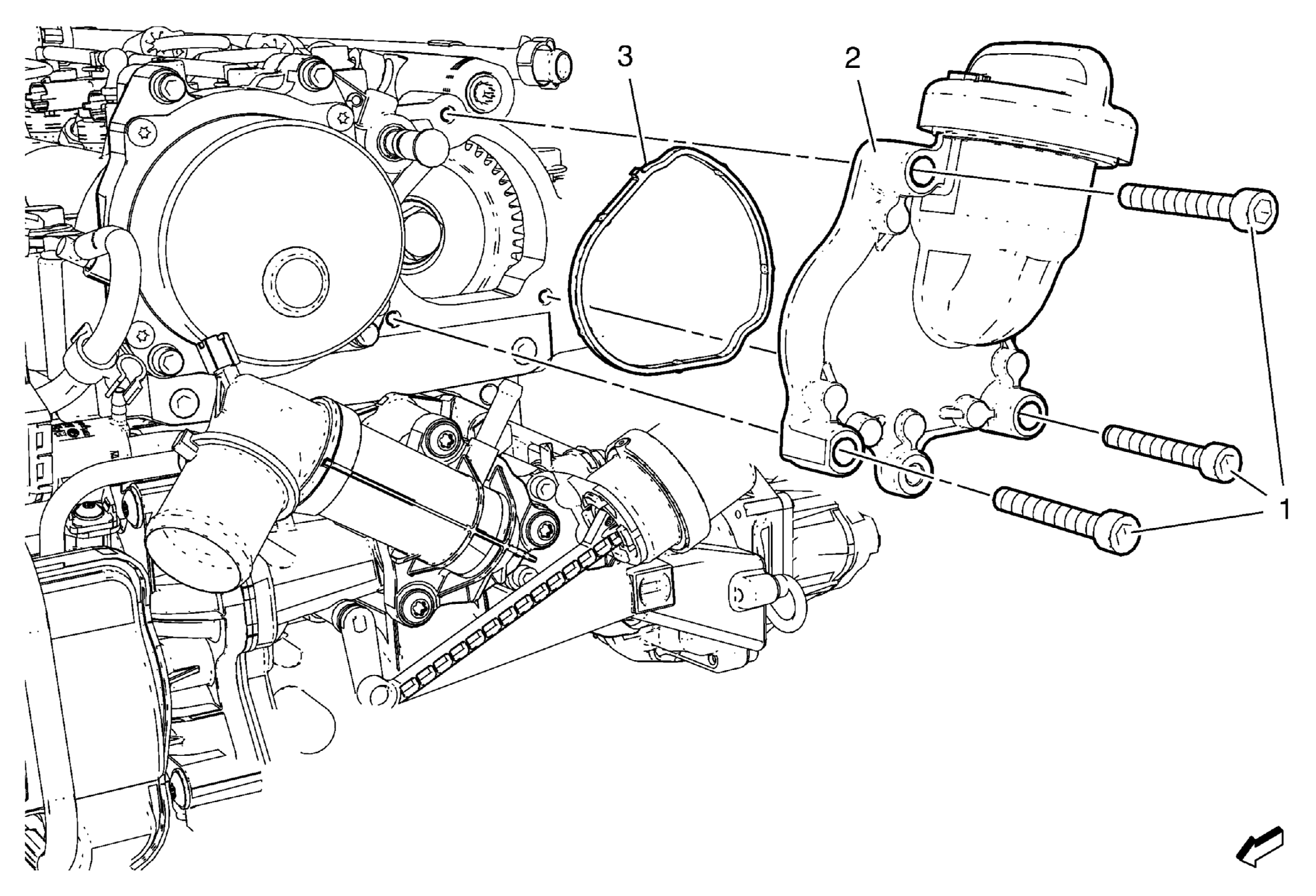

Fig 1: Camshaft Rear Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Loosen the 3 charge air cooler outlet air hose bolts from the throttle body and the charge air cooler outlet air hose bracket bolt and hang the hose aside. Disconnect the engine coolant temperature sensor wiring harness plug. Remove the engine control module wiring harness bracket.
1	Camshaft Rear Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Camshaft Rear Cover
3	Camshaft Rear Cover Gasket Procedure Install a NEW camshaft rear cover gasket prior installation of the camshaft rear cover.
