Glow Plug Installation
WARNING: This page is about a different variant/trim than selected.
Special Tools
- EN-47633 Remover/Installer Glow Plugs 9 mm
- EN-6104 Remover/Installer Glow Plugs 12 mm
For equivalent regional tools, refer to Special Tools .

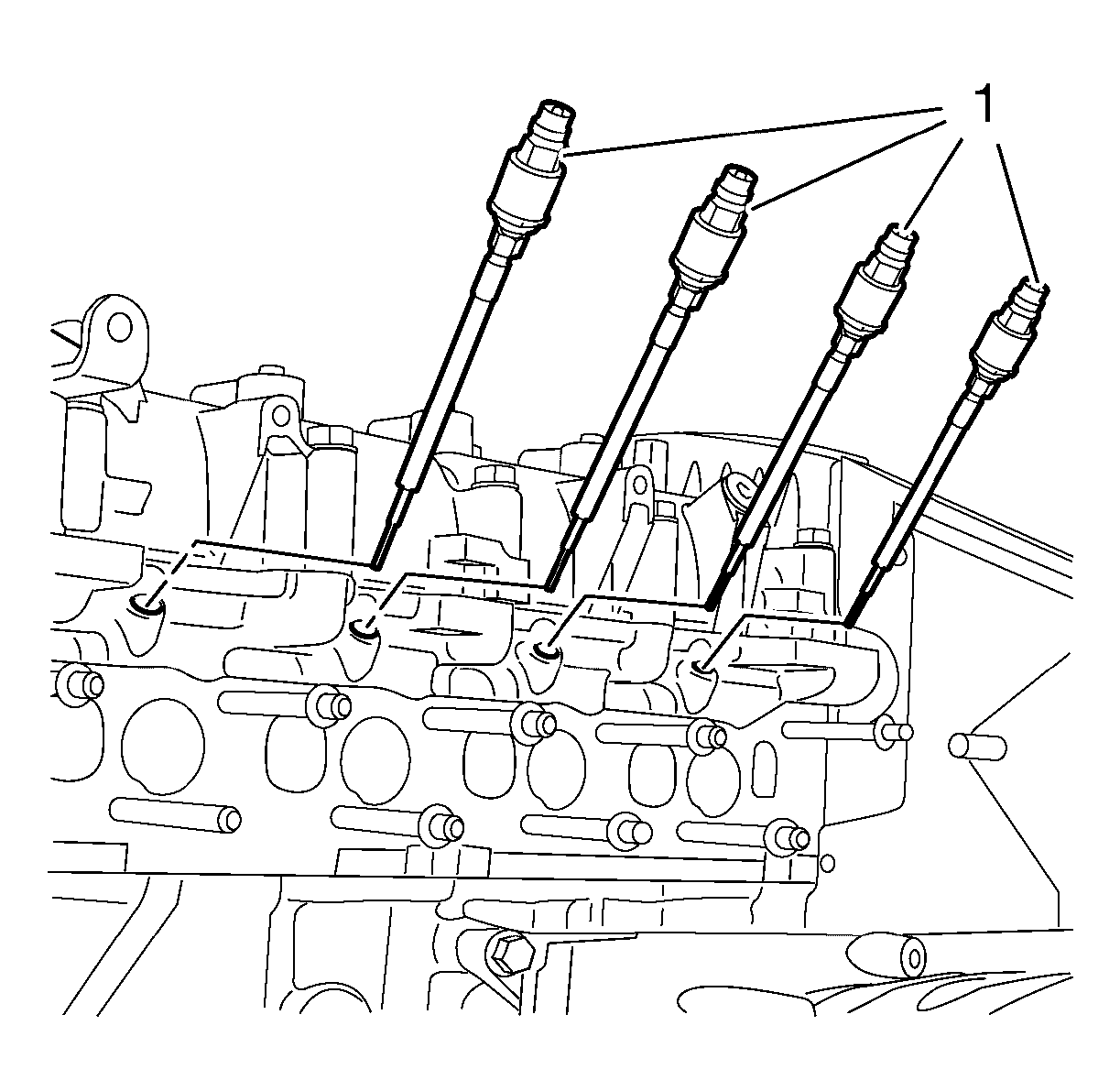

- Install the 2 glow plugs (1) without pressure sensor, using the EN-47633
installer 9 mm and tighten to 10 N.m (89 lb in).
CAUTION: Refer to Component Fastener Tightening Caution .
- Install the 2 glow plugs (1) with pressure sensor, using the EN-6104 installer 12 mm and tighten to 11 N.m (97 lb in).
