Crankshaft Sprocket Installation

WARNING: This page is about a different variant/trim than selected.

Special Tools

EN 46792 Crankshaft / Flywheel Holder

For equivalent regional tools, refer to Special Tools .

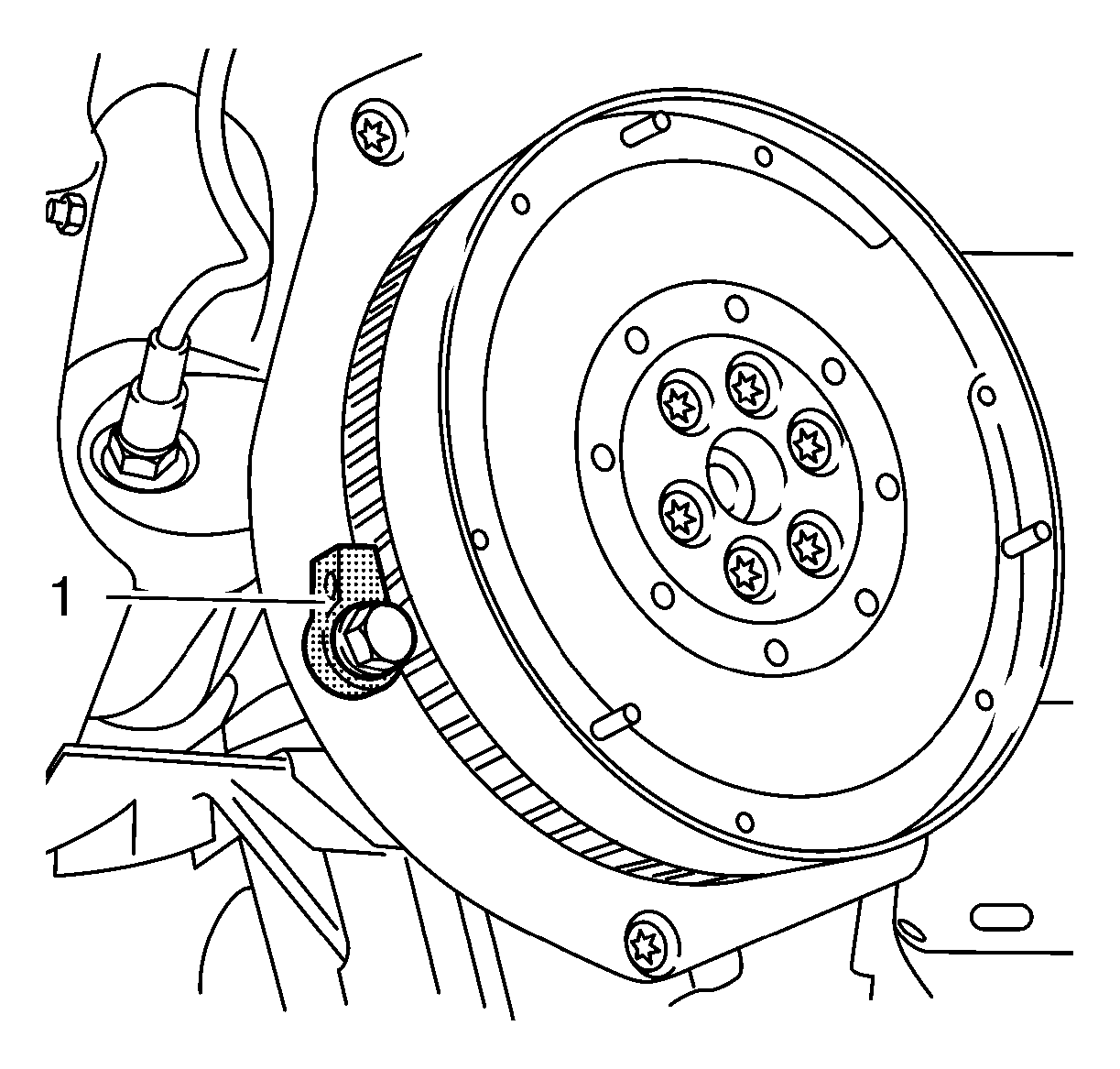

Install the EN 46792 holder (1) to hold the crankshaft.

Fig 1: Holder
Courtesy of GENERAL MOTORS COMPANY

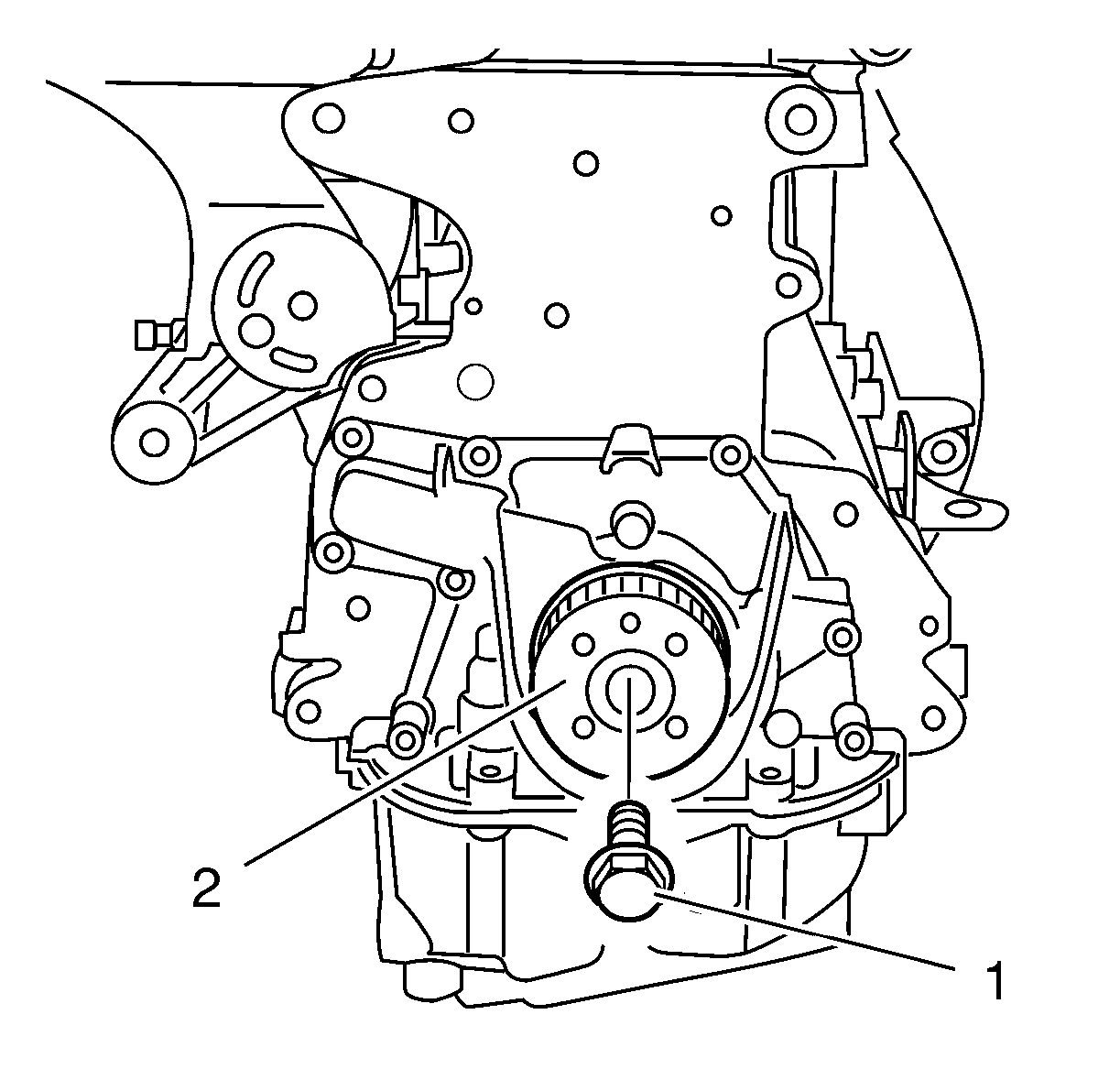

Install the crankshaft sprocket (2).

Fig 2: Crankshaft Sprocket
Courtesy of GENERAL MOTORS COMPANY
Install the NEW crankshaft sprocket bolt (1) and tighten to 340 N.m (251 lb ft).
CAUTION: Refer to Fastener Caution .

NOTE: The bolt (1) has a left-hand thread.
