Transmission Control Replacement

WARNING: This page is about a different variant/trim than selected.

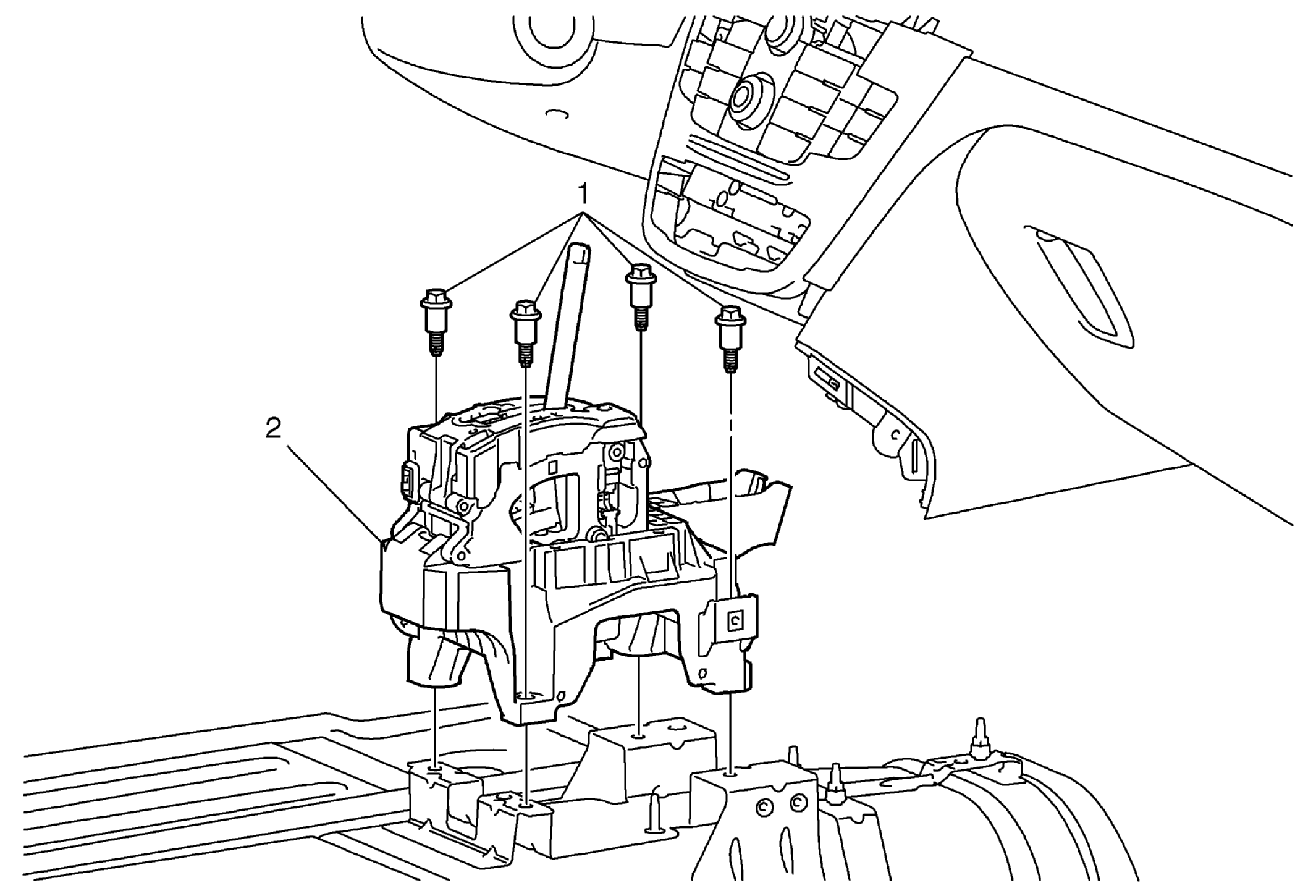

Fig 1: Transmission Control & Fasteners
GM2018783Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove control lever knob. Refer to Transmission Control Lever Knob Replacement .
  2. Remove front floor console. Refer to Front Floor Console Replacement .
1 Transmission Control Fasteners (Qty: 4)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Unclip wiring harness and disconnect electrical connector transmission control.
  2. Disconnect range selector lever cable. Refer to Range Selector Lever Cable Replacement .
  3. Adjust range selector lever cable. Refer to Range Selector Lever Cable Adjustment .

Tighten
9 N.m (80 lb in)
2 Transmission Control
