Transmission Control Lever Knob Replacement

WARNING: This page is about a different variant/trim than selected.

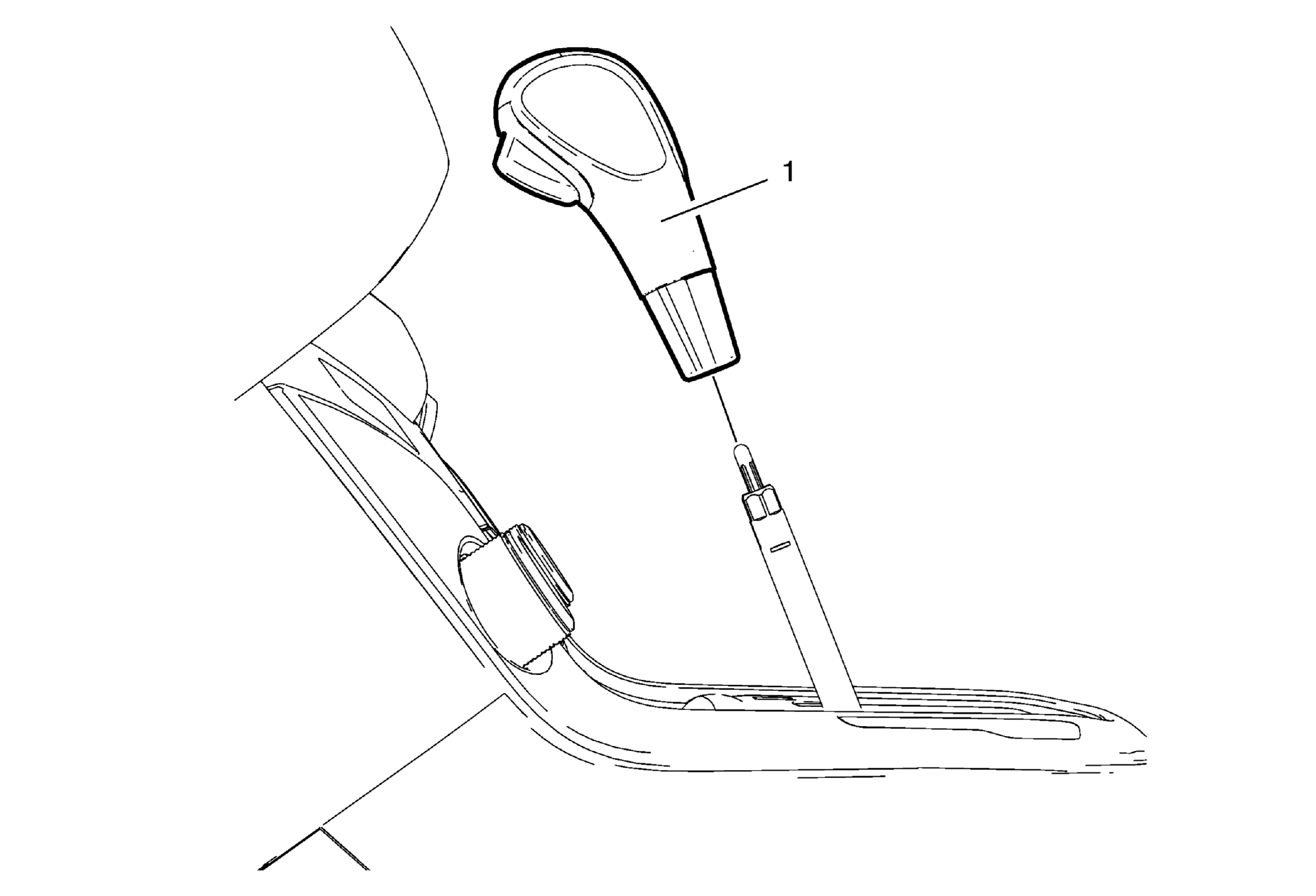

Fig 1: Transmission Control Lever Knob

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Control Lever Knob Procedure Pull the knob with both hands upward with a twisting motion of max. 1- 2 degrees to release from the transmission control lever. Remove transmission control lever knob from the transmission control. NOTE: Considerable effort may be necessary to release the knob from the control lever.

Callout

Component Name

Transmission Control Lever Knob

Procedure

Pull the knob with both hands upward with a twisting motion of max. 1- 2 degrees to release from the transmission control lever.
Remove transmission control lever knob from the transmission control.

NOTE: Considerable effort may be necessary to release the knob from the control lever.
