Front Bumper Fascia Opening Lower Cover Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

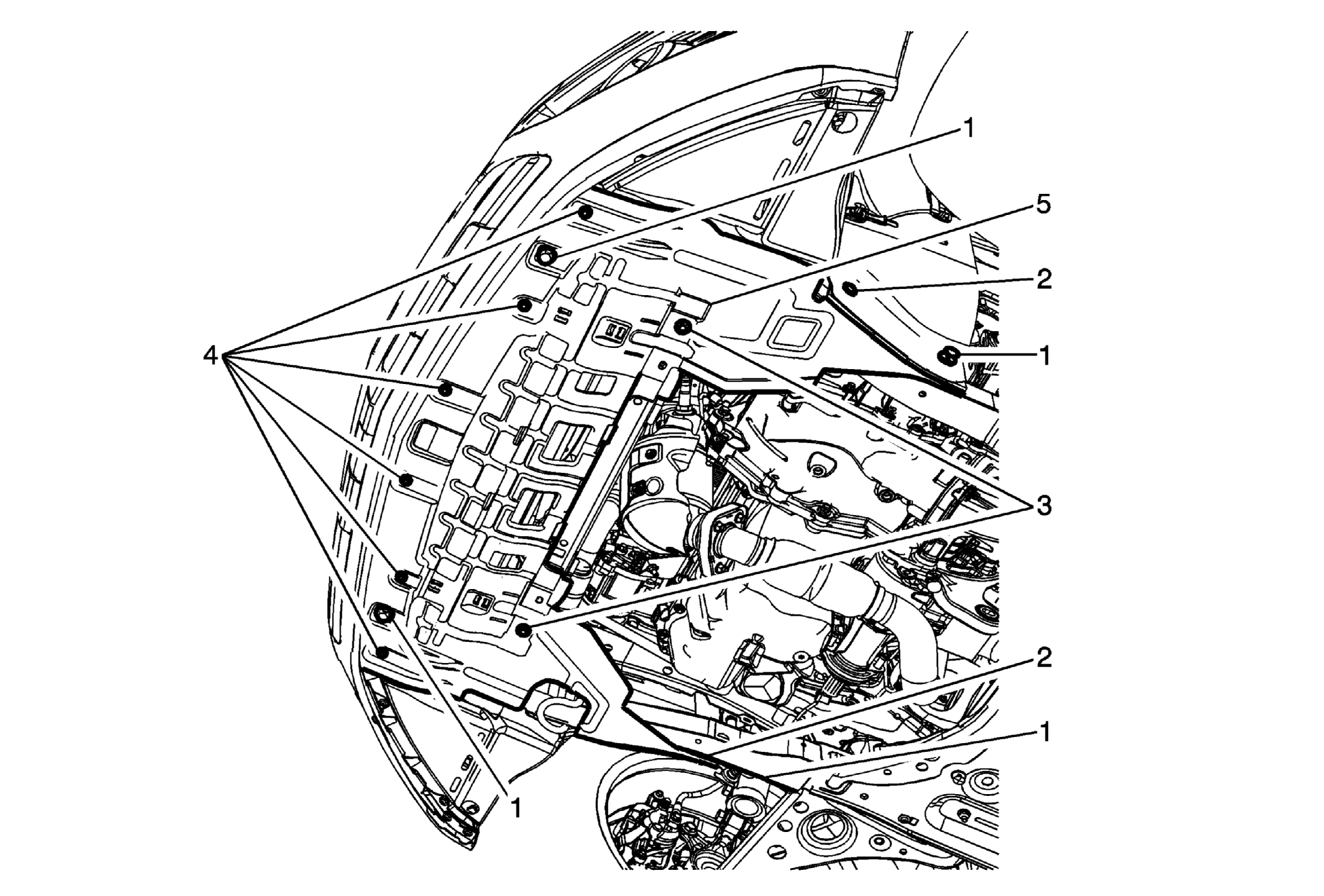

Fig 1: Front Bumper Fascia Opening Lower Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front compartment front center insulator, if equipped. Refer to Front Compartment Front Center Insulator Replacement .
1	Front Bumper Fascia Opening Lower Cover Push-In Retainer (Qty: 4)
2	Front Bumper Fascia Opening Lower Cover Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Bumper Fascia Opening Lower Cover Bolt (Qty: 2) Tighten 9 N.m (80 lb in)
4	Front Bumper Fascia Opening Lower Cover Bolt (Qty: 6) Tighten 2.5 N.m (22 lb in)
5	Front Bumper Fascia Opening Lower Cover Procedure Transfer parts as needed.
