Front Wheelhouse Liner Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

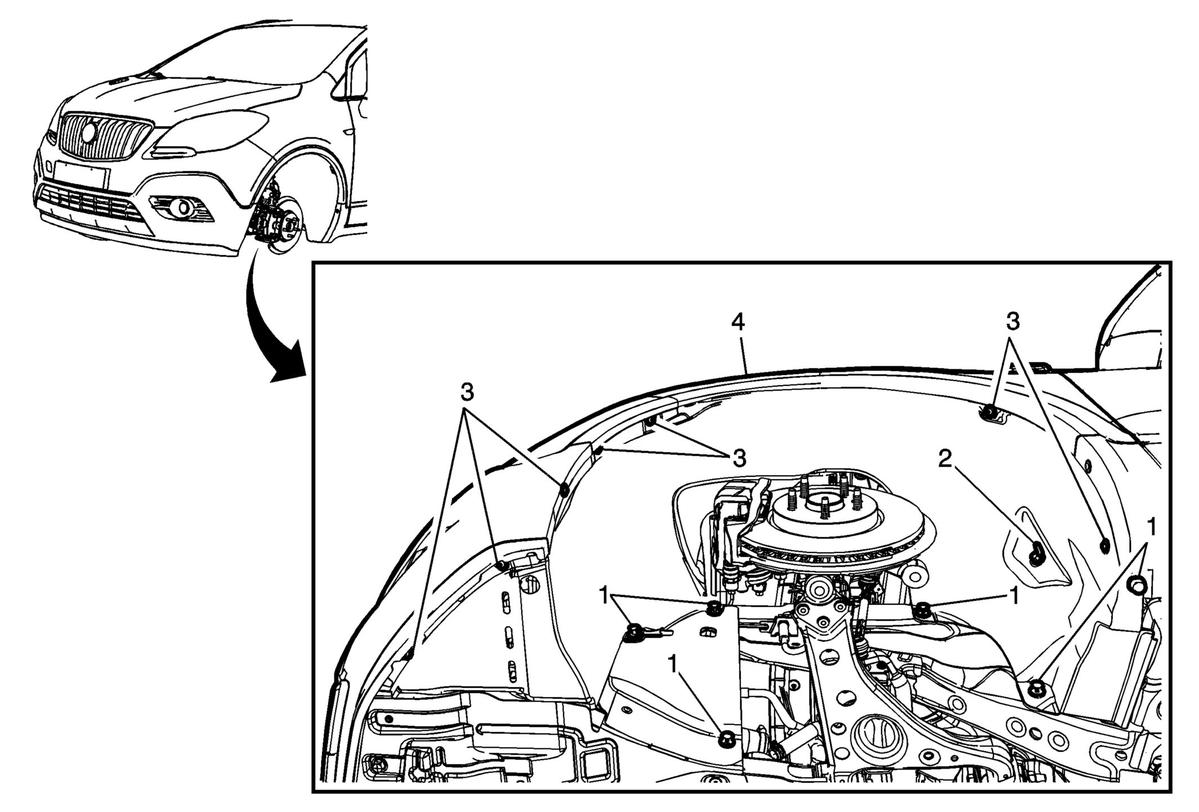

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Liner Push-In Retainer (Qty: 6) |
| 2 | Front Wheelhouse Front Liner Nut
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Front Wheelhouse Liner Screw (Qty: 8) Tighten 2.5 N.m (22 lb in) |
| 4 | Front Wheelhouse Liner |
