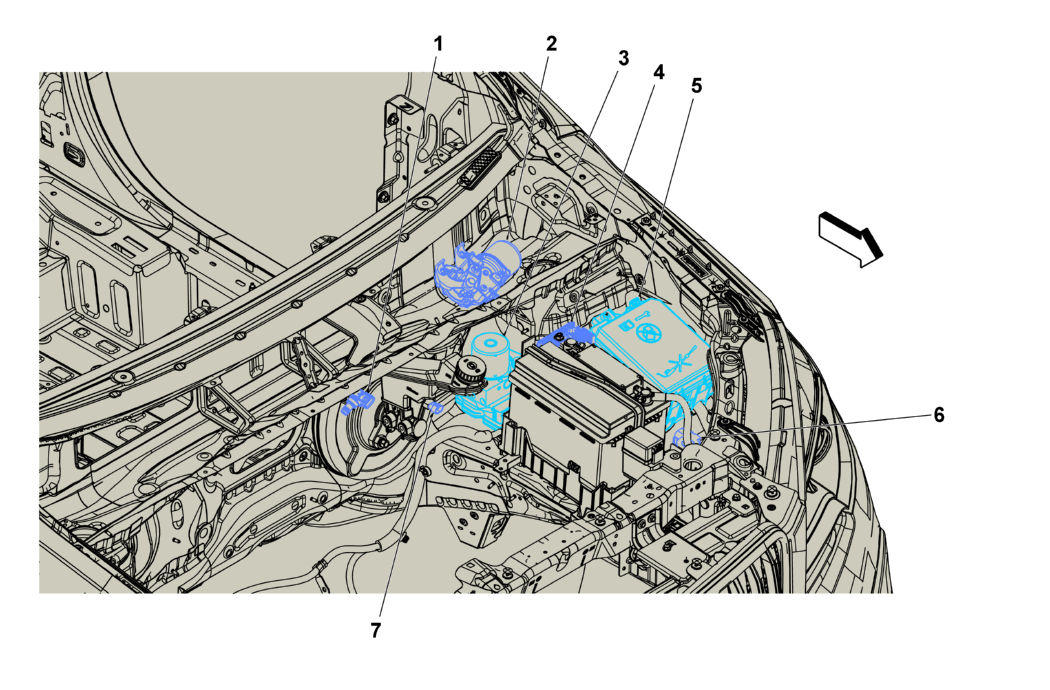

Left of Engine Compartment Components (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor |
| 2: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 3: K17 Electronic Brake Control Module K17 Electronic Brake Control Module X1K17 Electronic Brake Control Module X3 |
| 4: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 |
| 5: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X4 |
| 6: B18 Battery Current Sensor B18 Battery Current Sensor |
| 7: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
