Rear Seat Center Shoulder Belt Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

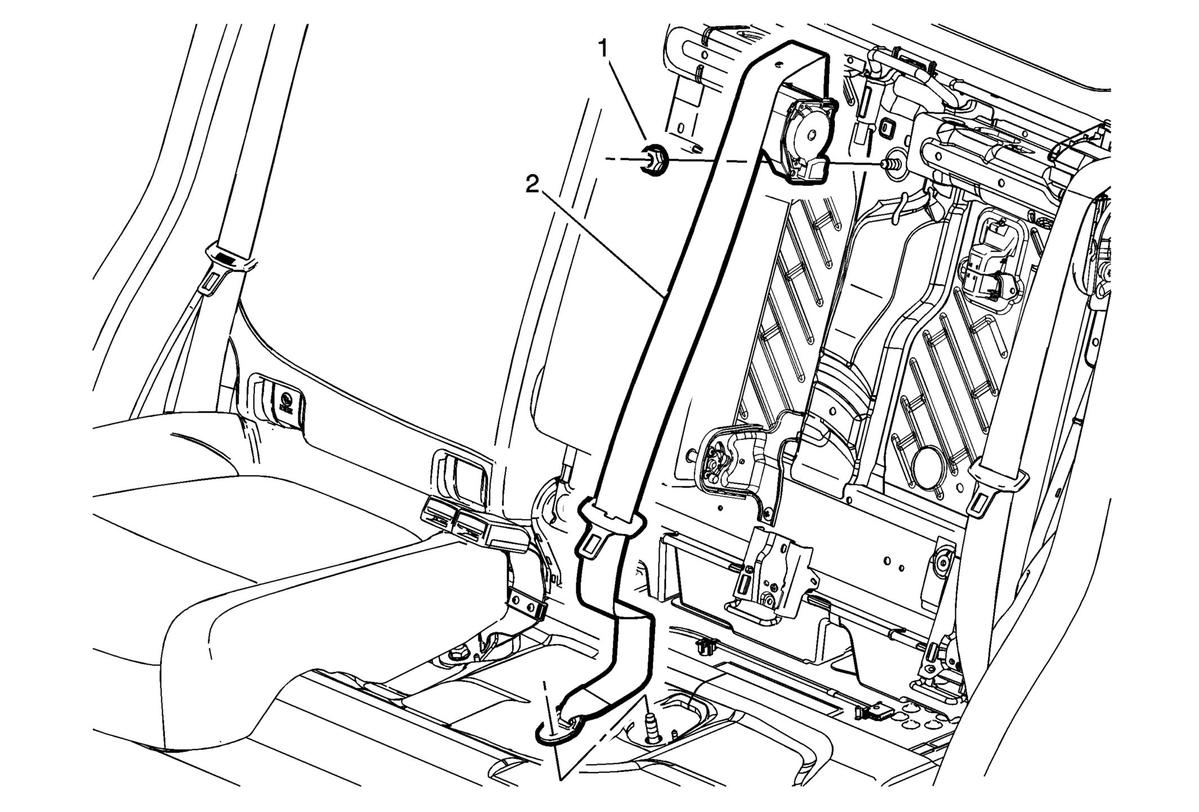

Fig 1: Rear Seat Center Shoulder Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat belt buckle (left side). Refer to Rear Seat Belt Buckle Replacement (Left) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%)Rear Seat Back Cushion Cover and Pad Replacement (40%) .
1	Rear Center Seat Belt Retractor Nut. CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Center Belt Retractor Assembly

Callout

Component Name

Preliminary Procedure

Remove the rear seat belt buckle (left side). Refer to Rear Seat Belt Buckle Replacement (Left) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%)Rear Seat Back Cushion Cover and Pad Replacement (40%) .

Rear Center Seat Belt Retractor Nut.

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Rear Seat Center Belt Retractor Assembly
