Rear Seat Belt Buckle Replacement (Left)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

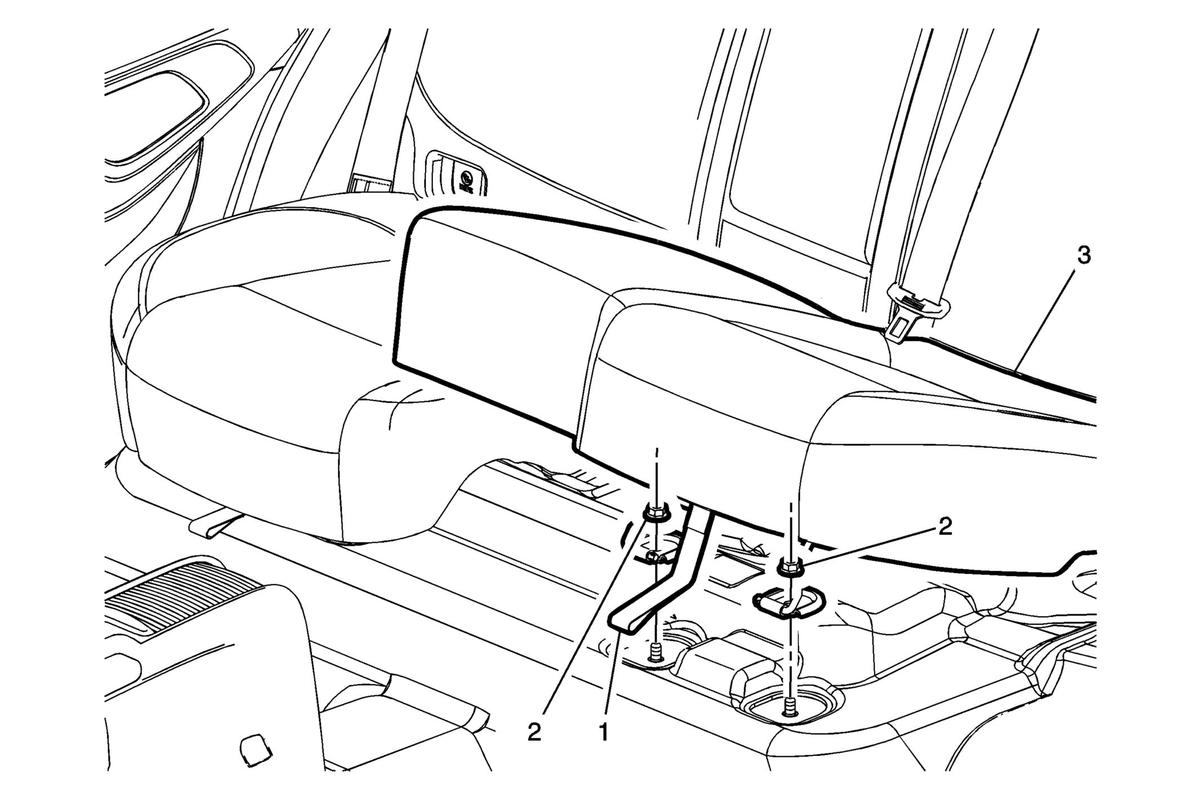

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Center Belt Nut
CAUTION:
Refer to Fastener Caution . Procedure Pull on the lower release straps to disengage the seat cushion so it can be folded into the up position to gain access to the nut. Tighten 40 N.m (30 lb ft) |
| 2 | Rear Seat Center Belt Assembly Procedure Disconnect the electrical, if equipped. |
