Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the muffler assembly. Refer to Exhaust Muffler Replacement (2H0)Exhaust Muffler Replacement (LUV) .
  3. Remove the catalytic converter front heat shield. Refer to Catalytic Converter Front Heat Shield Replacement .
    4. Fig 1: Center Bearing Bolts
    GM2770391Courtesy of GENERAL MOTORS COMPANY
  4. Remove the 2 center bearing bolts (1).

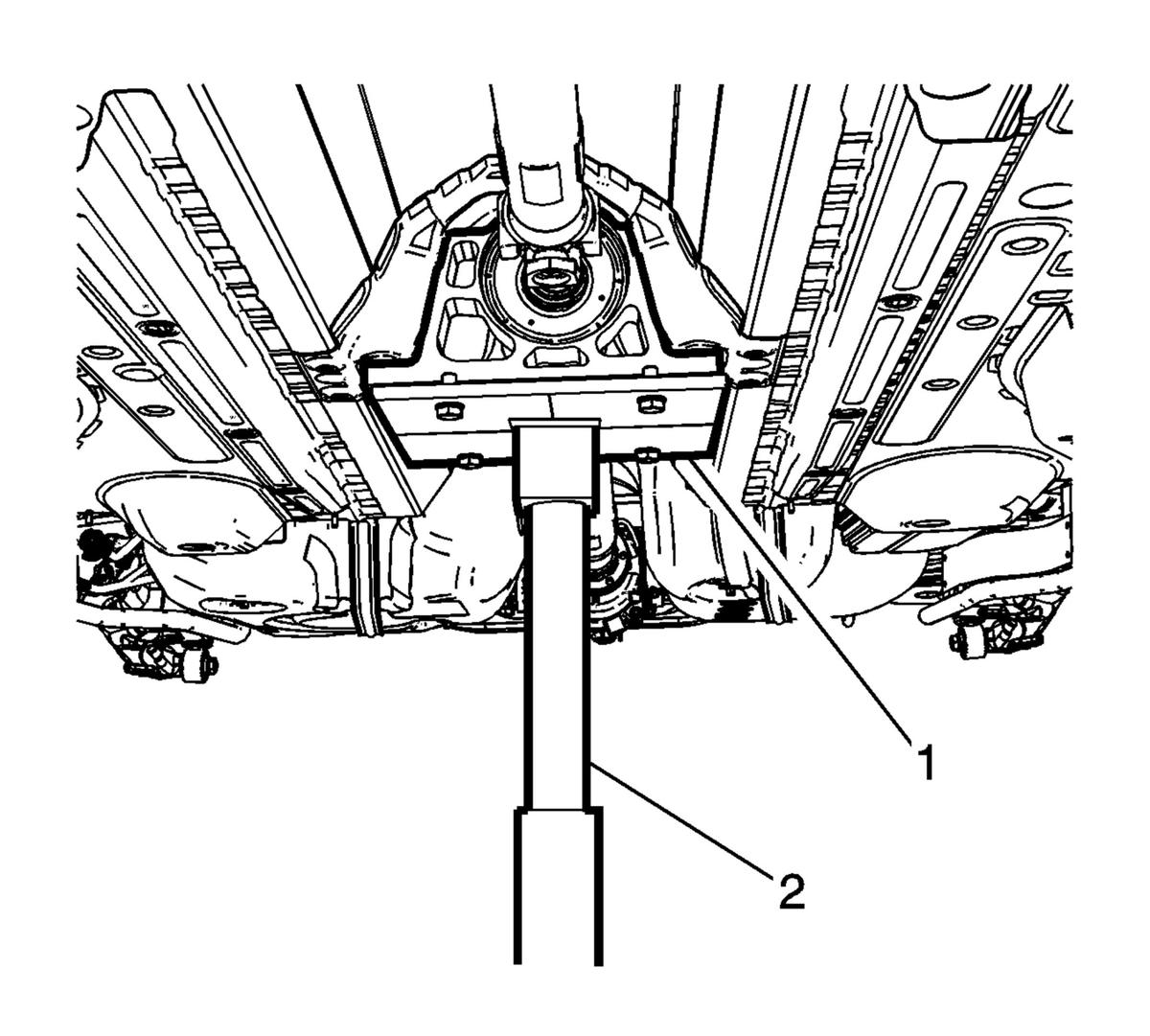

    5. Fig 2: Supporting Propeller Shaft
    GM2788163Courtesy of GENERAL MOTORS COMPANY
  5. Using a hydraulic jack (2), support the propeller shaft at the center bearing (1).
    6. Fig 3: Rear Propeller Shaft Bolts And Washers
    GM2770341Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 6 rear propeller shaft bolts (1) and the 3 washers from the differential clutch flange.

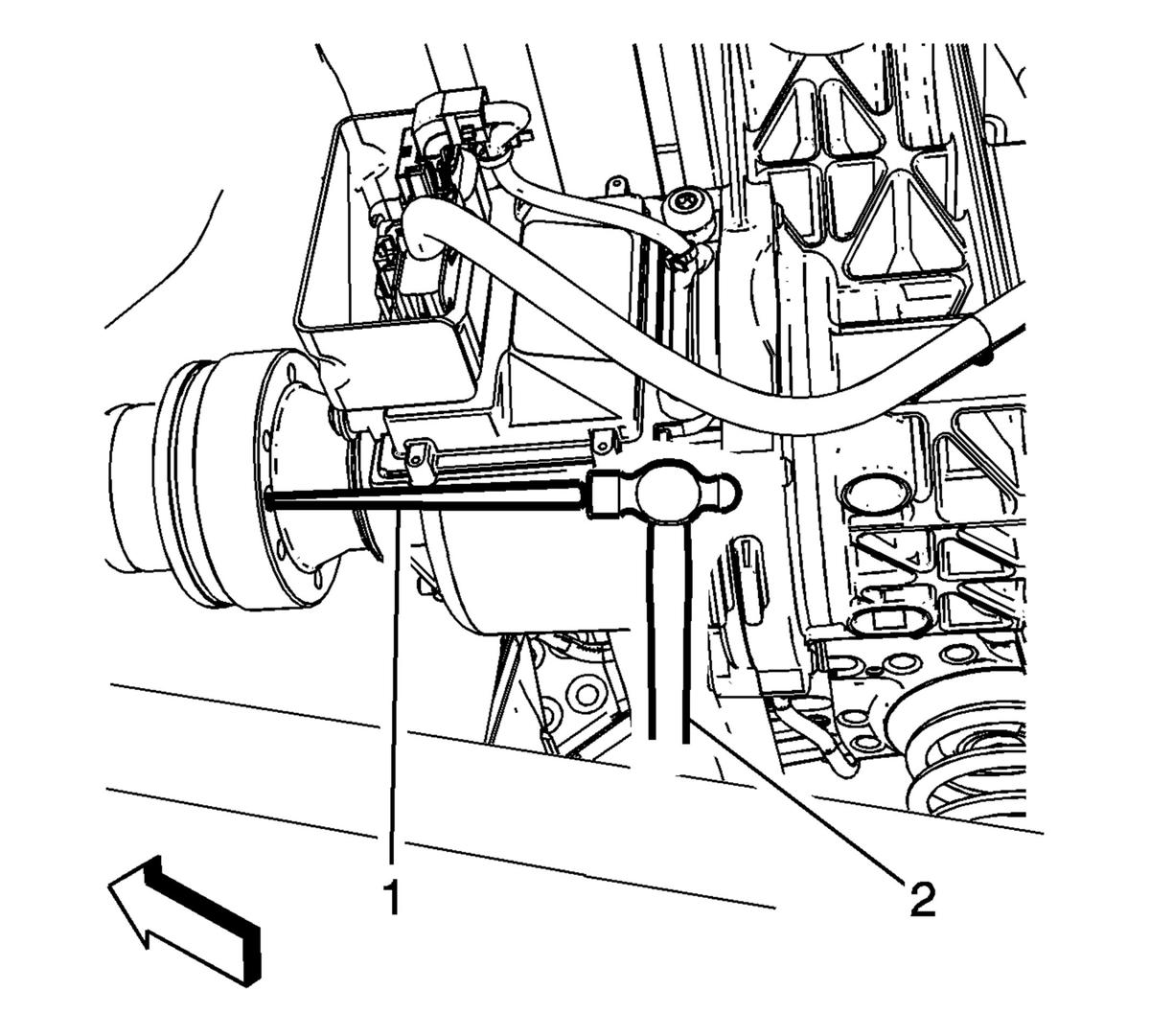

    7. Fig 4: Removing Propeller Shaft Using Hammer And Punch
    GM2787584Courtesy of GENERAL MOTORS COMPANY
  7. It may be necessary to use a punch (1) and the hammer (2) to remove the propeller shaft from the differential clutch flange.
    8. Fig 5: Front Propeller Shaft Bolts
    GM2770369Courtesy of GENERAL MOTORS COMPANY
  8. Remove the 6 front propeller shaft bolts (1) and the 3 washers from the front differential pinion flange.
    9. Fig 6: Propeller Shaft
    GM2770421Courtesy of GENERAL MOTORS COMPANY
  9. Remove the propeller shaft (1) from the vehicle.
