Catalytic Converter Front Heat Shield Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

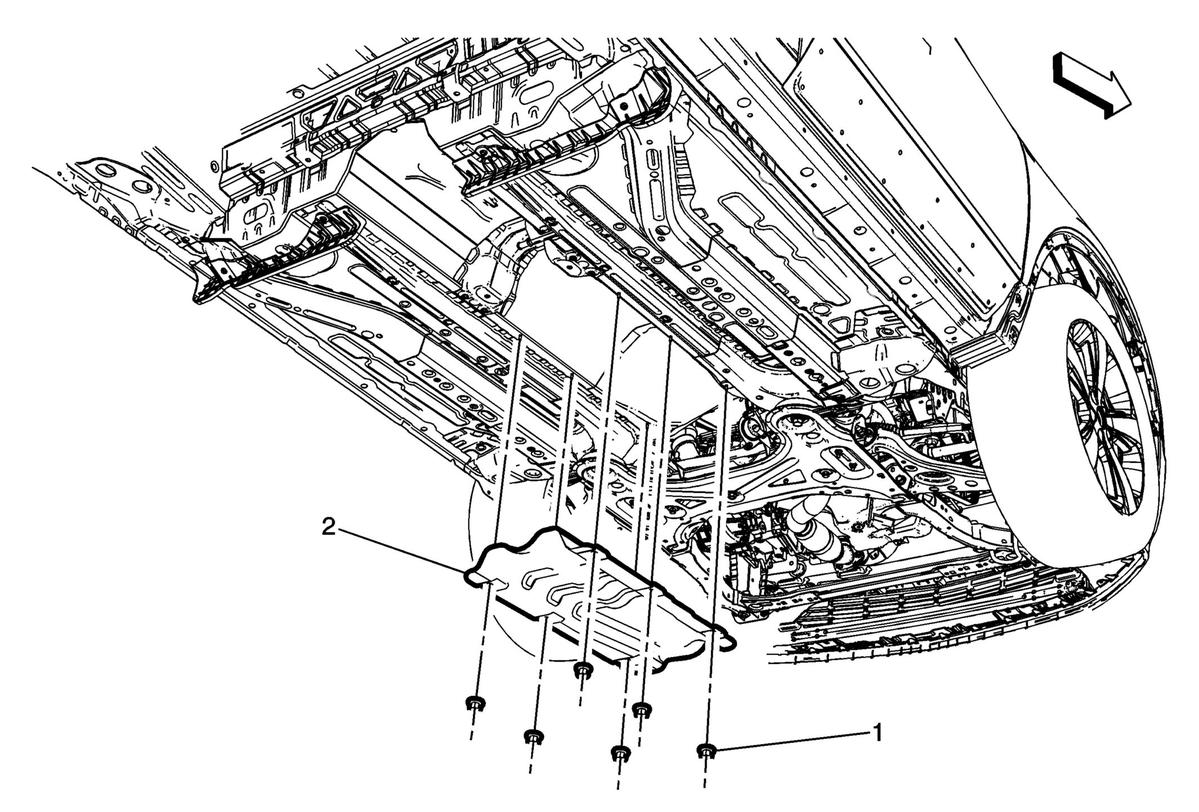

Fig 1: Catalytic Converter Front Heat Shield
GM2781304Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Exhaust Service Warning .

WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Catalytic Converter Front Heat Shield Fastener <p01>
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (26 lb in)
2 Catalytic Converter Front Heat Shield
