Exhaust Muffler Replacement (LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

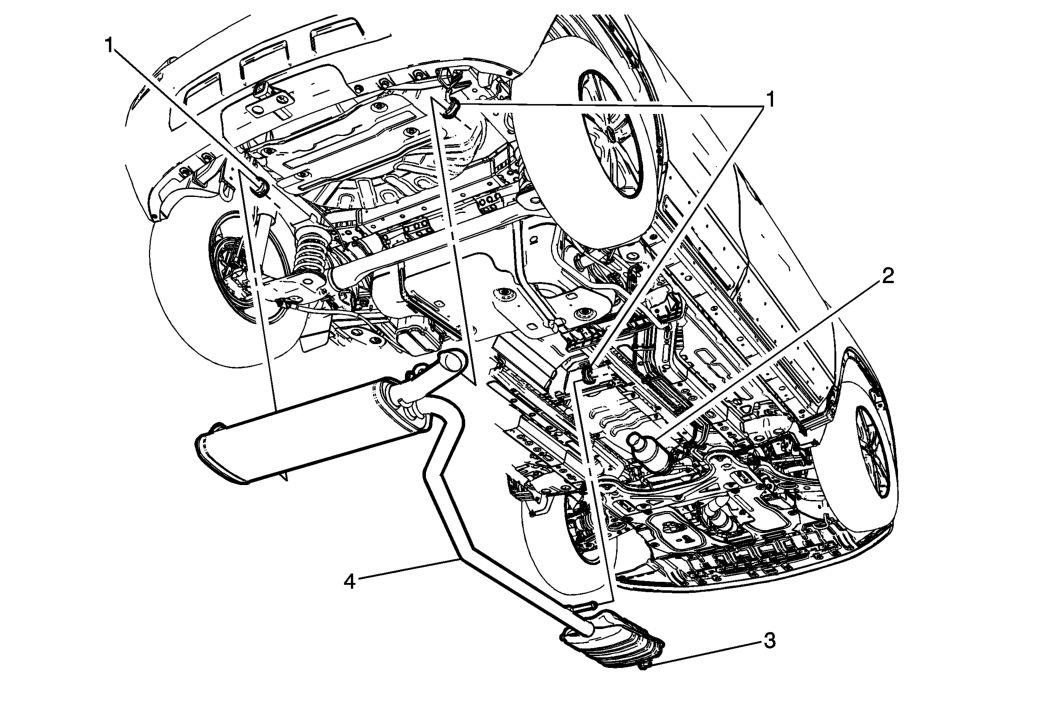

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Isolators
NOTE:
Clean and lubricate the exhaust isolator rods for ease of installation. |
| 2 | Warm Up 3 Way Catalytic Converter |
| 3 | Exhaust Muffler Clamp
CAUTION:
Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft) |
| 4 | Exhaust Muffler Procedure With the aid of an assistant, lower the exhaust system from the vehicle. |
