Front Bumper Energy Absorber Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

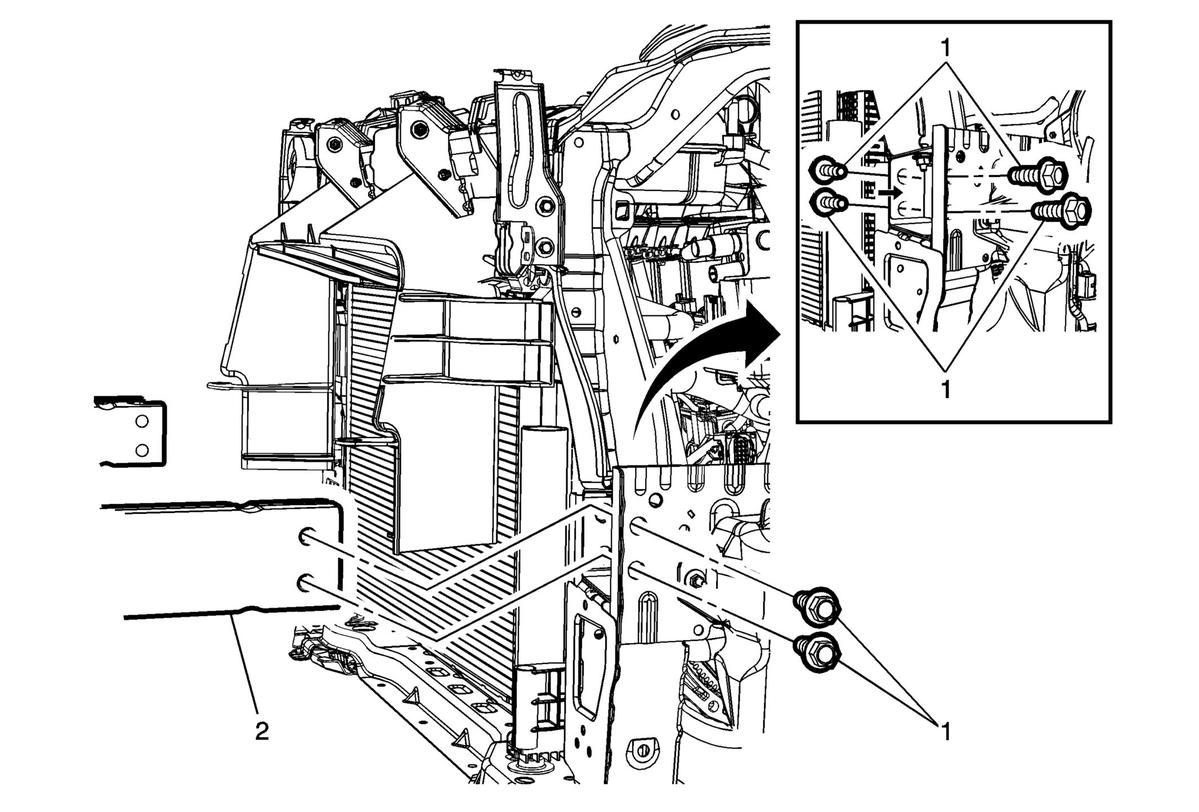

Fig 1: Front Bumper Energy Absorber

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) Front Bumper Fascia Replacement (Encore) Reposition the radiator from the front bumper impact inner bar bolts. Refer to Radiator Upper Bracket Replacement (2H0)Radiator Upper Bracket Replacement (LUJ, LUV) .
1	Front Bumper Impact Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . NOTE: Use only the original front bumper energy absorber bracket bolts. Replace bolts if damaged. Tighten 32 N.m (24 lb ft)
2	Front Bumper Energy Absorber

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) Front Bumper Fascia Replacement (Encore)
Reposition the radiator from the front bumper impact inner bar bolts. Refer to Radiator Upper Bracket Replacement (2H0)Radiator Upper Bracket Replacement (LUJ, LUV) .

Front Bumper Impact Bar Bolt (Qty: 8)

CAUTION:

Refer to Fastener Caution .

NOTE:

Use only the original front bumper energy absorber bracket bolts. Replace bolts if damaged.

Tighten
32 N.m (24 lb ft)

Front Bumper Energy Absorber
