Radiator Surge Tank Outlet Hose Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

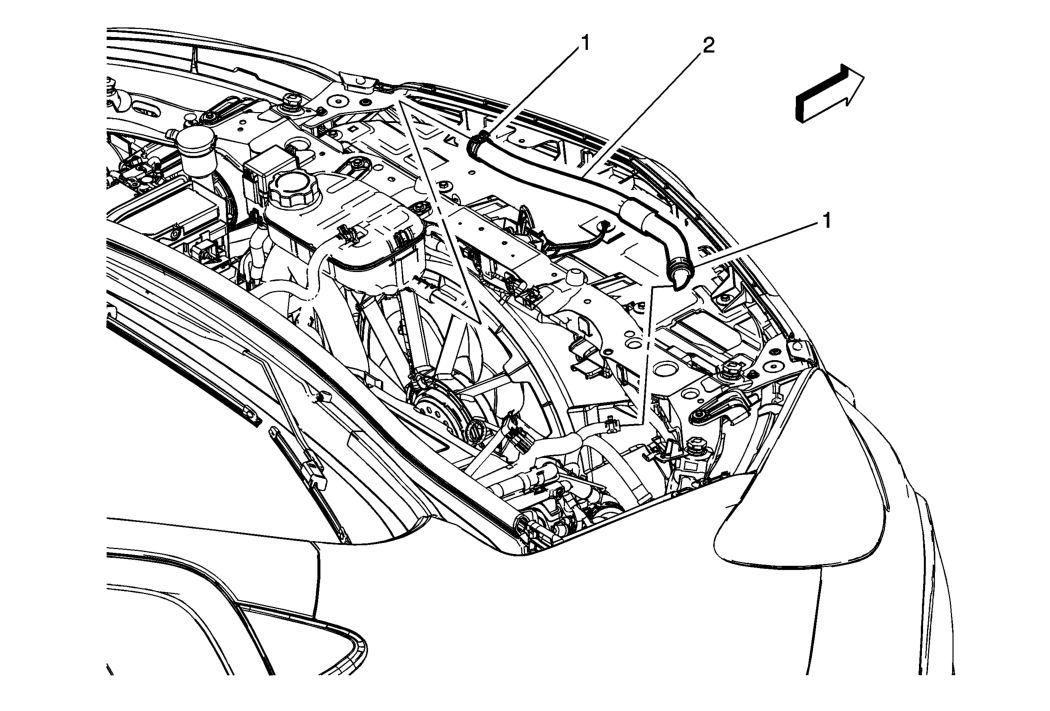

Fig 1: Radiator Surge Tank Outlet Hose (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling . Remove the air cleaner inlet duct assembly. Refer to Air Cleaner Inlet Duct Replacement .
1	Radiator Surge Tank Outlet Hose Clamp (Qty: 2) Special Tools BO-38185 Hose Clamp Pliers. For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Outlet Hose

Callout

Component Name

Preliminary Procedure

Drain the coolant. Refer to Cooling System Draining and Filling .
Remove the air cleaner inlet duct assembly. Refer to Air Cleaner Inlet Duct Replacement .

Radiator Surge Tank Outlet Hose Clamp (Qty: 2)
Special Tools
BO-38185 Hose Clamp Pliers.
For equivalent regional tools, refer to Special Tools .

Radiator Surge Tank Outlet Hose
