Air Conditioning Compressor Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

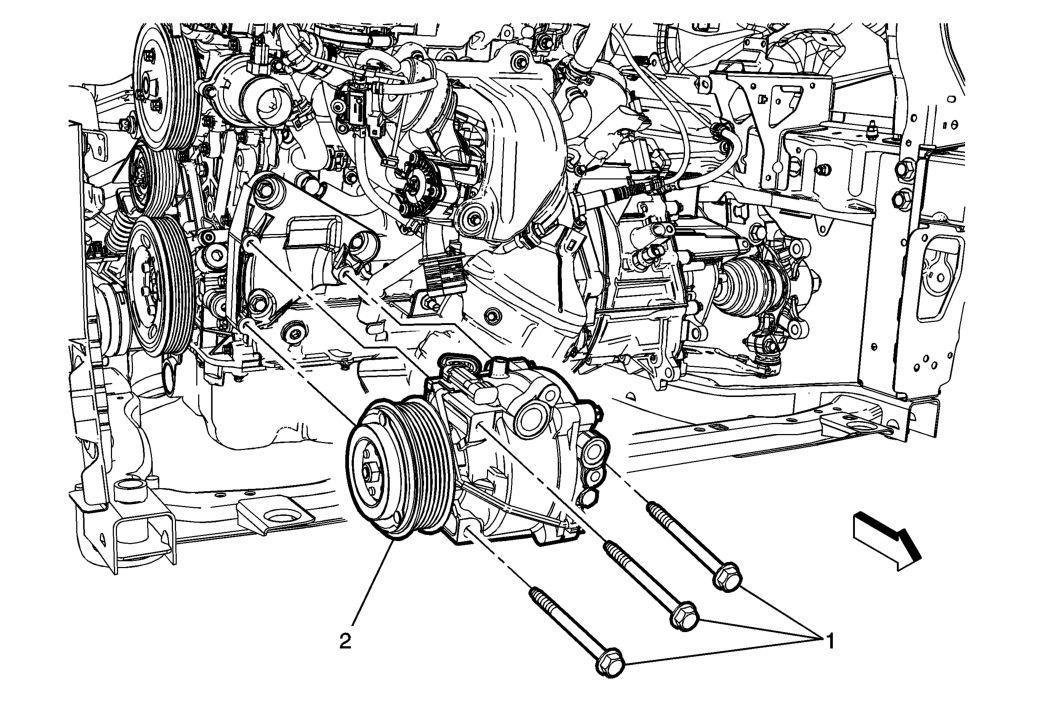

Fig 1: Air Conditioning Compressor (LUV)
GM2790946Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement (Trax) .
  4. Remove the engine drive belt from the A/C compressor only, unless the belt is damaged. . Refer to Drive Belt Replacement .
  5. Remove the air conditioning compressor hose from the air conditioning compressor assembly and position the hose out of the way. Refer to Air Conditioning Compressor Hose Replacement (LUV) .
  6. Remove the air conditioning condenser hose from the compressor assembly and position the hose out of the way. Refer to Air Conditioning Condenser Hose Replacement (LUV) .
  7. Disconnect the electrical connector.
1 Air Conditioning Compressor Bolts (Qty :3)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor
Procedure
When replacing the A/C compressor, balance the compressor oil. Refer to Air Conditioning Compressor Oil Balancing
