Removal Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Air Conditioning Compressor Replacement (LUV) - Reposition
- Air Conditioning Compressor Bracket Replacement (LUV) - Remove
- Drain the coolant. Cooling System Draining and Filling

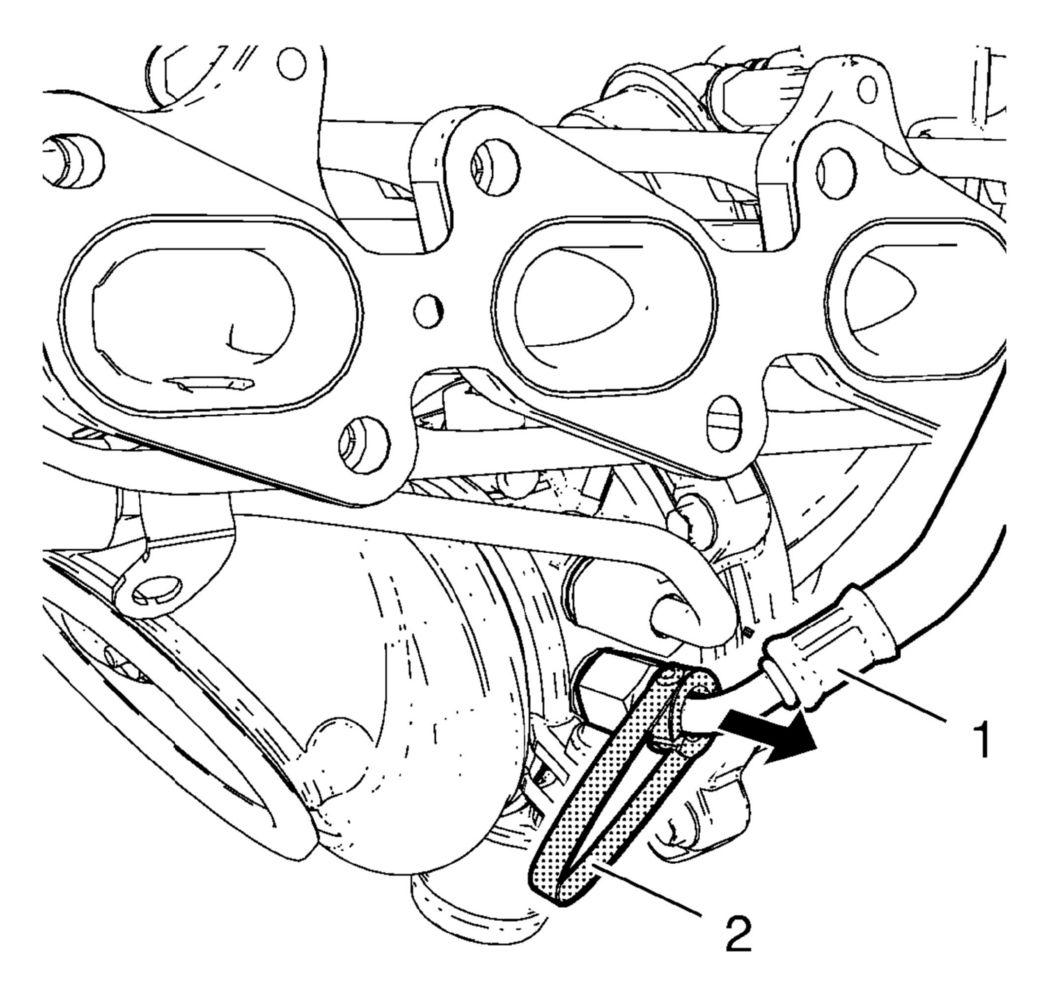

- Install the EN-49940 remover (2) to the turbocharger coolant feed pipe (1) and the quick fitting connector as shown.
- Compress the EN-49940 remover and remove the turbocharger coolant feed pipe direction of the arrow.
- Remove the quick fitting connector (2) and the seal ring (1).
NOTE:
Leave the refrigerant lines attached and reposition the air conditioning compressor to gain access. It is not necessary to recover the refrigerant.
NOTE:
The quick fitting connectors should be always replaced when the turbocharger coolant pipes are removed.
