Air Conditioning Compressor Bracket Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

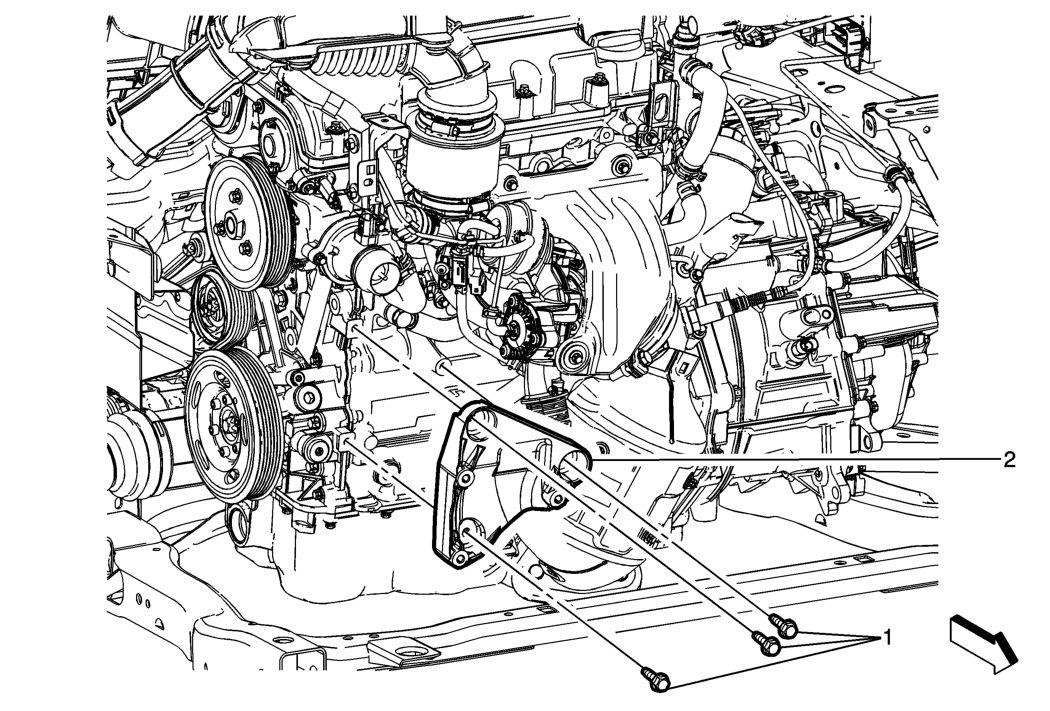

Fig 1: Air Conditioning Compressor Bracket (LUV)
GM2790949Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LUV) .
1 Air Conditioning Compressor Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Bracket
