Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

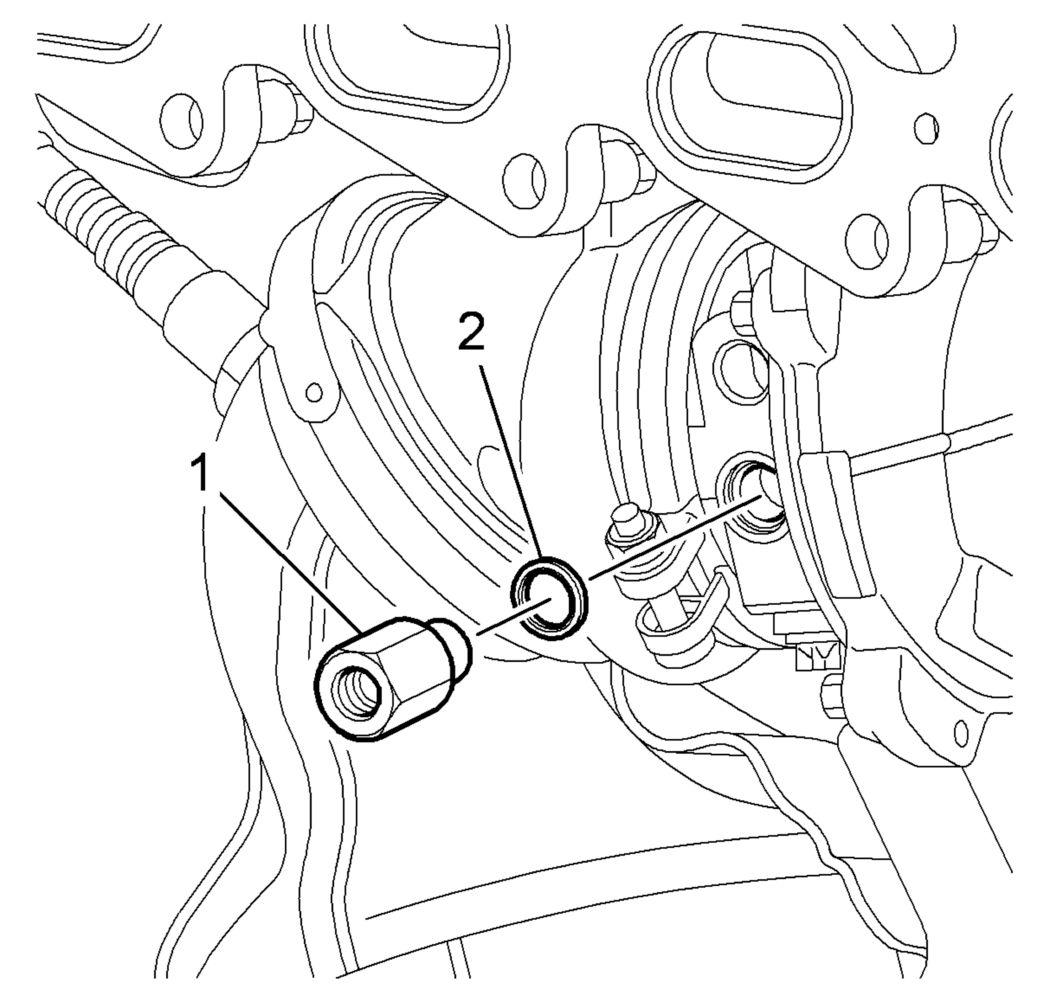

    Fig 1: Quick Fitting Connector And Seal Ring
    GM2342506Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the NEW quick fitting connector (2) and a NEW quick fitting connector seal ring (1) to the turbocharger and tighten to 20 N.m (15 lb ft).

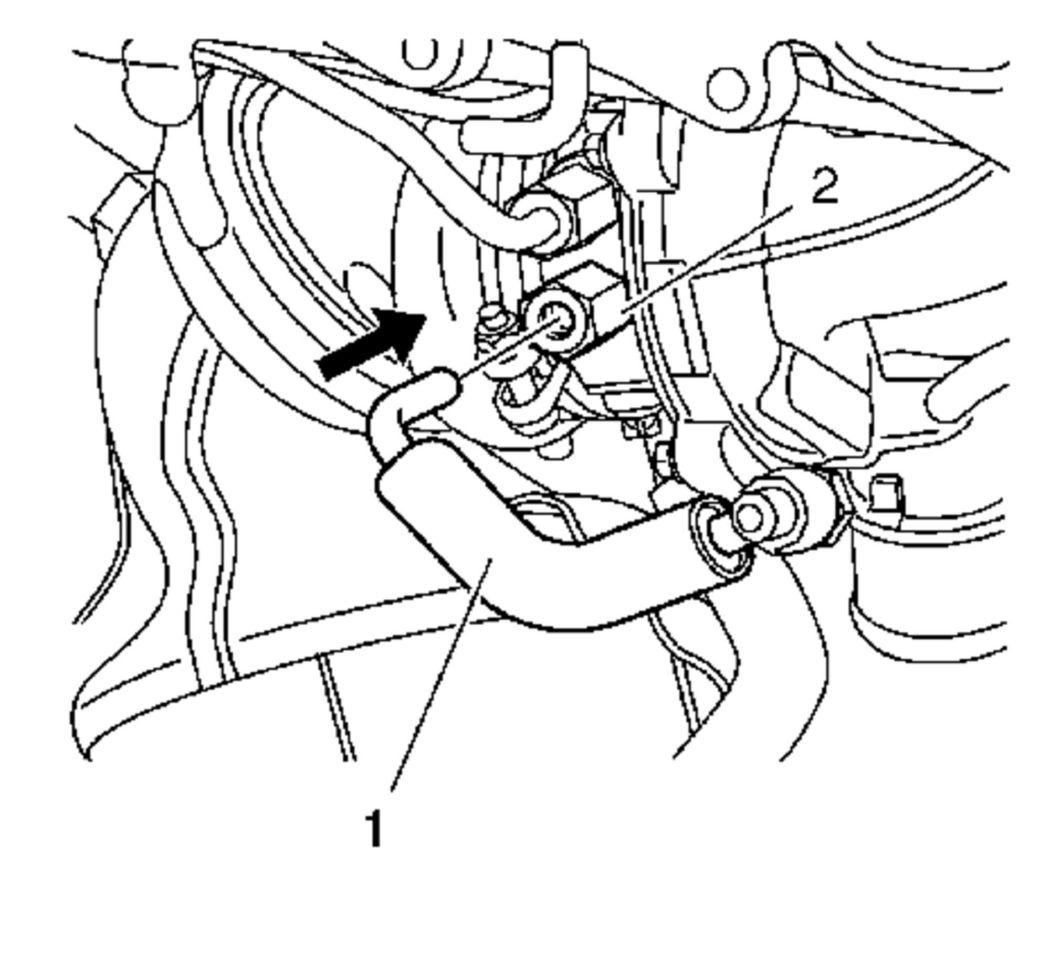

    2. Fig 2: Turbocharger Coolant Feed Pipe
    GM2213085Courtesy of GENERAL MOTORS COMPANY
  2. Install the turbocharger coolant feed pipe (1) to the quick fitting connector (2) by pushing in direction of the arrow until it engages audible.
  3. Air Conditioning Compressor Bracket Replacement (LUV) - Install
  4. Air Conditioning Compressor Replacement (LUV) - Install
  5. Cooling System Draining and Filling  - Fill
