Special Tools

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Illustration	Tool Number/Description

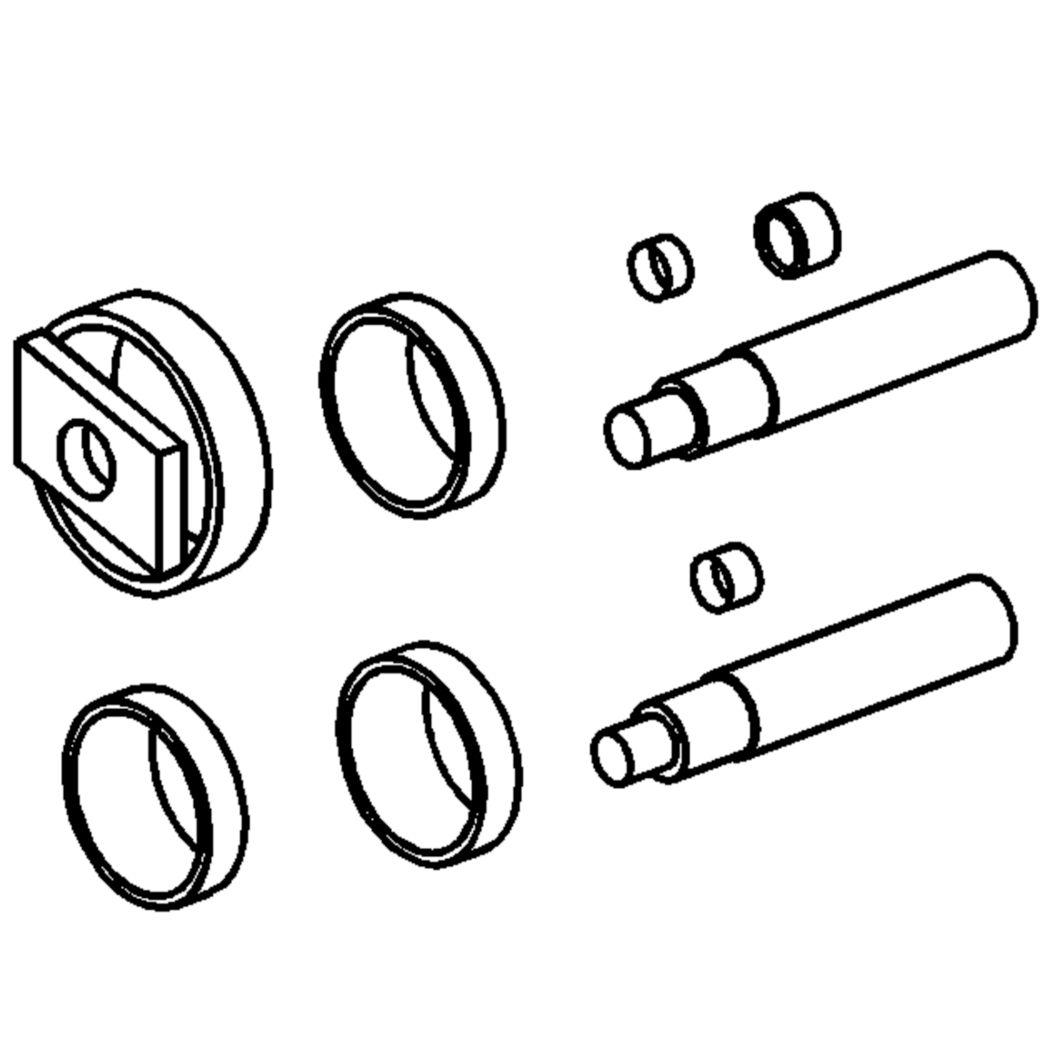

	CH-807 KM-807 Plugs

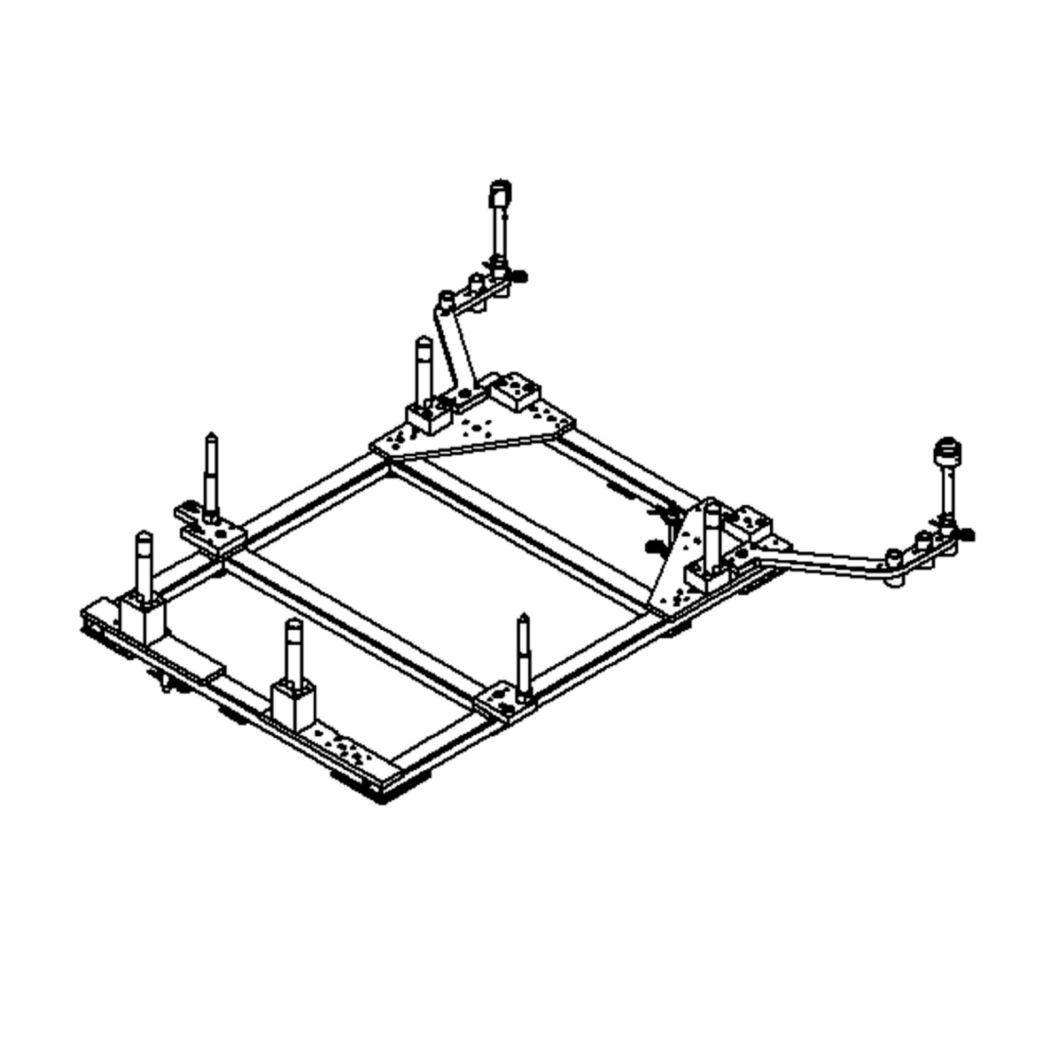

	CH-904 Base Frame
	CH-49289 Centering Frame
	CH-49290 Engine Support Tool
	EN-194-E KM-194-E Spark Plug Key
	EN-235-D KM-235-D Seal Installer Kit
	EN-301 KM-301 Measuring Bridge
	EN-328-B KM-328-B GE-23907-1 J-23907-1
	EN-498-B KM-498-B Pressure Gauge
	GE-571-B MKM-571-B Dial Gauge
	EN-652 DT-652 KM-652 Flywheel Holder
	EN-658 KM-658 J-35264 Installer
	EN-663 KM-663 Installer
	EN-796-A KM-796-A Remover Quick Fitting
	EN-840 KM-840 Pliers / Remover
	EN-849 KM-849 Assembly Tray
	EN-952 KM-952 Fixing Tool Crankshaft
	EN-953-A KM-953-A Fixing Tool Camshaft
	EN-955 KM-955 Locking Pins
	EN-956-1 KM-956-1 Extension
	EN-960 KM-960 Installer
	EN-6015 KM-6015 Closure Plugs
	EN-45000 KM-J45000 J-45000 Remover Oil Seal
	EN-45059 J-45059 KM-470-B Angle Meter
	EN-6009 KM-6009 Remover / Installer
	EN-6086 MKM-6086 Basic Kit, Spring and Wedge Replacer
	EN-6167 KM-6167 Adapter Kit
	EN-6171 KM-6171 Release Tool
	EN-6179 KM-6179 Installer / Remover
	EN-6215 KM-6215 Mounting Equipment
	EN-6624 KM-6624 GE-36825-A J-36825-A
	EN-34730-91 KM-34730-91 J-34730-91 Pressure Tester
	EN-36857 Engine Lift Bracket to Tool Table
	EN-48248 Cylinder Compression Pressure Gauge
	EN-48488 KM-956 Holding Wrench
	EN-49940 Remover Quick Connector
	EN-49941 Remover / Installer Piston Retainer Ring
	EN-49942 Holding Wrench
	EN-49977-100 Fixation Sensor Disks and Camshafts
	EN-49977-200 Fixing Tool
	EN-49979 Retainer Shock Mount Crankshaft
	EN-49980 Guidance Pins Oil Pan
	EN-28467-518 Engine Bridge
	EN-47650 Retainer Frame
	EN-47650-300 Adapter
	EN-47650-200 Front Adapter
	GE-571-B MKM-571-B Dial Gauge
