Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

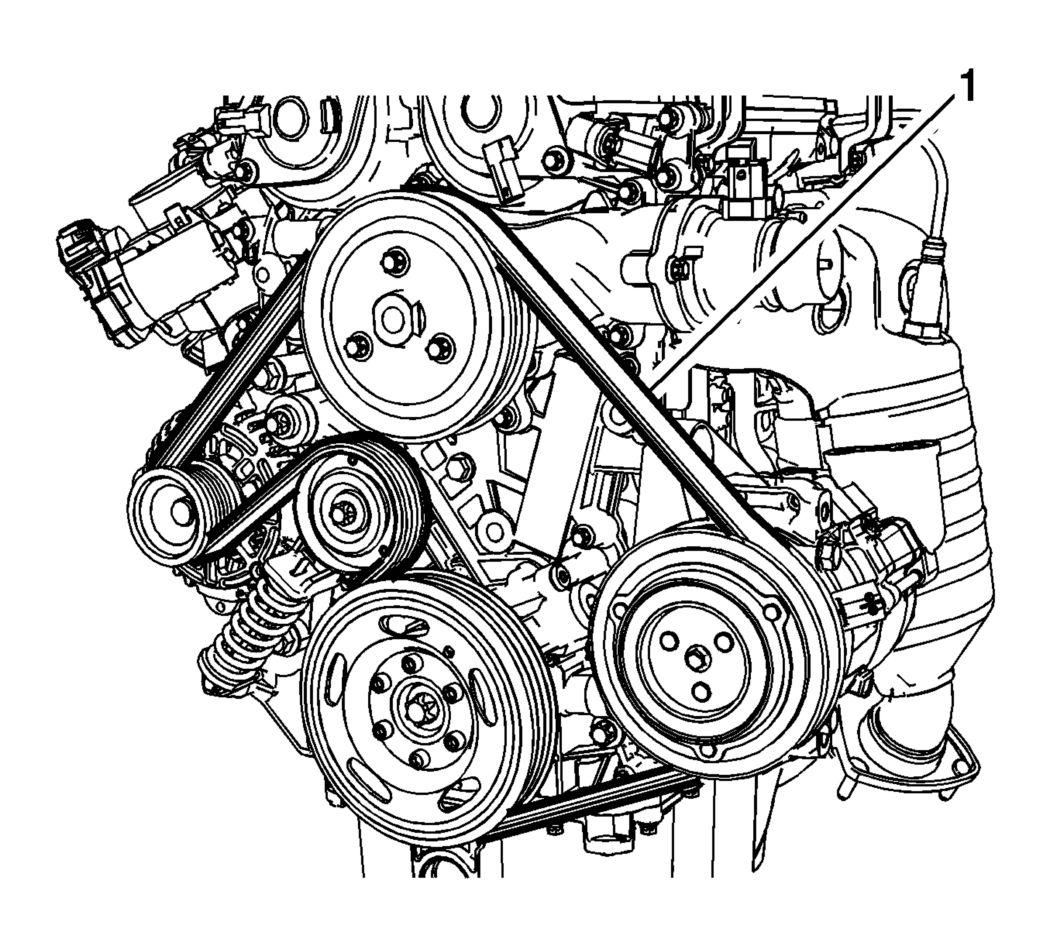

- Install the drive belt (1).

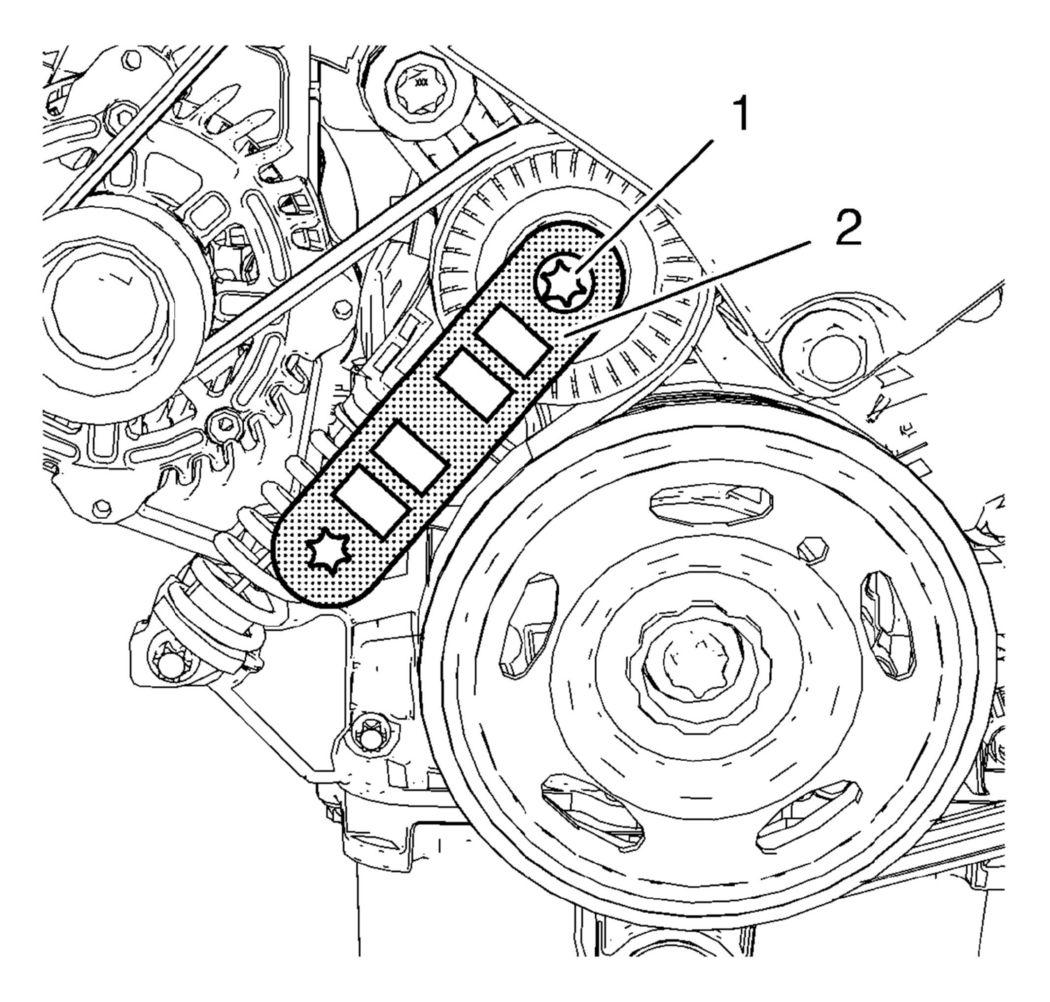

- Install the EN-48488 holding wrench (2) to the drive belt tensioner (1).

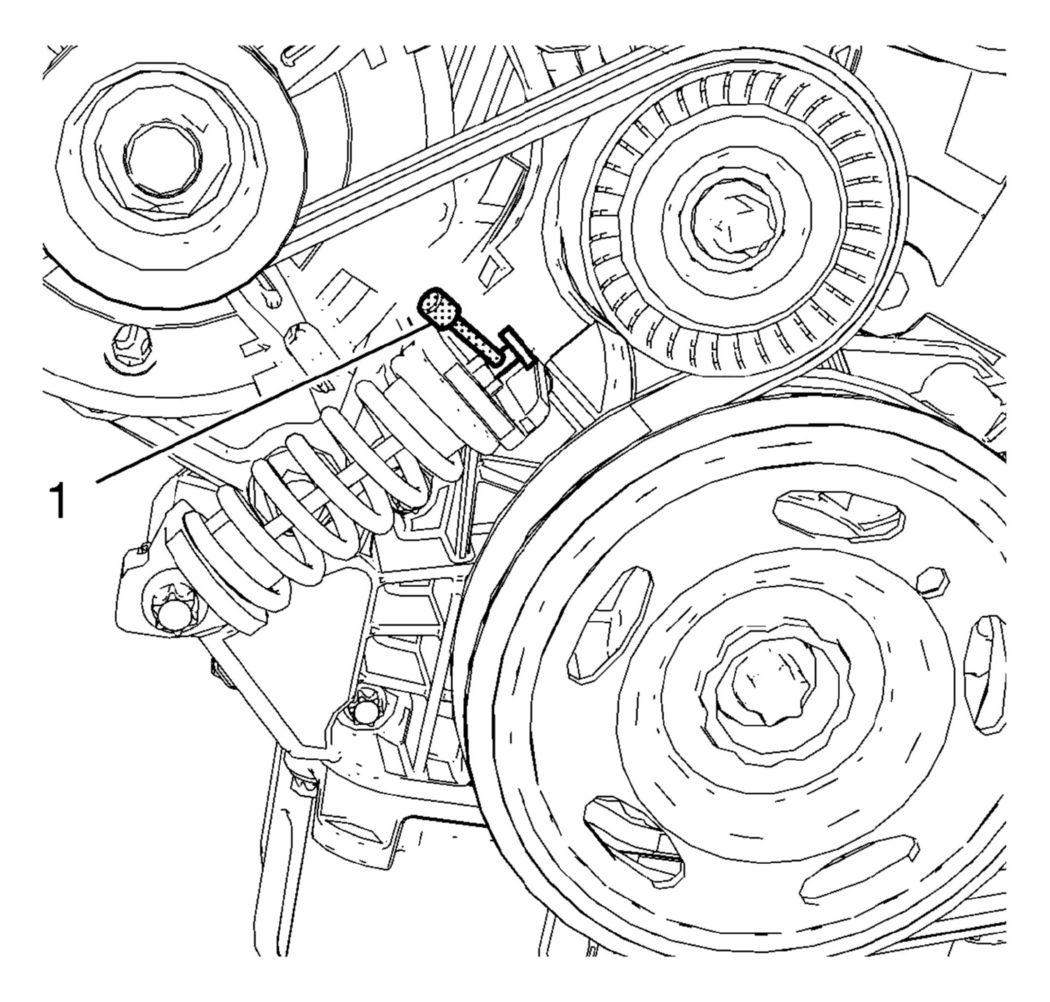

- Move the drive belt tensioner clockwise until EN-955 locking pin (1) can be removed.
- Allow the tensioner to slide back slowly.
- Remove the EN-48488 holding wrench.
- Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Chevrolet)Front Wheelhouse Liner Replacement (Buick)
- Install the engine mount. Refer to Engine Mount Replacement - Right Side .
- Remove the engine support fixture. Refer to Engine Support Fixture .
