Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement (Encore) .
  2. Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Encore) .
  3. Remove the instrument panel upper compartment. Refer to Instrument Panel Upper Compartment Replacement (Encore) .
  4. Remove the radio control. Refer to Radio Control Assembly Replacement (Encore) .
  5. Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement (Encore) .

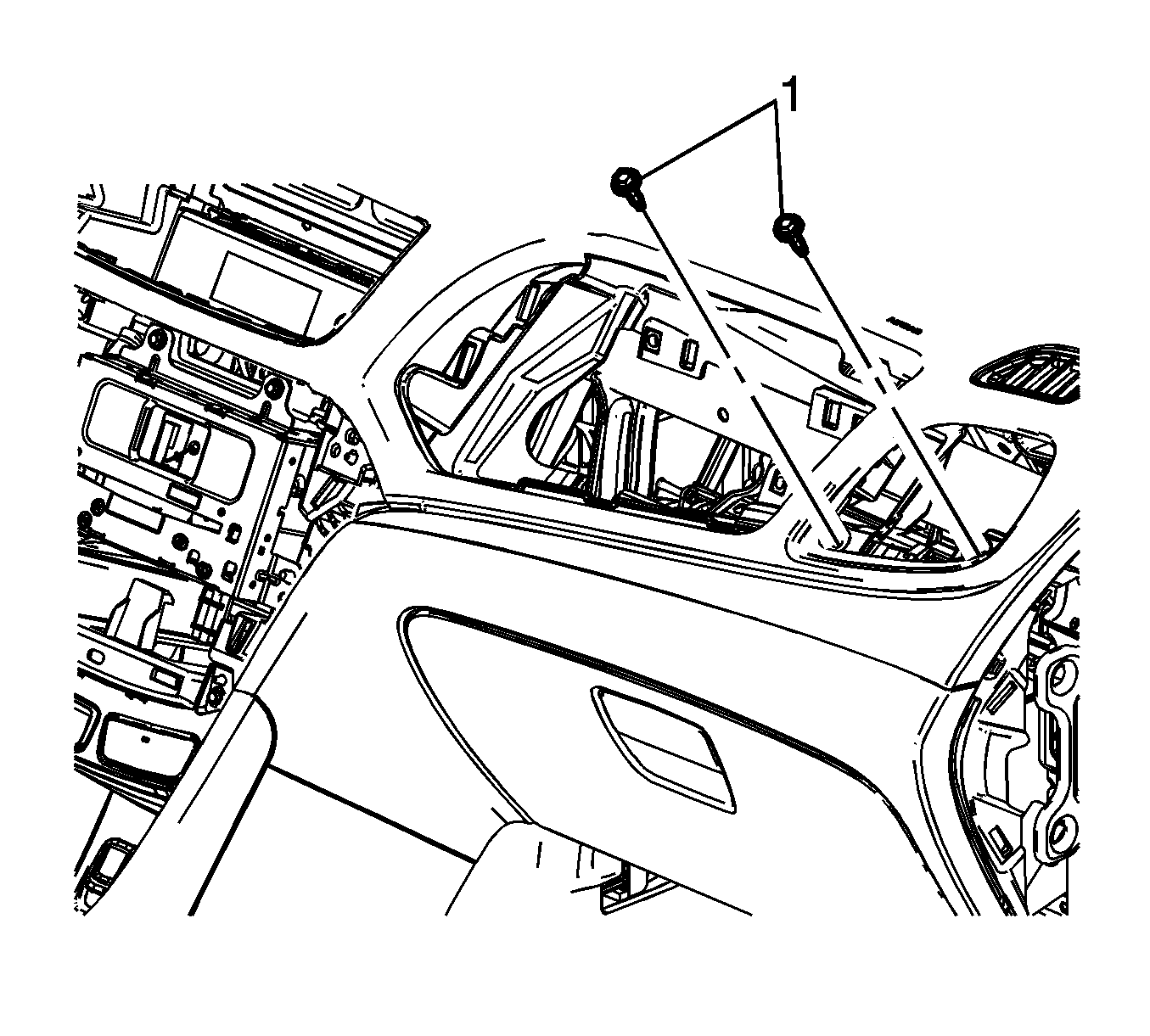

    6. Fig 1: Instrument Panel Upper Trim Panel
    GM2857557Courtesy of GENERAL MOTORS COMPANY
  6. Remove the bolts (1) to loosen the instrument panel upper trim panel.

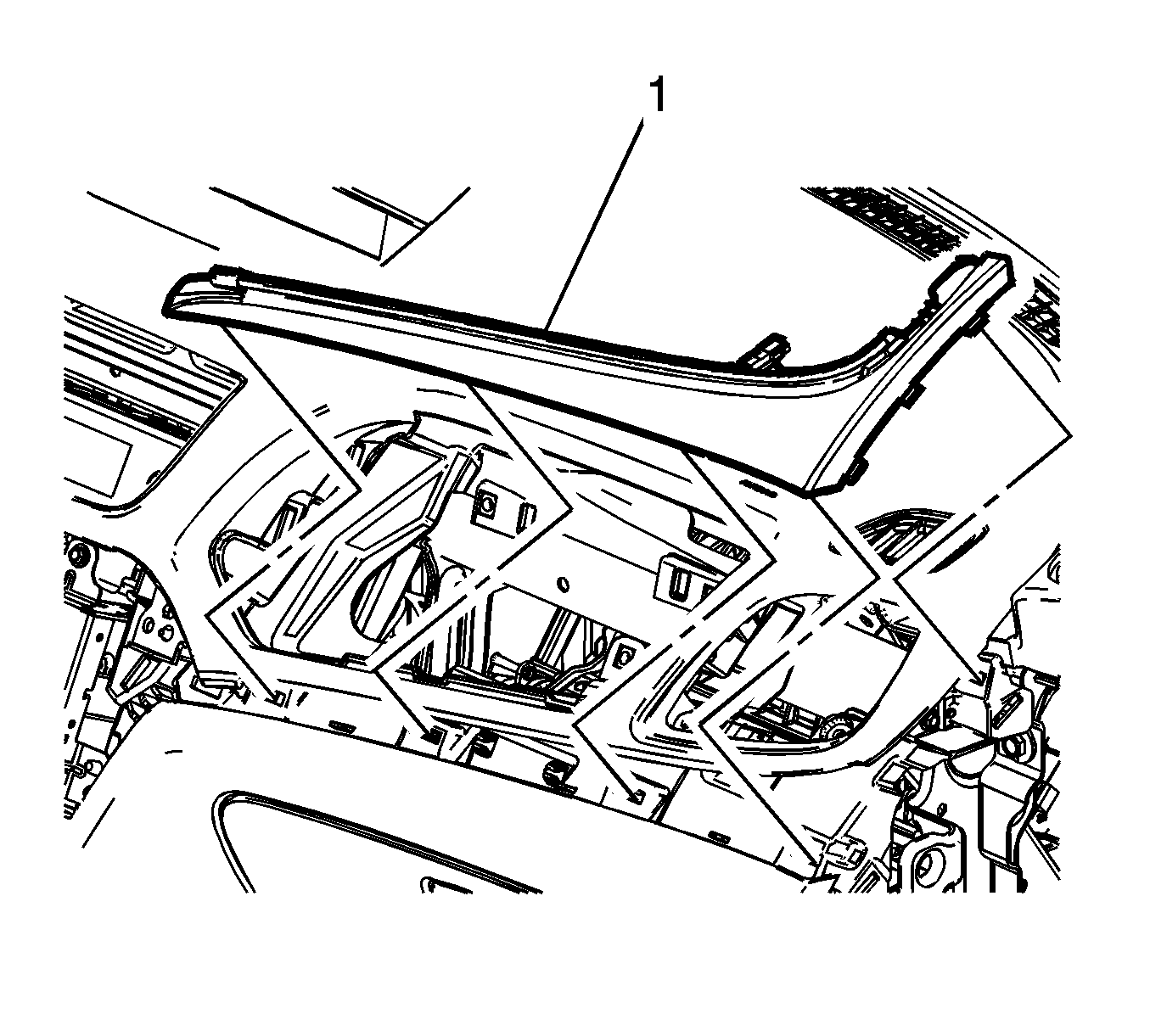

    7. Fig 2: Right Instrument Panel Retainer
    GM2857559Courtesy of GENERAL MOTORS COMPANY
  7. Use a flat bladed plastic trim tool to aid in the removal of the right instrument panel retainer (1) from the instrument panel assembly.
  8. Disconnect the electrical connection.
  9. Carefully lift up the instrument panel upper trim panel enough to remove the instrument panel retainer (1).
